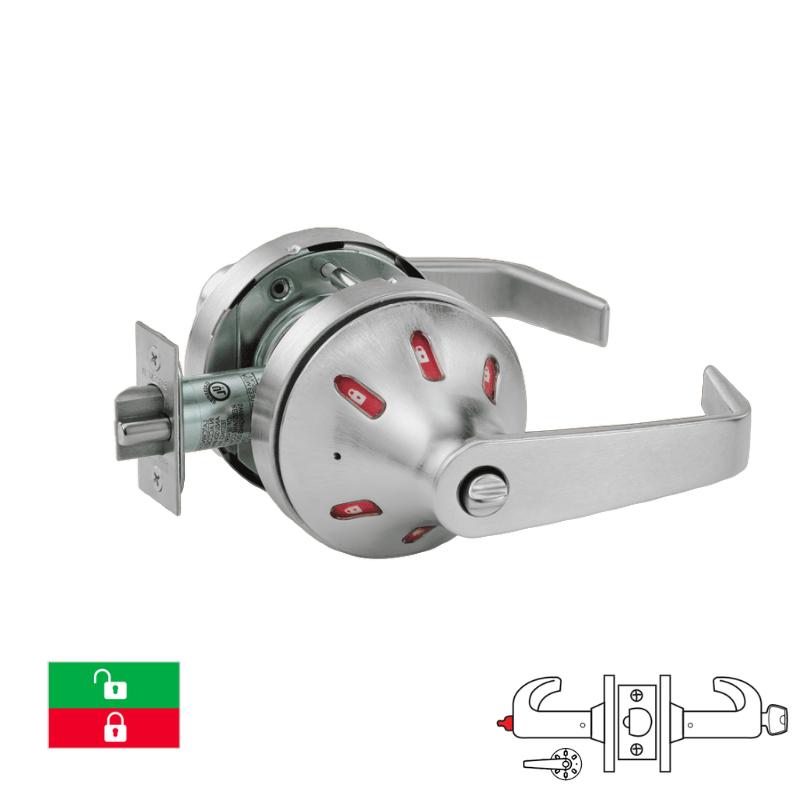

Sargent V03-10XG05-VSLL-LAKD Office Function Cylindrical Lock, "VSL" Rose, "L" Lever Design, Visual Indicator Trim Inside Only, Green/Red, 2 3/4 Backset, 4 7/8 Strike, LA Keyway Keyed Random [2] Keys, Grade 1
The Sargent V03-10XG05-VSLL-LAKD Office Function Cylindrical Lock features a Grade 1 rating for maximum durability and security. It includes a "VSL" rose with an "L" lever design, providing comfortable operation. The lock has a visual indicator trim inside only, displaying green and red to signal occupancy status, enhancing privacy control. With a 2 3/4-inch backset and a 4 7/8-inch strike, it fits standard door preparations. The LA keyway is keyed random and comes with two keys, ensuring restricted access and reliable performance in office environments.
Entrance or Office Function:
- Deadlocking latch
- Latch by either lever unless outside lever is locked by push/turn button in inside lever
- Push button released by key outside or lever inside
- Turn button must be released manually
- Key retracts latch when outside lever is locked
- ANSI/BHMA F109
Single Indicator:
| Option Code |
Outside |
Inside |
 Color |
| V30 |
Indicator Trim |
Standard Trim |
Green/Red - Icon |
| V60 |
Indicator Trim |
Standard Trim |
White/Red - Icon |
| V03 |
Standard Trim |
Indicator Trim |
Green/Red - Icon |
| V06 |
Standard Trim |
Indicator Trim |
White/Red - Icon |
 * If indicators are specified on one side of the door only, the non-indicator side will be supplied with LL trim unless otherwise ordered.
