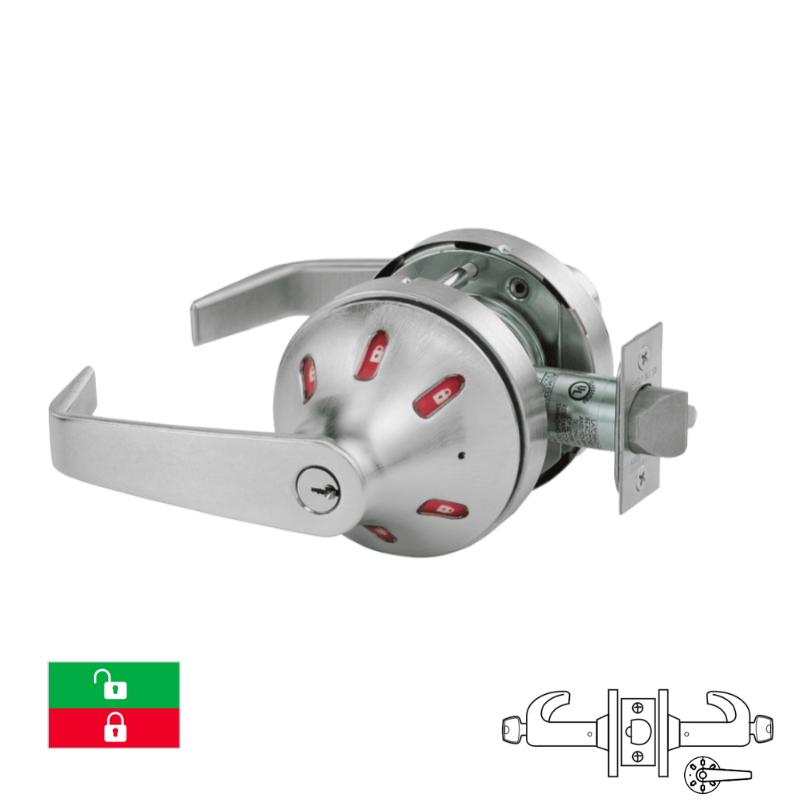

Sargent V30-10XG38-VSLL-LAKD Classroom Security Intruder Function Cylindrical Lock, "VSL" Rose, "L" Lever Design, Visual Indicator Trim Outside Only, Green/Red, 2 3/4 Backset, 4 7/8 Strike, LA Keyway Keyed Random [2] Keys, Grade 1
Sargent V30-10XG38-VSLL-LAKD cylindrical lock engineered for classroom security with intruder function capability. Features a Grade 1 rated mechanism with visual indicator trim (green/red) mounted on the exterior only, allowing quick status verification from outside the room. The "L" lever design paired with VSL rose provides reliable operation, while the LA keyway is keyed random with two keys included. Designed with a 2 3/4" backset and 4 7/8" strike for standard door installations. Ideal for educational facilities requiring controlled access and emergency lockdown functionality.
Classroom Security Intruder Function:
- Deadlocking latch
- Latch by either lever unless outside lever is locked by key
- Key in outside lever locks or unlocks outside lever
- Inside lever always operative
- ANSI/BHMA F84
Single Indicator:
| Option Code |
Outside |
Inside |
Color |
| V30 |
Indicator Trim |
Standard Trim |
Green/Red - Icon |
| V60 |
Indicator Trim |
Standard Trim |
White/Red - Icon |
| V03 |
Standard Trim |
Indicator Trim |
Green/Red - Icon |
| V06 |
Standard Trim |
Indicator Trim |
White/Red - Icon |
* If indicators are specified on one side of the door only, the non-indicator side will be supplied with LL trim unless otherwise ordered.
