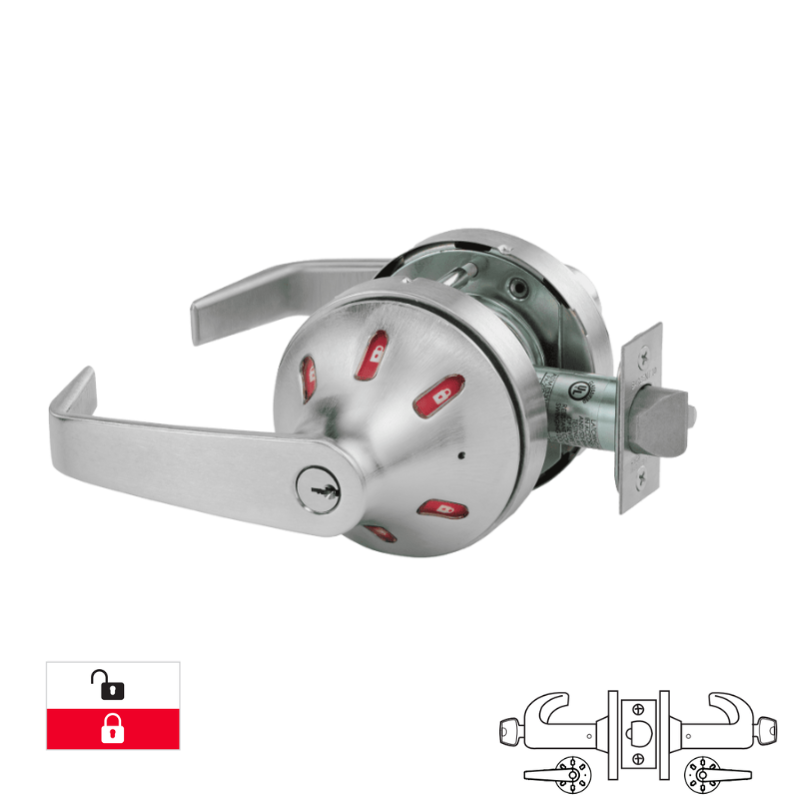

Sargent V66-10XG38-VSLL-LAKD Classroom Security Intruder Function Cylindrical Lock, "VSL" Rose, "L" Lever Design, Visual Indicator Trim Inside Both Sides, White/Red, 2 3/4 Backset, 4 7/8 Strike, LA Keyway Keyed Random [2] Keys, Grade 1
Sargent V66-10XG38-VSLL-LAKD cylindrical lock provides institutional-grade security for classroom environments with its intruder function, controlling access while preserving emergency egress protocols. The dual visual indicator system displays occupancy status on both sides using white and red signals, enabling quick assessment without opening the door. Built with VSL rose and L-lever configuration, it fits standard 2 3/4" backset openings and includes a 4 7/8" strike plate. LA keyway with random keying and two keys. Designed to withstand the demands of educational facilities while maintaining reliable performance in high-traffic settings.
Classroom Security Intruder Function:
- Deadlocking latch
- Latch by either lever unless outside lever is locked by key
- Key in outside lever locks or unlocks outside lever
- Inside lever always operative
- ANSI/BHMA F84
Double Indicator:
| Option Code |
Outside |
Inside |
Color |
| V33 |
Indicator Trim |
Indicator Trim |
Green/Red - Icon |
| V66 |
Indicator Trim |
Indicator Trim |
White/Red - Icon |
| V77 |
Indicator Trim |
Indicator Trim |
Green/Red - No Icon |
| V88 |
Indicator Trim |
Indicator Trim |
White/Red - No Icon |
