Technical Specs
| Std. Latch Type |
Dead Latch (Guarded) |
| Std. Latch Backset Dim |
2-3/4 In. |
| Lock Face Size |
2-1/4 In. x 1-1/8 In. |
| Bolt Projection |
3/4 In. |
| Product Type |
Deadlatches |
Product Specs
| Manufacturer |
Schlage |
| SKU |
14-042 |
| Installation |
Commercial |
| Origin |
— |
| Unit of Measure |
Each |

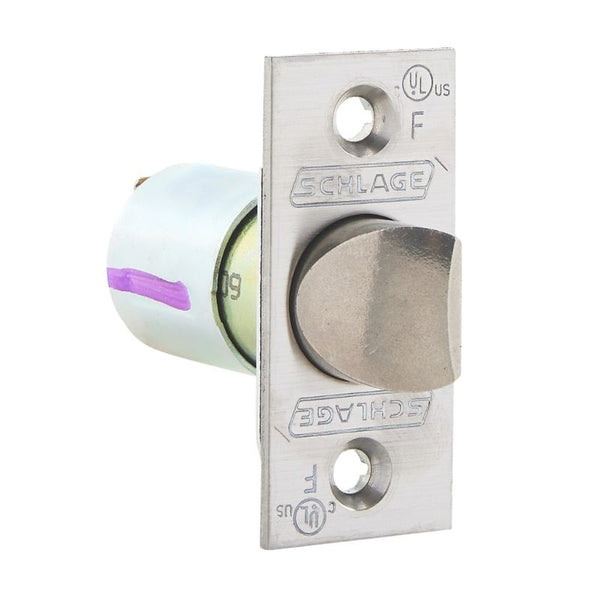

Schlage 14-042 Deadlatch, 2-3/4" Backset, 1-1/8" x 2-1/4" Face, 3/4" Throw, Anti-Friction, Square Corner, For ND Series Cylindrical Locksets
The Schlage 14-042 Deadlatch features a 2-3/4‟ backset, 1-1/8‟ x 2-1/4‟ face, 3/4‟ throw, and square corner design for use with ND Series Cylindrical Locksets. Its anti-friction technology ensures smooth functioning and durability.
DeadLatch: For Keyed Functions.
Schlage ND Serires Latches
ND latches are adjustable for flat or bevel edged doors, and are finished to match
the lock trim. All ND Series latches have 1⁄2" throw and 1" housings except the anti-friction fire door latch, which has a 3⁄4" throw. Please see the cut sheet for more options including extended backset strikes (up to 5") and rabbited latch and strike kits.
