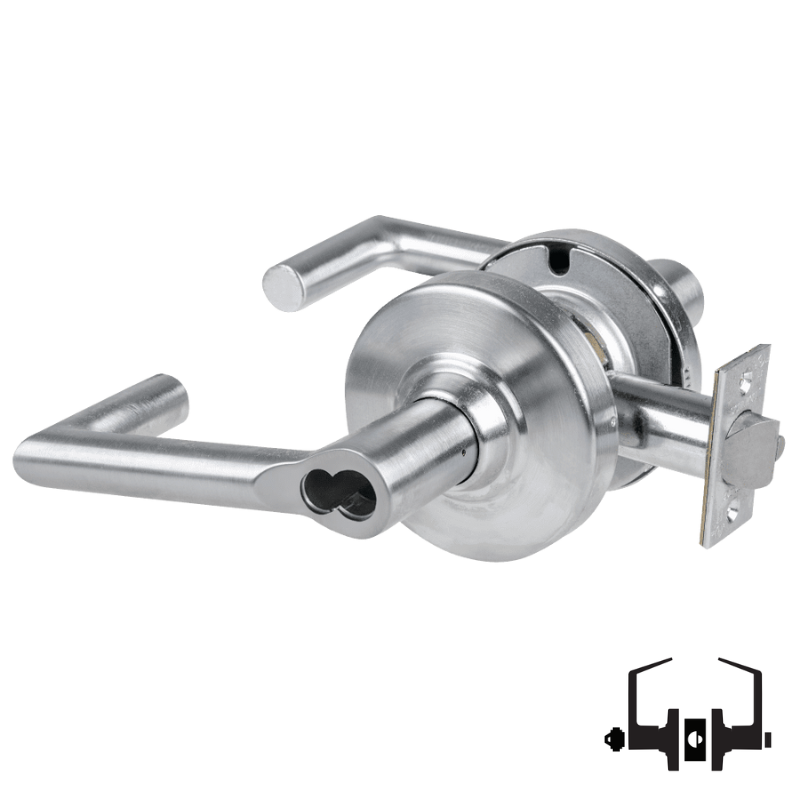

Name: Schlage ALX50B-BRK Office Cylindrical Lock, Boardwalk Lever, SFIC Less Core
Brand: SCHLAGE
SKU: ALX50BBRK626
Price: 385.00 CAD
Availability: InStock

All SCHLAGE Products

Schlage ALX50B-BRK Office Cylindrical Lock, Boardwalk Lever, SFIC Less Core

SKU: ALX50BBRK626

Schlage ALX50B-BRK-626 Office Cylindrical Lock

Schlage ALX50B-BRK-622 Office Cylindrical Lock

All SCHLAGE Products

Buy Complete Door Hardware Set

Finish - US26D-626 Satin Chrome

US26D-626 Satin Chrome
US10BE-613E Dark Oxidized Bronze
693 Black Painted

Schlage ALX50B-BRK Office Cylindrical...

Schlage Finish:

Variant

Quantity

–

+

$179.00

KSP 206-A-KD SFIC Combinated Core - A Keyway, Keyed Different, 6 Pin

Finish - US26D-626 Satin Chrome

US26D-626 Satin Chrome
US10BE-613E Dark Oxidized Bronze
693 Black Painted

KSP 206-A-KD SFIC Combinated Core - A...

Finish:

Variant

Quantity

–

+

$179.00

Total $475.00

Technical Specs

Function	50 Entrance Office Lock
Function Family	Entrance
ANSI Function	F82 - Entry
Lever/Knob Design	BRK Boardwalk Lever
Lever/Knob Design Family	Straight Return Lever
Rose/Escutcheon Design	3-7/16" Rose Diameter
Rose/Escutcheon Dimensions	Rhodes
Cylinder Type	SFIC Prep Less Core
Num Pins	6 to 7
Handing	Non-handed
Door Thickness	1-3/8" - 1-3/4"
Std. Latch Number	47267042
Std. Latch Type	Deadlatch
Std. Latch Backset Dim	2-3/4"
Latch Bore Diameter	7/8 In.
Lock Face Size	1-1/8 In. x 2-1/4 In.
Bolt Projection	1/2 In.
Bore Hole Diameter	2-1/8 In.
Std. Strike Number	47267101
Std. Strike Type	ANSI Strike
Std. Strike Height	4-7/8"
Std. Strike Width	1-1/4"
Screws	Combination
Product Type	Cylindrical Lock

Product Specs

Manufacturer	Schlage
Grade	Grade 2
Installation	Commercial
Origin	Mexico
Unit of Measure	Each
UL Listing Type	UL/cUL
ANSI Number	A156.2-2011 Series 4000, Grade 2
Limited Warranty	10 Years
Fire Rated	3 Hours {A}
ADA Compliance	Yes

The Schlage ALX50B-BRK is a Cylindrical Office function lock, with a Boardwalk Lever, has a Field Selectable Vandlgard feature, accepts an SFIC Small Format Interchangeable Core, Sold Less Core, has a 2 3/4" backset, 4 7/8" ASA Strike, is Non-Handed, is Grade 2, and is available in 626 Satin Chrome or 622 Matte Black finish.

Schlage ALX50 Entrance/Office Lock - Key cylinder outside; push button inside; dead latch. Inside push button locks outside lever. Unlock with key outside or by rotating inside lever. Field selectable Vandlegard feature. Inside lever always free for immediate egress.

Schlage ALX50 Function

ALX Series Grade 2 Cylindrical Lock

A first of it's kind, Schlage ALX Series is modular in design creating new ways to order, configure and utilize a lock. Whether purchased configured or as chassis, function, and lever kits, you gain extreme installation simplicity, exceptional durability, expanded cylinder support, and maximum flexibility.
