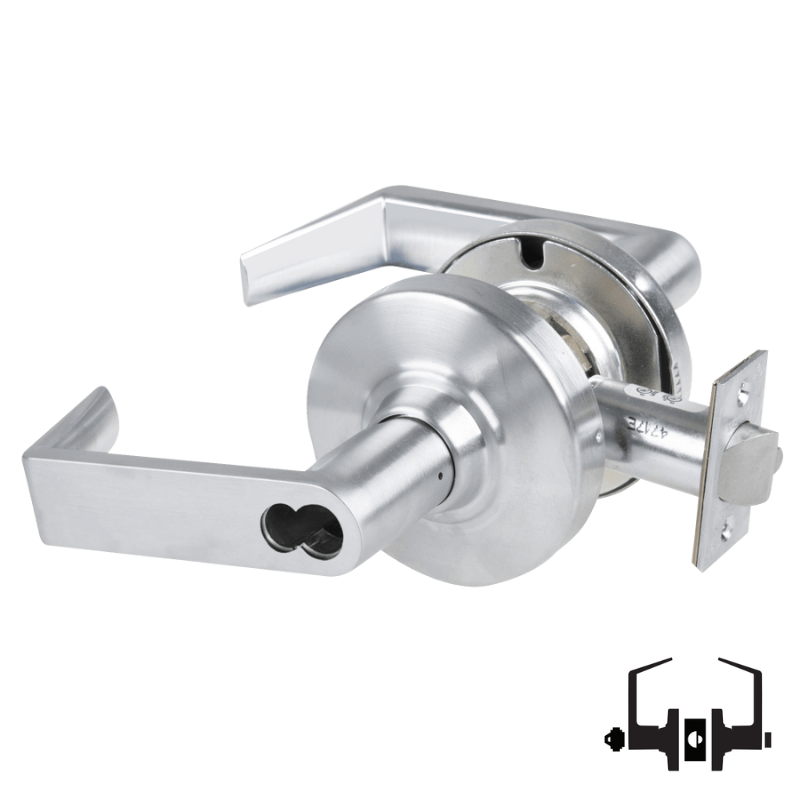

Name: Schlage ALX50B-RHO Office Cylindrical Lock, Rhodes Lever, SFIC Less Core
Brand: SCHLAGE
SKU: ALX50BRHO626
Price: 391.00 CAD
Availability: InStock

All SCHLAGE Products

Schlage ALX50B-RHO Office Cylindrical Lock, Rhodes Lever, SFIC Less Core

SKU: ALX50BRHO626

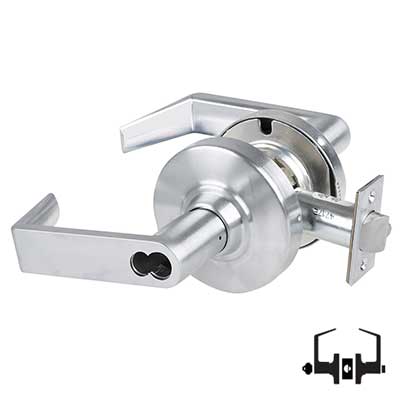

Schlage ALX50B-RHO-626 Office Cylindrical Lock

All SCHLAGE Products

Buy Complete Door Hardware Set

Schlage Finish - 626 - Satin Chromium Plated

626 - Satin Chromium Plated
622 Matte Black

Schlage ALX50B-RHO Office Cylindrical...

Schlage Finish:

Variant

Quantity

–

+

$391.00

KSP 206-A-KD SFIC Combinated Core - A Keyway, Keyed Different, 6 Pin

Finish - US26D Satin Chrome (626)

US26D Satin Chrome (626)
US4 Satin Brass (606)

KSP 206-A-KD SFIC Combinated Core - A...

Finish:

Variant

Quantity

–

+

$76.00

Total $482.00

Technical Specs

Function	50 Entrance Office Lock
Function Family	Entrance
ANSI Function	F82 - Entry
Lever/Knob Design	RHO Rhodes Lever
Lever/Knob Design Family	Straight Return Lever
Rose/Escutcheon Design	3-7/16" Rose Diameter
Rose/Escutcheon Dimensions	Rhodes
Cylinder Type	SFIC Prep Less Core
Num Pins	6 to 7
Handing	Non-handed
Door Thickness	1-3/8" - 1-3/4"
Std. Latch Number	47267042
Std. Latch Type	Deadlatch
Std. Latch Backset Dim	2-3/4"
Latch Bore Diameter	7/8 In.
Lock Face Size	1-1/8 In. x 2-1/4 In.
Bolt Projection	1/2 In.
Bore Hole Diameter	2-1/8 In.
Std. Strike Number	47267101
Std. Strike Type	ANSI Strike
Std. Strike Height	4-7/8"
Std. Strike Width	1-1/4"
Screws	Combination
Product Type	Cylindrical Lock

Product Specs

Manufacturer	Schlage
Grade	Grade 2
Installation	Commercial
Origin	Mexico
Unit of Measure	Each
UL Listing Type	UL/cUL
ANSI Number	A156.2-2011 Series 4000, Grade 2
Limited Warranty	10 Years
Fire Rated	3 Hours {A}
ADA Compliance	Yes

The Schlage ALX50B-RHO is a Cylindrical Office function lock, with a Rhodes Lever, has a Field Selectable Vandlgard feature, accepts an SFIC Small Format Interchangeable Core, Sold Less Core, has a 2 3/4" backset, 4 7/8" ASA Strike, is Non-Handed, is Grade 2, and is available in 626 Satin Chrome or 622 Matte Black finish.

Schlage ALX50 Entrance/Office Lock - Key cylinder outside; push button inside; dead latch. Inside push button locks outside lever. Unlock with key outside or by rotating inside lever. Field selectable Vandlegard feature. Inside lever always free for immediate egress.

Schlage ALX50 Function

ALX Series Grade 2 Cylindrical Lock

A first of it's kind, Schlage ALX Series is modular in design creating new ways to order, configure and utilize a lock. Whether purchased configured or as chassis, function, and lever kits, you gain extreme installation simplicity, exceptional durability, expanded cylinder support, and maximum flexibility.
