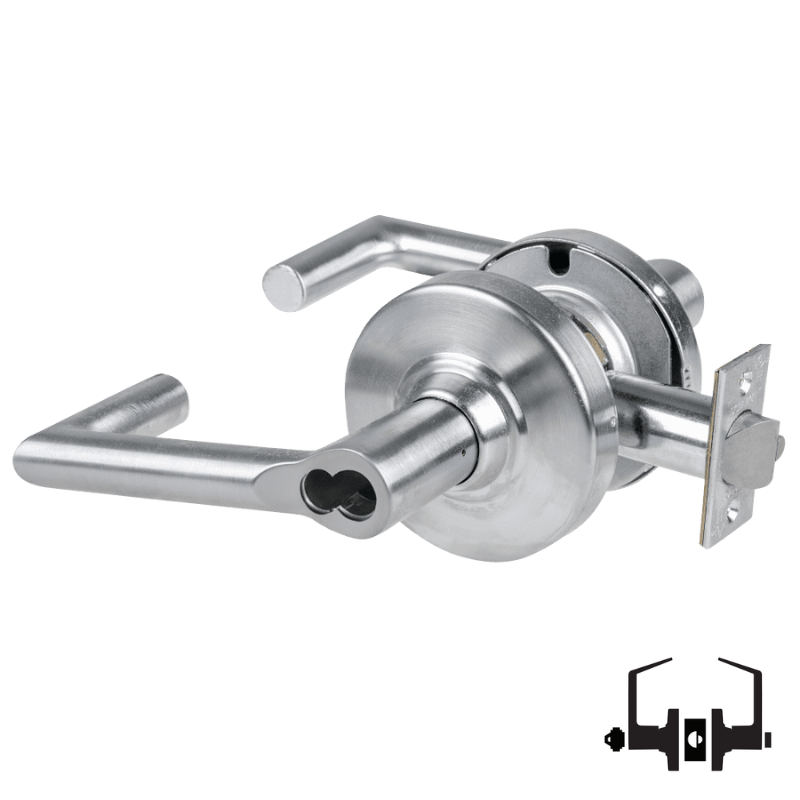

Schlage ALX50J-BRK Office Cylindrical Lock, Boardwalk Lever, FSIC Less Core

  • SKU: ALX50JBRK626

Schlage ALX50J-BRK Office Cylindrical Lock, Boardwalk Lever, FSIC Less Core

  • SKU: ALX50JBRK626
  • In Stock
    In Stock
Your Price
$376.00 /ea
Finish: US26D-626 Satin Chrome

Buy Complete Door Hardware Set

?
Door hardware to Complete Your Set
Schlage ALX50J-BRK Office Cylindrical...
Quantity
+
Sale priceFrom $376.00
Schlage 23-030 C, FSIC Core, 6 Pin, C...
Quantity
+
Sale priceFrom $131.00
Schlage 35-056-C Control Key Blank, E...
Quantity
+
Sale price$18.00
Total

Schlage ALX50-J-BRK Office Cylindrical Lock, Field Selectable Vandlgard, Boardwalk Lever, Accepts Schlage Large Format FSIC, Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 2, Non-Handed

Schlage's ALX50J-BRK office cylindrical lock delivers professional-grade security with its Grade 2 rating and non-handed design, accommodating both left and right-hand installations. The Boardwalk lever provides a contemporary aesthetic while the Field Selectable Vandlgard feature allows customization for your specific access control needs. Compatible with Schlage's Large Format FSIC system, this lock ships without the core, offering flexibility in your security setup. With a 2-3/4 inch backset and 4-7/8 inch strike, it integrates seamlessly into standard commercial door frames.

ALX50 Single Cylinder Deadbolt Function, Entrance/Office Lock

  • Key cylinder outside; push button inside; deadlatch
  • Inside push button locks outside lever
  • Unlock with key outside or by rotating inside lever
  • Field selectable Vandlgard® feature
  • Inside lever always free for immediate egress
Manufacturer Schlage
Grade Grade 2
Installation Commercial
Origin Mexico
Unit of Measure Each
UL Listing Type UL/cUL
ANSI Number A156.2-2011 Series 4000, Grade 2
Limited Warranty 10 Years
Fire Rated 3 Hours {A}
ADA Compliance Yes



Function 50-Entrance Office Lock
Function Family Entrance
ANSI Function F82 - Entry
Lever/Knob Design BRK  Boardwalk Lever
Lever/Knob Design Family Straight Return Lever
Rose/Escutcheon Design 3-7/16" Rose Diameter
Rose/Escutcheon Dimensions Rhodes
Cylinder Type Schlage FSIC Prep Less Core
Num Pins 6 to 7
Handing Non-handed
Door Thickness 1-3/8 In. - 1-3/4 In.
Std. Latch Number 47267042
Std. Latch Type Deadlatch
Std. Latch Backset Dim 2-3/4 In.
Latch Bore Diameter 7/8 In.
Lock Face Size 1-1/8 In. x 2-1/4 In.
Bolt Projection 1/2 In.
Bore Hole Diameter 2-1/8 In.
Std. Strike Number 47267101
Std. Strike Type ANSI Strike
Std. Strike Height 4-7/8 In.
Std. Strike Width 1-1/4 In.
Screws Combination
Product Type Cylindrical Lock
