Schlage ALX53J-SPA Entrance Cylindrical Lock, Sparta Lever, FSIC Less Core

  • SKU: ALX53JSPA626

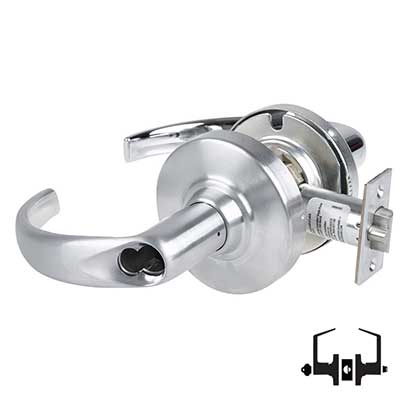

Schlage ALX53J-SPA-626 Entrance Cylindrical Lock
Schlage ALX53J-SPA-626 Entrance Cylindrical Lock
Schlage ALX53J-SPA-622 Entrance Cylindrical Lock
All SCHLAGE Products

Schlage ALX53J-SPA Entrance Cylindrical Lock, Sparta Lever, FSIC Less Core

  • SKU: ALX53JSPA626
  • ✓
    In Stock
    In Stock
Your Price
$377.00 /ea
Finish: US26D-626 Satin Chrome

Buy Complete Door Hardware Set

?
Door hardware to Complete Your Set
Schlage ALX53J-SPA Entrance Cylindric...
Quantity
–
+
From $377.00
Schlage 23-030 C, FSIC Core, 6 Pin, C...
Quantity
–
+
From $131.00
Schlage 35-056-C Control Key Blank, E...
Quantity
–
+
$18.00
Total

Schlage ALX53-J-SPA Entrance Cylindrical Lock, Field Selectable Vandlgard, Sparta Lever, Accepts Schlage Large Format FSIC, Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 2, Non-Handed



ALX53 Single Cylinder Deadbolt Function, Entrance lock

  • Key cylinder outside; push/turn button inside; deadlatch
  • Inside button locks outside lever by pushing button or pushing and turning button
  • Pushed button: unlock with key outside or by rotating inside lever
  • Pushed/turned button: key outside retracts latch only; unlock by returning inside button to home position then using key or rotating inside lever
  • Field selectable Vandlgard® feature
  • Inside lever always free for immediate egress
Manufacturer Schlage
Grade Grade 2
Installation Commercial
Origin Mexico
Unit of Measure Each
UL Listing Type UL/cUL
ANSI Number A156.2-2011 Series 4000, Grade 2
Limited Warranty 10 Years
Fire Rated 3 Hours {A}
ADA Compliance Yes
Function 53 Entrance Lock
Function Family Entrance
ANSI Function F109 - Entry/Office
Lever/Knob Design SPA Sparta Lever
Lever/Knob Design Family Curved Return Lever
Rose/Escutcheon Design 3-7/16" Rose Diameter
Rose/Escutcheon Dimensions Rhodes
Cylinder Type Schlage FSIC Prep Less Core
Num Pins 6
Handing Non-handed
Door Thickness 1-3/8" - 1-3/4"
Std. Latch Number 47267042
Std. Latch Type Deadlatch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 7/8 In.
Lock Face Size 1-1/8 In. x 2-1/4 In.
Bolt Projection 1/2 In.
Bore Hole Diameter 2-1/8 In.
Std. Strike Number 47267101
Std. Strike Type ANSI Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Combination
Product Type Cylindrical Lock
