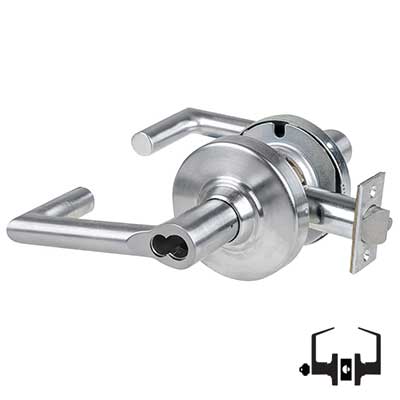

Schlage ALX70B-BRK Classroom Cylindrical Lock, Boardwalk Lever, SFIC Less Core

  • SKU: ALX70BBRK626
Schlage ALX70-B-BRK-626
Schlage ALX70-B-BRK-626
Schlage ALX70B-BRK Classroom Cylindrical Lock, Boardwalk Lever, SFIC Less Core
Schlage ALX70B-BRK Classroom Cylindrical Lock, Boardwalk Lever, SFIC Less Core
Schlage ALX70-B-BRK-605
Schlage ALX70-B-BRK-606
Schlage ALX70-B-BRK-612
Schlage ALX70-B-BRK-613
Schlage ALX70-B-BRK-619
Schlage ALX70-B-BRK-622
Schlage ALX70-B-BRK-625
Schlage ALX70-B-BRK-643E
All SCHLAGE Products

Schlage ALX70B-BRK Classroom Cylindrical Lock, Boardwalk Lever, SFIC Less Core

  • SKU: ALX70BBRK626
  • ✓
    In Stock
    In Stock
Your Price
$376.00 /ea
Finish: US26D-626 Satin Chrome

Buy Complete Door Hardware Set

?
Door hardware to Complete Your Set
Schlage ALX70B-BRK Classroom Cylindri...
Quantity
–
+
From $376.00
KSP 206-A-KD SFIC Combinated Core - A...
Quantity
–
+
$73.00
KSP 206A Control Key Blank For KSP 20...
Quantity
–
+
$14.00
Total

Schlage ALX70-B-BRK Classroom Cylindrical Lock, Field Selectable Vandlgard, Boardwalk Lever, Accepts SFIC, Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 2, Non-Handed

Schlage's ALX70B-BRK classroom cylindrical lock delivers institutional-grade security with professional-grade construction. This Grade 2 lock features a Boardwalk lever design and accommodates SFIC cores for flexible key management. The field-selectable Vandlgard protection resists tampering, making it ideal for educational environments. With a 2-3/4 inch backset and 4-7/8 inch strike, this non-handed lock installs on either side of the door. Supplied less core for customized keying solutions.

ALX70 Single Cylinder Deadbolt Function, Classroom lock

  • Key cylinder outside; plain lever inside; deadlatch
  • Key in outside lever locks or unlocks outside lever
  • Field selectable Vandlgard® feature
  • Inside lever always free for immediate egress
Manufacturer Schlage
Grade Grade 2
Installation Commercial
Origin Mexico
Unit of Measure Each
UL Listing Type UL/cUL
ANSI Number A156.2-2011 Series 4000, Grade 2
Limited Warranty 10 Years
Fire Rated 3 Hours {A}
ADA Compliance Yes



Function 70-Classroom Lock
Function Family Classroom
ANSI Function F84 - Classroom
Lever/Knob Design BRK Boardwalk Lever
Lever/Knob Design Family Straight Return Lever
Rose/Escutcheon Design 3-7/16" Rose Diameter
Rose/Escutcheon Dimensions Rhodes
Cylinder Type SFIC Prep Less Core
Num Pins 6 to 7
Handing Non-handed
Door Thickness 1-3/8 In. - 1-3/4 In.
Std. Latch Number 47267042
Std. Latch Type Deadlatch
Std. Latch Backset Dim 2-3/4 In.
Latch Bore Diameter 7/8 In.
Lock Face Size 1-1/8 In. x 2-1/4 In.
Bolt Projection 1/2 In.
Bore Hole Diameter 2-1/8 In.
Std. Strike Number 47267101
Std. Strike Type ANSI Strike
Std. Strike Height 4-7/8 In.
Std. Strike Width 1-1/4 In.
Screws Combination
Product Type Cylindrical Lock
Product Cut Sheet
