Schlage ALX70J-BRK Classroom Cylindrical Lock, Boardwalk Lever, FSIC Less Core

  • SKU: ALX70JBRK626

Schlage ALX70J-BRK Classroom Cylindrical Lock, Boardwalk Lever, FSIC Less Core

  • SKU: ALX70JBRK626
  • In Stock
    In Stock
Your Price
$376.00 /ea
Finish: US26D-626 Satin Chrome

Buy Complete Door Hardware Set

?
Door hardware to Complete Your Set
Schlage ALX70J-BRK Classroom Cylindri...
Quantity
+
Sale priceFrom $376.00
Schlage 23-030 C, FSIC Core, 6 Pin, C...
Quantity
+
Sale priceFrom $131.00
Schlage 35-056-C Control Key Blank, E...
Quantity
+
Sale price$18.00
Total

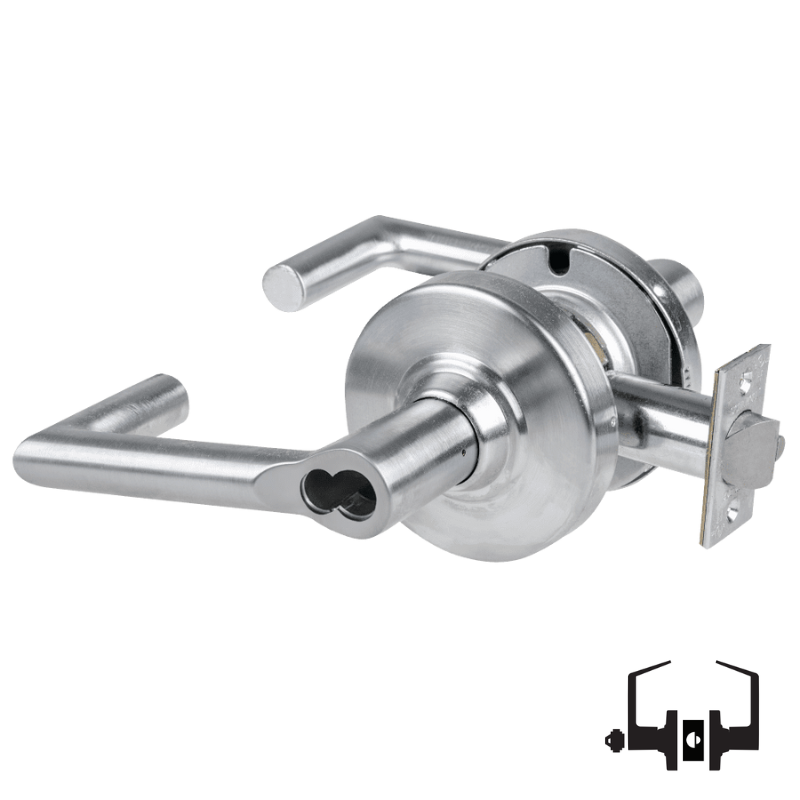

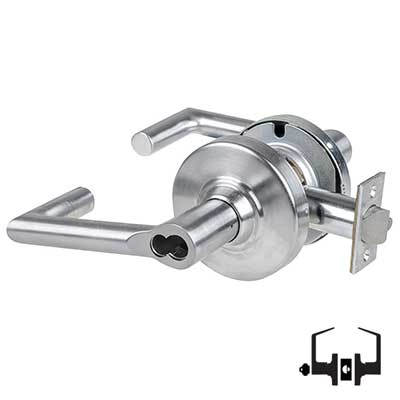

Schlage ALX70-J-BRK Classroom Cylindrical Lock, Field Selectable Vandlgard, Boardwalk Lever, Accepts Schlage Large Format FSIC, Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 2, Non-Handed

This Schlage classroom lock combines Grade 2 security with field-selectable Vandlgard technology to protect against tampering and forced access in educational settings. The universally-handed Boardwalk lever accommodates any door orientation, while Large Format FSIC acceptance provides flexibility in core and keying configuration. Precision-engineered with a 2-3/4 inch backset and 4-7/8 inch strike for standard institutional door frames. Delivered without core, enabling you to select the appropriate locking core to align with your facility's security and access management protocols.

ALX70 Single Cylinder Deadbolt Function, Classroom lock

  • Key cylinder outside; plain lever inside; deadlatch
  • Key in outside lever locks or unlocks outside lever
  • Field selectable Vandlgard® feature
  • Inside lever always free for immediate egress
Manufacturer Schlage
Grade Grade 2
Installation Commercial
Origin Mexico
Unit of Measure Each
UL Listing Type UL/cUL
ANSI Number A156.2-2011 Series 4000, Grade 2
Limited Warranty 10 Years
Fire Rated 3 Hours {A}
ADA Compliance Yes



Function 70 Classroom Lock
Function Family Classroom
ANSI Function F84 - Classroom
Lever/Knob Design BRK Boardwalk Lever
Lever/Knob Design Family Straight Return Lever
Rose/Escutcheon Design 3-7/16" Rose Diameter
Rose/Escutcheon Dimensions Rhodes
Cylinder Type Schlage FSIC Prep Less Core
Num Pins 6
Handing Non-handed
Door Thickness 1-3/8 In. - 1-3/4 In.
Std. Latch Number 47267042
Std. Latch Type Deadlatch
Std. Latch Backset Dim 2-3/4 In.
Latch Bore Diameter 7/8 In.
Lock Face Size 1-1/8 In. x 2-1/4 In.
Bolt Projection 1/2 In.
Bore Hole Diameter 2-1/8 In.
Std. Strike Number 47267101
Std. Strike Type ANSI Strike
Std. Strike Height 4-7/8 In.
Std. Strike Width 1-1/4 In.
Screws Combination
Product Type Cylindrical Lock
