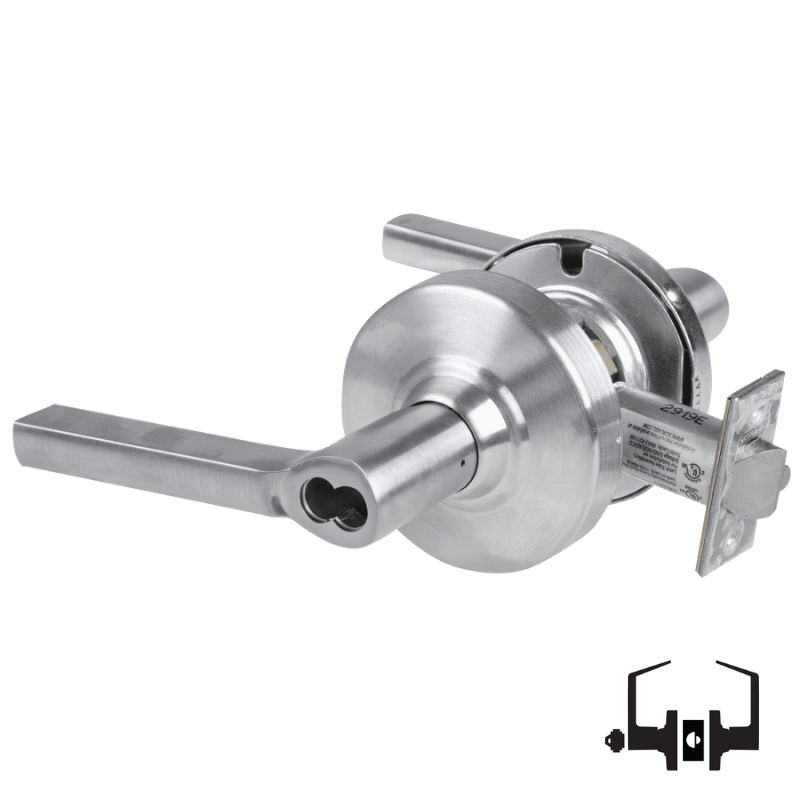

Schlage ALX70J-LAT Classroom Cylindrical Lock, Latitude Lever, FSIC Less Core

  • SKU: ALX70JLAT626

Schlage ALX70J-LAT Classroom Cylindrical Lock, Latitude Lever, FSIC Less Core

  • SKU: ALX70JLAT626
  • In Stock
    In Stock
Your Price
$376.00 /ea
Finish: US26D-626 Satin Chrome

Buy Complete Door Hardware Set

?
Door hardware to Complete Your Set
Schlage ALX70J-LAT Classroom Cylindri...
Quantity
+
Sale priceFrom $376.00
Schlage 23-030 C, FSIC Core, 6 Pin, C...
Quantity
+
Sale priceFrom $131.00
Schlage 35-056-C Control Key Blank, E...
Quantity
+
Sale price$18.00
Total

Schlage ALX70-J-LAT Classroom Cylindrical Lock, Field Selectable Vandlgard, Latitude Lever, Accepts Schlage Large Format FSIC, Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 2, Non-Handed

Schlage's ALX70J-LAT classroom cylindrical lock delivers institutional-grade security with professional-grade construction. This Grade 2 lock features a non-handed design for flexible installation, accommodating both left and right-hand doors. The Latitude lever provides ergonomic operation, while the field-selectable Vandlgard mechanism offers customizable protection against tampering. Compatible with Schlage's Large Format FSIC keyway, this lock accepts standard institutional key systems. With a 2-3/4 inch backset and 4-7/8 inch strike, it integrates seamlessly into existing door frames. Sold less core for compatibility with your current key system.

ALX70 Single Cylinder Deadbolt Function, Classroom lock

  • Key cylinder outside; plain lever inside; deadlatch
  • Key in outside lever locks or unlocks outside lever
  • Field selectable Vandlgard® feature
  • Inside lever always free for immediate egress
Manufacturer Schlage
Grade Grade 2
Installation Commercial
Origin Mexico
Unit of Measure Each
UL Listing Type UL/cUL
ANSI Number A156.2-2011 Series 4000, Grade 2
Limited Warranty 10 Years
Fire Rated 3 Hours {A}
ADA Compliance Yes



Function 70 Classroom Lock
Function Family Classroom
ANSI Function F84 - Classroom
Lever/Knob Design LAT Latitude Lever
Lever/Knob Design Family Straight Lever
Rose/Escutcheon Design 3-7/16" Rose Diameter
Rose/Escutcheon Dimensions Rhodes
Cylinder Type Schlage FSIC Prep Less Core
Num Pins 6
Handing Non-handed
Door Thickness 1-3/8 In. - 1-3/4 In.
Std. Latch Number 47267042
Std. Latch Type Deadlatch
Std. Latch Backset Dim 2-3/4 In.
Latch Bore Diameter 7/8 In.
Lock Face Size 1-1/8 In. x 2-1/4 In.
Bolt Projection 1/2 In.
Bore Hole Diameter 2-1/8 In.
Std. Strike Number 47267101
Std. Strike Type ANSI Strike
Std. Strike Height 4-7/8 In.
Std. Strike Width 1-1/4 In.
Screws Combination
Product Type Cylindrical Lock
