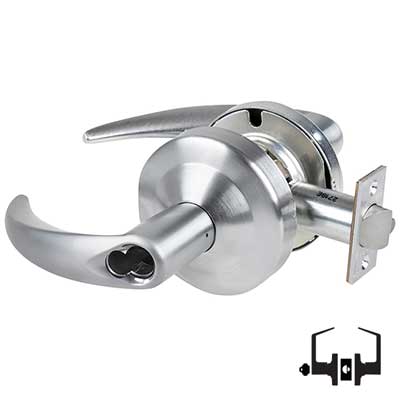

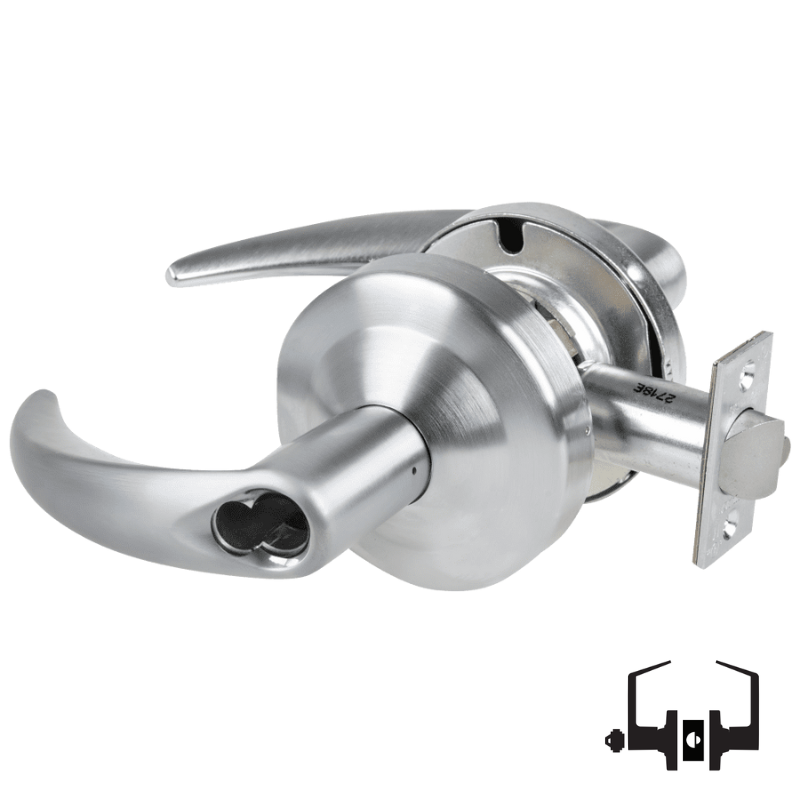

Schlage ALX70J-OME Classroom Cylindrical Lock, Omega Lever, FSIC Less Core

  • SKU: ALX70JOME626
Schlage ALX70-J-OME-626
Schlage ALX70-J-OME-626
Schlage ALX70J-OME Classroom Cylindrical Lock, Omega Lever, FSIC Less Core
SchlageALX-OME
Schlage ALX70-J-OME-605
Schlage ALX70-J-OME-606
Schlage ALX70-J-OME-612
Schlage ALX70-J-OME-613
Schlage ALX70-J-OME-619
Schlage ALX70-J-OME-622
Schlage ALX70-J-OME-625
Schlage ALX70-J-OME-643E
All SCHLAGE Products

Schlage ALX70J-OME Classroom Cylindrical Lock, Omega Lever, FSIC Less Core

  • SKU: ALX70JOME626
  • ✓
    In Stock
    In Stock
Your Price
$376.00 /ea
Finish: US26D-626 Satin Chrome

Buy Complete Door Hardware Set

?
Door hardware to Complete Your Set
Schlage ALX70J-OME Classroom Cylindri...
Quantity
–
+
From $376.00
Schlage 23-030 C, FSIC Core, 6 Pin, C...
Quantity
–
+
From $131.00
Schlage 35-056-C Control Key Blank, E...
Quantity
–
+
$18.00
Total

Schlage ALX70-J-OME Classroom Cylindrical Lock, Field Selectable Vandlgard, Omega Lever, Accepts Schlage Large Format FSIC, Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 2, Non-Handed

The Schlage ALX70J-OME delivers institutional-grade security for educational environments. This Grade 2 cylindrical lock features a durable Omega lever and field-selectable Vandlgard protection against tampering. Compatible with Schlage's Large Format FSIC system, it accommodates 2-3/4 inch backsets and includes a 4-7/8 inch strike plate. Non-handed design simplifies installation across multiple door configurations. Core sold separately. Built for high-traffic classroom applications where reliability and ease of maintenance are essential.

ALX70 Single Cylinder Deadbolt Function, Classroom lock

  • Key cylinder outside; plain lever inside; deadlatch
  • Key in outside lever locks or unlocks outside lever
  • Field selectable Vandlgard® feature
  • Inside lever always free for immediate egress
Manufacturer Schlage
Grade Grade 2
Installation Commercial
Origin Mexico
Unit of Measure Each
UL Listing Type UL/cUL
ANSI Number A156.2-2011 Series 4000, Grade 2
Limited Warranty 10 Years
Fire Rated 3 Hours {A}
ADA Compliance Yes



Function 70 Classroom Lock
Function Family Classroom
ANSI Function F84 - Classroom
Lever/Knob Design OME Omega Lever
Lever/Knob Design Family Curved Lever
Rose/Escutcheon Design 3-7/16" Rose Diameter
Rose/Escutcheon Dimensions Rhodes
Cylinder Type Schlage FSIC Prep Less Core
Num Pins 6
Handing Non-handed
Door Thickness 1-3/8 In. - 1-3/4 In.
Std. Latch Number 47267042
Std. Latch Type Deadlatch
Std. Latch Backset Dim 2-3/4 In.
Latch Bore Diameter 7/8 In.
Lock Face Size 1-1/8 In. x 2-1/4 In.
Bolt Projection 1/2 In.
Bore Hole Diameter 2-1/8 In.
Std. Strike Number 47267101
Std. Strike Type ANSI Strike
Std. Strike Height 4-7/8 In.
Std. Strike Width 1-1/4 In.
Screws Combination
Product Type Cylindrical Lock


Product Cut Sheet
