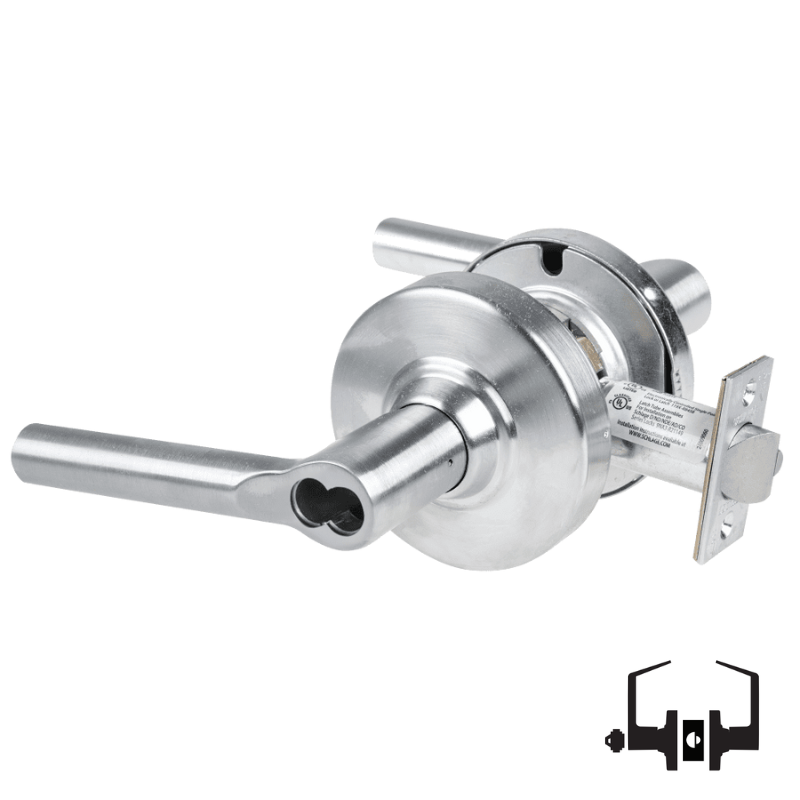

Schlage ALX80B-BRW Storeroom Cylindrical Lock, Broadway Lever, SFIC Less Core

  • SKU: ALX80BBRW626
Schlage ALX80-B-BRW-626
Schlage ALX80-B-BRW-626
SchlageALX80
SchlageALX-BRW_
Schlage ALX80-B-BRW-605
Schlage ALX80-B-BRW-606
Schlage ALX80-B-BRW-612
Schlage ALX80-B-BRW-613
Schlage ALX80-B-BRW-619
Schlage ALX80-B-BRW-622
Schlage ALX80-B-BRW-625
Schlage ALX80-B-BRW-643E
All SCHLAGE Products

Schlage ALX80B-BRW Storeroom Cylindrical Lock, Broadway Lever, SFIC Less Core

  • SKU: ALX80BBRW626
  • ✓
    In Stock
    In Stock
Your Price
$377.00 /ea
Finish: US26D-626 Satin Chrome

Buy Complete Door Hardware Set

?
Door hardware to Complete Your Set
Schlage ALX80B-BRW Storeroom Cylindri...
Quantity
–
+
From $377.00
KSP 206-A-KD SFIC Combinated Core - A...
Quantity
–
+
$73.00
KSP 206A Control Key Blank For KSP 20...
Quantity
–
+
$14.00
Total

Schlage ALX80-B-BRW Storeroom Cylindrical Lock, Field Selectable Vandlgard, Broadway Lever, Accepts SFIC, Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 2, Non-Handed

The Schlage ALX80B-BRW delivers commercial-grade security for storeroom applications with its robust cylindrical design and Field Selectable Vandlgard protection. Featuring the elegant Broadway lever in a non-handed configuration, this Grade 2 lock accommodates SFIC cores for flexible key management. With a 2-3/4 inch backset and 4-7/8 inch strike, it installs seamlessly into standard door preparations. The core-less design allows you to specify your preferred keying system, making it an adaptable solution for facilities requiring reliable access control without compromising on durability or aesthetics.

ALX80 Single Cylinder Deadbolt Function, Storeroom lock

  • Key cylinder outside; plain lever inside; deadlatch
  • Outside lever always fixed
  • Key can retract the latch
  • Field selectable Vandlgard® feature
  • Inside lever always free for immediate egress
Manufacturer Schlage
Grade Grade 2
Installation Commercial
Origin Mexico
Unit of Measure Each
UL Listing Type UL/cUL
ANSI Number A156.2-2011 Series 4000, Grade 2
Limited Warranty 10 Years
Fire Rated 3 Hours {A}
ADA Compliance Yes



Function 80 Storeroom Lock
Function Family Storeroom
ANSI Function F86 - Storeroom
Lever/Knob Design BRW Broadway Lever
Lever/Knob Design Family Straight Lever
Rose/Escutcheon Design 3-7/16" Rose Diameter
Rose/Escutcheon Dimensions Rhodes
Cylinder Type SFIC Prep Less Core
Num Pins 6 to 7
Handing Non-handed
Door Thickness 1-3/8" - 1-3/4"
Std. Latch Number 47267042
Std. Latch Type Deadlatch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 7/8 In.
Lock Face Size 1-1/8 In. x 2-1/4 In.
Bolt Projection 1/2 In.
Bore Hole Diameter 2-1/8 In.
Std. Strike Number 47267101
Std. Strike Type ANSI Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Combination
Product Type Cylindrical Lock
Product Cut Sheet
