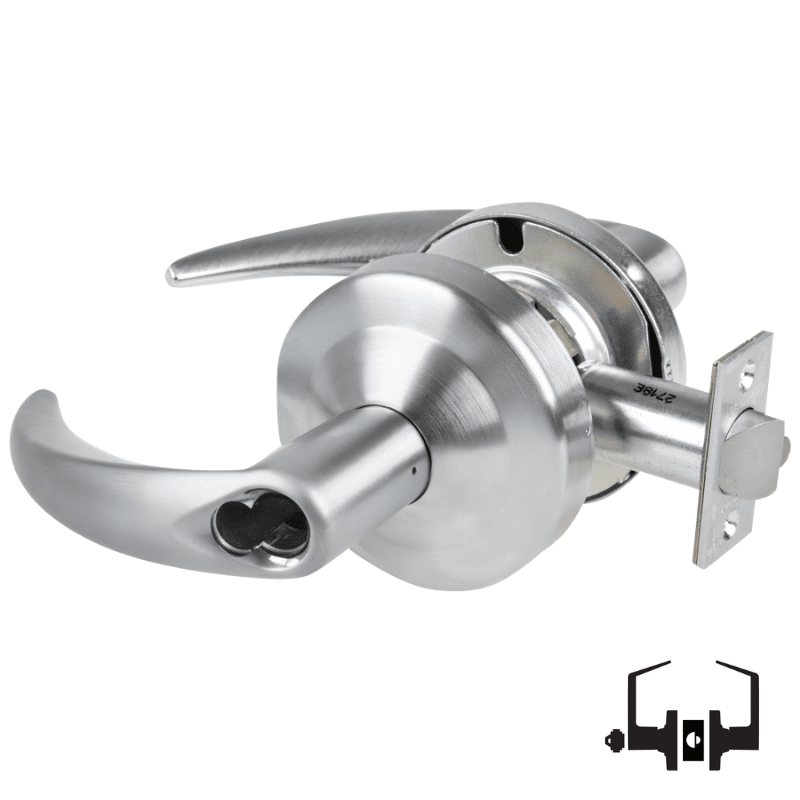

Schlage ALX80B-OME Storeroom Cylindrical Lock, Omega Lever, SFIC Less Core

  • SKU: ALX80BOME626
Schlage ALX80-B-OME-626
Schlage ALX80-B-OME-626
SchlageALX80
Schlage ALX80B-OME Storeroom Cylindrical Lock, Omega Lever, SFIC Less Core
Schlage ALX80-B-OME-605
Schlage ALX80-B-OME-606
Schlage ALX80-B-OME-612
Schlage ALX80-B-OME-613
Schlage ALX80-B-OME-619
Schlage ALX80-B-OME-622
Schlage ALX80-B-OME-625
Schlage ALX80-B-OME-643E
All SCHLAGE Products

Schlage ALX80B-OME Storeroom Cylindrical Lock, Omega Lever, SFIC Less Core

  • SKU: ALX80BOME626
  • ✓
    In Stock
    In Stock
Your Price
$377.00 /ea
Finish: US26D-626 Satin Chrome

Buy Complete Door Hardware Set

?
Door hardware to Complete Your Set
Schlage ALX80B-OME Storeroom Cylindri...
Quantity
–
+
From $377.00
KSP 206-A-KD SFIC Combinated Core - A...
Quantity
–
+
$73.00
KSP 206A Control Key Blank For KSP 20...
Quantity
–
+
$14.00
Total

Schlage ALX80-B-OME Storeroom Cylindrical Lock, Field Selectable Vandlgard, Omega Lever, Accepts SFIC, Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 2, Non-Handed

Schlage's ALX80B-OME storeroom cylindrical lock delivers commercial-grade security with expert-level versatility. This Grade 2 mechanism features a field-selectable Vandlgard option, accommodating SFIC cores for flexible key management across your facility. The Omega lever design combines ergonomic operation with durability, while the non-handed configuration simplifies installation on either door swing. With a 2-3/4 inch backset and 4-7/8 inch strike, it integrates seamlessly into standard commercial door frames. Ideal for storerooms and restricted-access areas requiring reliable, adaptable locking solutions.

ALX80 Single Cylinder Deadbolt Function, Storeroom lock

  • Key cylinder outside; plain lever inside; deadlatch
  • Outside lever always fixed
  • Key can retract the latch
  • Field selectable Vandlgard® feature
  • Inside lever always free for immediate egress
Manufacturer Schlage
Grade Grade 2
Installation Commercial
Origin Mexico
Unit of Measure Each
UL Listing Type UL/cUL
ANSI Number A156.2-2011 Series 4000, Grade 2
Limited Warranty 10 Years
Fire Rated 3 Hours {A}
ADA Compliance Yes



Function 80 Storeroom Lock
Function Family Storeroom
ANSI Function F86 - Storeroom
Lever/Knob Design OME Omega Lever
Lever/Knob Design Family Curved  Lever
Rose/Escutcheon Design 3-7/16" Rose Diameter
Rose/Escutcheon Dimensions Rhodes
Cylinder Type SFIC Prep Less Core
Num Pins 6 to 7
Handing Non-handed
Door Thickness 1-3/8" - 1-3/4"
Std. Latch Number 47267042
Std. Latch Type Deadlatch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 7/8 In.
Lock Face Size 1-1/8 In. x 2-1/4 In.
Bolt Projection 1/2 In.
Bore Hole Diameter 2-1/8 In.
Std. Strike Number 47267101
Std. Strike Type ANSI Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Combination
Product Type Cylindrical Lock
