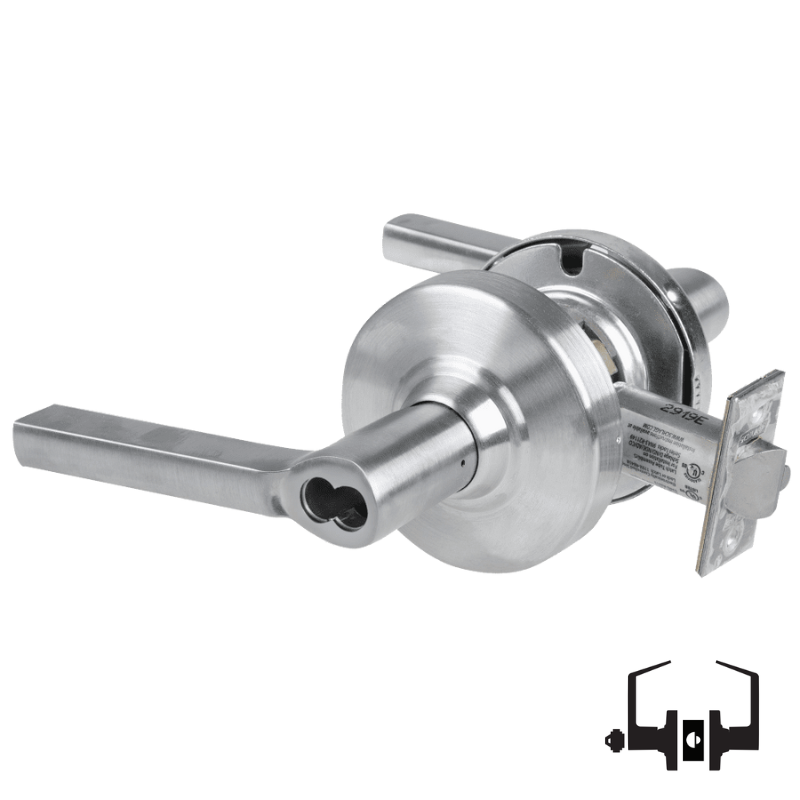

Schlage ALX80J-LAT Storeroom Cylindrical Lock, Latitude Lever, FSIC Less Core

SKU: ALX80JLAT626

Schlage ALX80J-LAT-626 Storeroom Cylindrical Lock

All SCHLAGE Products

Schlage ALX80J-LAT Storeroom Cylindrical Lock, Latitude Lever, FSIC Less Core

SKU: ALX80JLAT626

$392.00/ea

In Stock

In Stock

Choose your options

Choose Your Product Options:

Choose Region *

Painting Format *

Image Resolution *

Frame

Portrait Canvas Size (With Frame) *

Add HQ Digital Image

Add 8K x 8K Digital Image (FREE) (+$0.00)

Add 12K x 12K Digital Image (+$15.00)

Add 16K x 16K Digital Image (+$25.00)

Mint as NFT

Quantity:

Buy Complete Door Hardware Set

Schlage 23-030 C, FSIC Core, 6 Pin, C...

Finish:

Variant

Quantity

–

+

$140.00

Total $551.00

Technical Specs

Function	80 Storeroom Lock
Function Family	Storeroom
ANSI Function	F86 - Storeroom
Lever/Knob Design	LAT Latitude Lever
Lever/Knob Design Family	Straight Lever
Rose/Escutcheon Design	3-7/16" Rose Diameter
Rose/Escutcheon Dimensions	Rhodes
Cylinder Type	Schlage FSIC Prep Less Core
Num Pins	6
Handing	Non-handed
Door Thickness	1-3/8" - 1-3/4"
Std. Latch Number	47267042
Std. Latch Type	Deadlatch
Std. Latch Backset Dim	2-3/4"
Latch Bore Diameter	7/8 In.
Lock Face Size	1-1/8 In. x 2-1/4 In.
Bolt Projection	1/2 In.
Bore Hole Diameter	2-1/8 In.
Std. Strike Number	47267101
Std. Strike Type	ANSI Strike
Std. Strike Height	4-7/8"
Std. Strike Width	1-1/4"
Screws	Combination
Product Type	Cylindrical Lock

Product Specs

Manufacturer	Schlage
Grade	Grade 2
Installation	Commercial
Origin	Mexico
Unit of Measure	Each
UL Listing Type	UL/cUL
ANSI Number	A156.2-2011 Series 4000, Grade 2
Limited Warranty	10 Years
Fire Rated	3 Hours {A}
ADA Compliance	Yes

The Schlage ALX80J-LAT is a Cylindrical Storeroom function lock, with a Latitude Lever, with Field Selectable Vandlgard feature, accepts a Schlage FSIC Large Format Interchangeable Core, Sold Less Core, has a 2 3/4" backset, 4 7/8" ASA Strike, is Non-Handed, is Grade 2, and is available in 626 Satin Chrome or 622 Matte Black finish.

Schlage ALX80 Storeroom Lock - Key cylinder outside; plain lever inside; deadlatch. Outside lever always fixed. Key can retract the latch. Field selectable Vandlgard feature. Inside Lever always free for immediate egress.

Schlage ALX80 Function

ALX Series Grade 2 Cylindrical Lock

A first of it's kind, Schlage ALX Series is modular in design creating new ways to order, configure and utilize a lock. Whether purchased configured or as chassis, function, and lever kits, you gain extreme installation simplicity, exceptional durability, expanded cylinder support, and maximum flexibility.
