Technical Specs
| Function | 80 Storeroom Lock |
| Function Family | Storeroom |
| ANSI Function |
F86 - Storeroom |
| Lever/Knob Design | LON Longitude Lever |
| Lever/Knob Design Family | Straight Return Lever |
| Rose/Escutcheon Design |
3-7/16" Rose Diameter |
| Rose/Escutcheon Dimensions | Rhodes |
| Cylinder Type |
Schlage FSIC Prep Less Core |
| Num Pins | 6 |
| Handing | Non-handed |
| Door Thickness | 1-3/8" - 1-3/4" |
| Std. Latch Number | 47267042 |
| Std. Latch Type | Deadlatch |
| Std. Latch Backset Dim | 2-3/4" |
| Latch Bore Diameter | 7/8 In. |
| Lock Face Size | 1-1/8 In. x 2-1/4 In. |
| Bolt Projection | 1/2 In. |
| Bore Hole Diameter | 2-1/8 In. |
| Std. Strike Number | 47267101 |
| Std. Strike Type | ANSI Strike |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Combination |
| Product Type | Cylindrical Lock |
Product Specs
| Manufacturer | Schlage |
| Grade | Grade 2 |
| Installation | Commercial |
| Origin | Mexico |
| Unit of Measure | Each |
| UL Listing Type | UL/cUL |
| ANSI Number | A156.2-2011 Series 4000, Grade 2 |
| Limited Warranty | 10 Years |
| Fire Rated | 3 Hours {A} |
| ADA Compliance | Yes |

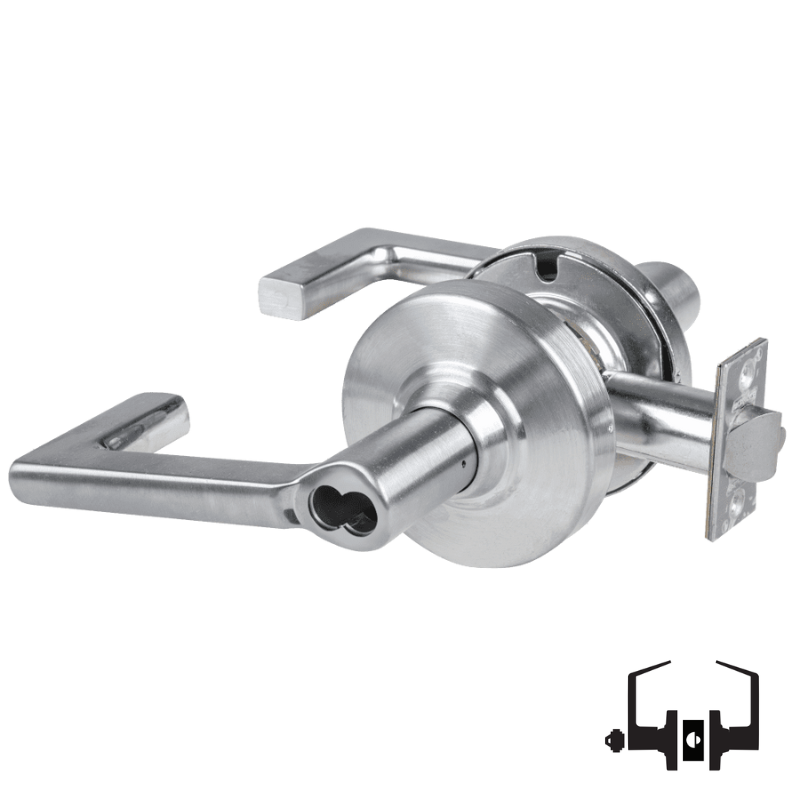

The Schlage ALX80J-LON is a Cylindrical Storeroom function lock, with a Longitude Lever, with Field Selectable Vandlgard feature, accepts a Schlage FSIC Large Format Interchangeable Core, Sold Less Core, has a 2 3/4" backset, 4 7/8" ASA Strike, is Non-Handed, is Grade 2, and is available in 626 Satin Chrome or 622 Matte Black finish.
Schlage ALX80 Storeroom Lock - Key cylinder outside; plain lever inside; deadlatch. Outside lever always fixed. Key can retract the latch. Field selectable Vandlgard feature. Inside Lever always free for immediate egress.
ALX Series Grade 2 Cylindrical Lock
A first of it's kind, Schlage ALX Series is modular in design creating new ways to order, configure and utilize a lock. Whether purchased configured or as chassis, function, and lever kits, you gain extreme installation simplicity, exceptional durability, expanded cylinder support, and maximum flexibility.
