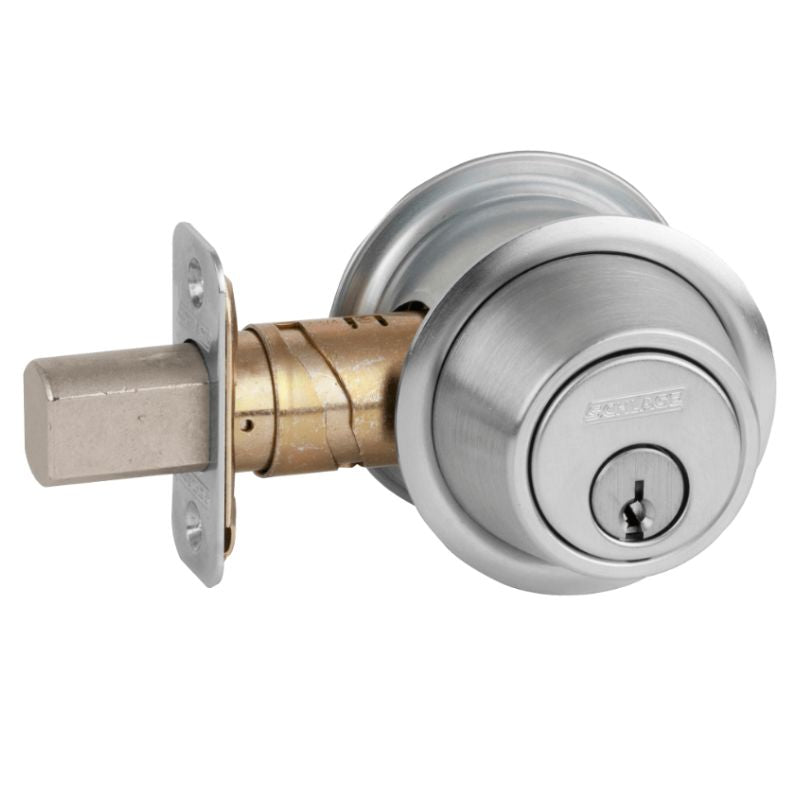

Schlage B560-P6-626 Single Cylinder Deadbolt, 6 Pin Cylinder, Schlage "C" Keyway, [2] Keys, Adjustable 2-3/8" and 2-3/4" Backset, Grade 2, Satin Chrome Finish
The Schlage B560-P-626 Single Cylinder Deadbolt features a 6 pin cylinder and Schlage "C" keyway, along with [2] keys. It also has an adjustable 2-3/8" and 2-3/4" backset, making it a grade 2 product with a satin chrome finish.
Schlage B500 Series Overview
Commercial Grade Deadbolts
A revolutionary new deadbolt that delivers higher security and tougher performance.
Designed by locksmiths for locksmiths, the B500 Series deadbolt can be fitted with any Schlage cylinder, fits virtually every door you service, enhances lock strength on the jamb side of the door and will change forever the way you look at deadbolts.
-
Adjustable backset with lock-in-place helix design
-
Integrated anti-pry shield protects latch
-
Thicker metal security strike back-up on jamb side
-
Security strike on jamb has third screw for stronger, deeper anchoring
-
Added space inside strike box for true deadlatch
-
Seamless steel latch construction along the entire length of the bolt housing
-
10% larger diameter deadbolt
-
Zinc bolt with spinning hardened steel pin inside
-
Tapered front housing that can’t be unscrewed
-
Integrated trim piece for fewer pieces out of the box
-
Large, easy-to-use, ADA compliant thumbturn
-
Meets UL 10B andd UL 10C requirements
Manufacturer | Schlage |
SKU | B560P 626 |
Grade | Grade 2 |
Installation | Commercial |
Origin | — |
Unit of Measure | Each |
Finish | |
Finish |
626/US26D |
Finish Description | Satin Chrome |
Function |
560-Single Cylinder Deadbolt Lock |
ANSI Function |
E0152 - Single Cylinder Deadbolt |
Cylinder Type |
SFIC Prep Less Core |
Door Thickness | 1-5/8 In. - 2 In. |
Std. Latch Number | 12-287 |
Std. Latch Type | Deadbolt |
Std. Latch Backset Dim | Adjustable 2-3/8 In. and 2-3/4 In. |
Lock Face Size | 2-1/4 In. x 1 In. |
Bolt Projection | 1 In. |
Std. Strike Number | 10-094 |
Std. Strike Type | Flat |
Std. Strike Height | 2-3/4 In. |
Std. Strike Width | 1-1/8 In. |
Dust Box | None |
Product Type | Deadbolts |
