Technical Specs
| Function |
9010-Passage Latch
|
| ANSI Function |
F01 - Passage
|
| Lever/Knob Design |
02 Lever
|
| Lever/Knob Design Family |
Straight Return Lever |
| Rose/Escutcheon Design |
A Rose
|
| Rose/Escutcheon Dimensions |
2-1/8" |
| Handing |
Field Reversible |
| Door Thickness |
1-3/4" |
| Std. Latch Type |
Spring Latch (Unguarded) |
| Std. Latch Backset Dim |
2-3/4" |
| Latch Bore Diameter |
2-3/4" |
| Lock Face Size |
8" x 1-1/4" |
| Bolt Projection |
3/4" Latch |
| Std. Strike Number |
10-072 1316 626 |
| Std. Strike Type |
ANSI Strike |
| Std. Strike Height |
4-7/8" |
| Std. Strike Width |
1-3/16" |
| Dust Box |
Plastic |
| Screws |
Combination |
| Product Type |
Mortise Lock |
Product Specs
| Manufacturer |
Schlage |
| Grade |
Grade 1 |
| Installation |
Commercial |
| Origin |
Mexico |
| Unit of Measure |
Each |
| UL Listing Type |
UL Listed |
| ANSI Number |
A156.13-2017 Series 1000, Grade 1 |
| BAA Qualified |
Yes |
| Limited Warranty |
3 Years |
| Fire Rated |
3 Hours {A} |

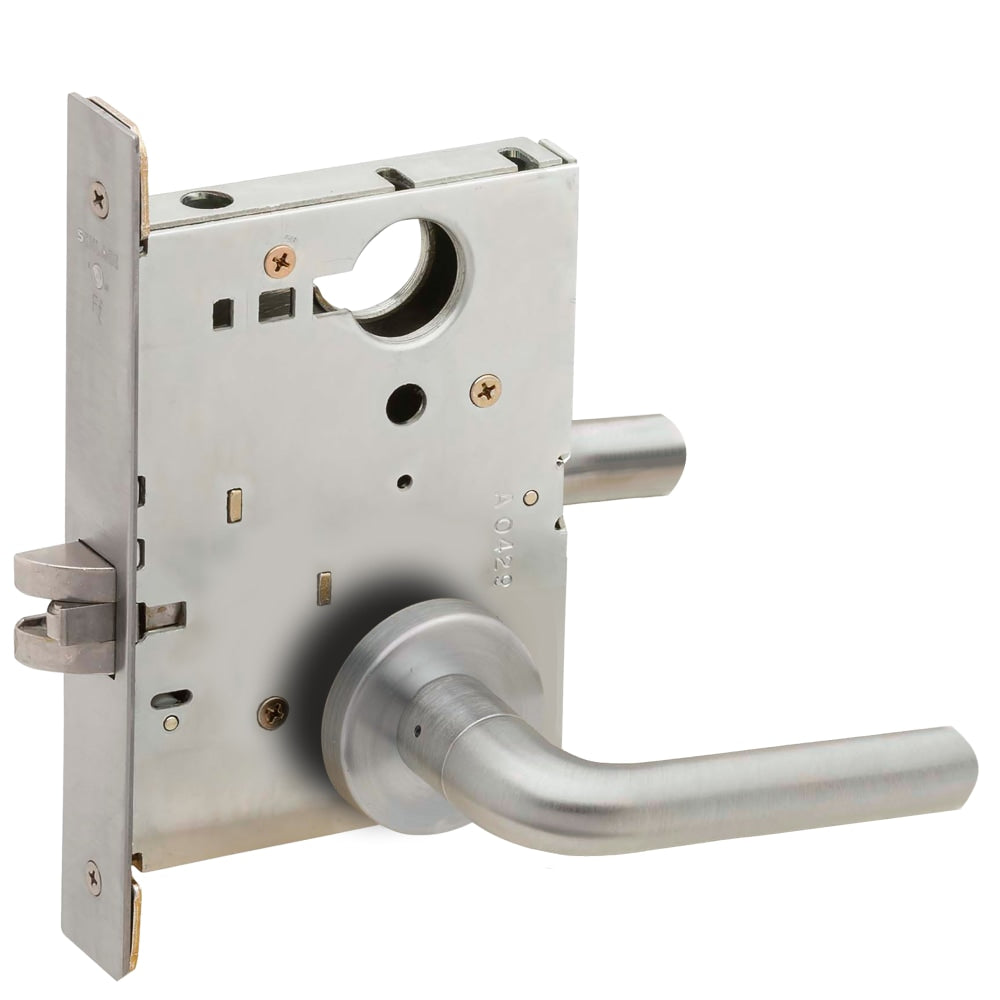

Schlage L9010-02A Passage Latch Mortise Lock, 02 Lever, A Rose, Field Reversible, Grade 1
Schlage L9010 02A Passage Latch Mortise Lock boasts a 02 Lever and A Rose, making it a versatile and reliable option. With the added benefit of being field reversible and boasting a Grade 1 rating, this lock is perfect for any commercial or residential setting.
- Passage latch: never locked and has no key or locking mechanism on either side of the door
- Latchbolt retracted by lever/knob from either side at all times
- Inside lever always free for immediate egress
L9000 Series Mortise Lock
Proven technology
The L Series is built to withstand the rigors of daily use without fail and is among the most durable, dependable and intelligent family of products on the market today. When you choose a Schlage lock you can have confidence you’ve chosen a solution that will provide protection at the most critical moments.
Comprehensive offering for every opening
Mechanical, wired electrified, wireless electronic and multi-point solutions allow a common aesthetic and consistent user experience throughout the building while lowering the total cost of ownership. And, with an extensive list of functions, keying, trim, levers and finish options the L Series works for any application.
L Mechanical Overview
The Schlage L Series has long been the benchmark for mortise locks. Beyond strength and security – it offers tremendous flexibility to allow it to meet the needs of most every application. The ability to suite across electronic, tubular, exit trim, and multi-point locks allows the Schlage L Series mortise lock to integrate seamlessly into any environment.
