Technical Specs
| Function | 9070-Classroom |
| Function Family | Classroom |
| ANSI Function | F05 - Classroom |
| Lever/Knob Design | 02 Lever |
| Lever/Knob Design Family | Curved Return Lever |
| Rose/Escutcheon Design | A Rose |
| Rose/Escutcheon Dimensions | 2-1/8" |
| Cylinder Type | Less Cylinder |
| Handing | Field Reversible |
| Door Thickness | 1-3/4" |
| Std. Latch Type | Dead Latch (Guarded) |
| Std. Latch Backset Dim | 2-3/4" |
| Lock Face Size | 8" x 1-1/4" |
| Bolt Projection | 3/4" Latch |
| Std. Strike Number | 10-072 1316 612 |
| Std. Strike Type | ANSI Strike |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-3/16" |
| Dust Box | Plastic |
| Screws | Combination |
| Product Type | Mortise Lock |
Product Specs
| Manufacturer | Schlage |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | Mexico |
| Unit of Measure | Each |
| UL Listing Type | UL Listed |
| ANSI Number | A156.13-2017 Series 1000, Grade 1 |
| BAA Qualified | Yes |
| Limited Warranty | 3 Years |
| Fire Rated | 3 Hours {A} |

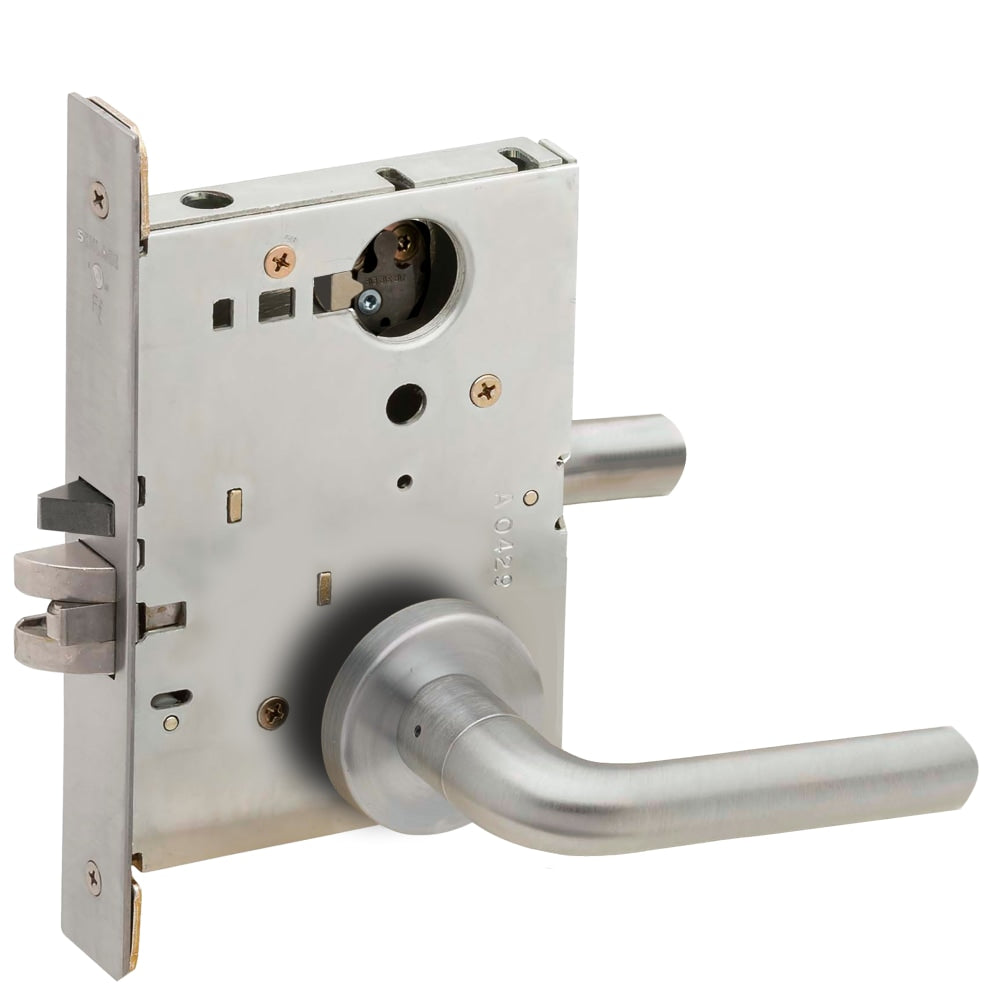

Schlage L9070L-02A Classroom Mortise Lock, Less Cylinder, 02 Lever, A Rose, Less Cylinder, Field Reversible, Grade 1
Schlage L9070L-02A Classroom Mortise Lock is a professional-grade product perfect for any commercial setting. This lock is easy to install and features a field reversible design, making it versatile and convenient. With a 02 Lever and A Rose, this lock is both functional and aesthetically pleasing.
- Latchbolt retracted by lever/knob from either side unless outside lever is locked by key
- Unlocked from outside by key
- Auxiliary latch deadlocks latchbolt when door is locked
- Inside lever always free for immediate egress
L9000 Series Mortise Lock
Proven technology
The L Series is built to withstand the rigors of daily use without fail and is among the most durable, dependable and intelligent family of products on the market today. When you choose a Schlage lock you can have confidence you’ve chosen a solution that will provide protection at the most critical moments.
Comprehensive offering for every opening
Mechanical, wired electrified, wireless electronic and multi-point solutions allow a common aesthetic and consistent user experience throughout the building while lowering the total cost of ownership. And, with an extensive list of functions, keying, trim, levers and finish options the L Series works for any application.
L Mechanical Overview
The Schlage L Series has long been the benchmark for mortise locks. Beyond strength and security – it offers tremendous flexibility to allow it to meet the needs of most every application. The ability to suite across electronic, tubular, exit trim, and multi-point locks allows the Schlage L Series mortise lock to integrate seamlessly into any environment.
