Description

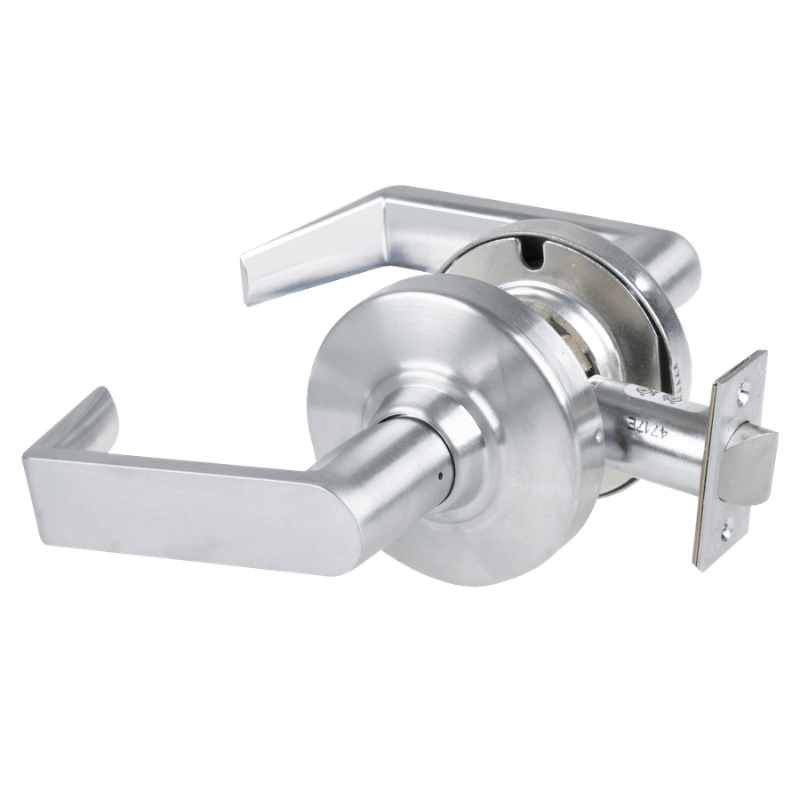

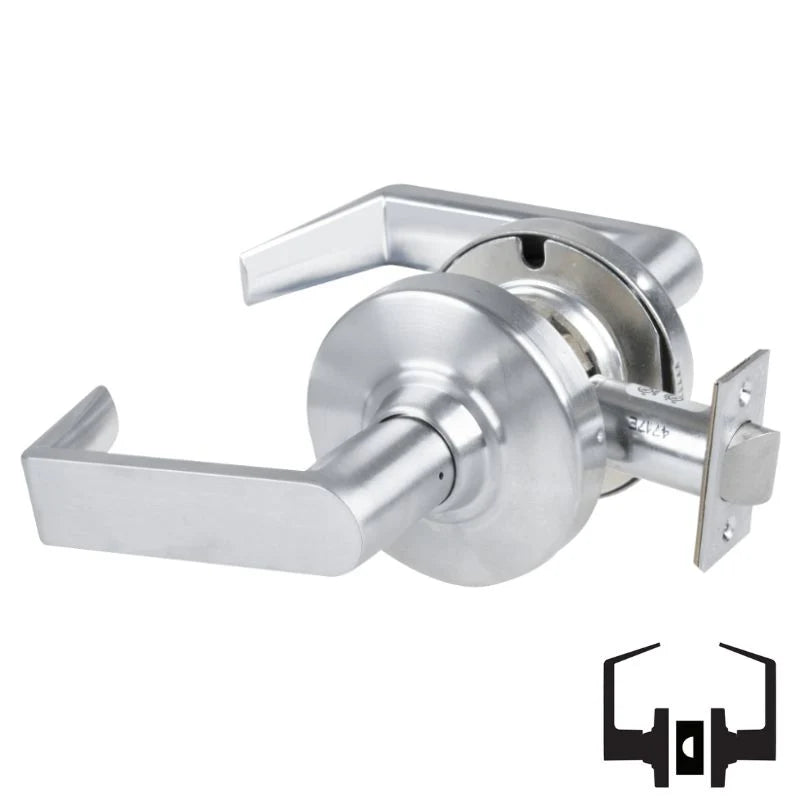

The Schlage ND10S-RHO-626 is a Cylindrical Passage Set, with a Rhodes Lever, that is Non-Keyed, is Non-Handed, has a 2-3/4" Backset, a 4-7/8" Strike, is Grade 1 and comes in a variety of finishes.
Passage Function - Both Levers always unlocked.
ND Mechanical Overview
The Schlage ND is extremely versatile and is regularly used in healthcare, education, government, office, retail and other commercial applications. With 31 mechanical functions, the ND's range spans from the simple (non-locking passage) to complex (double-cylinder security) to specialized (school time-out lock). Because the ND uses an ANSI 161 door prep, commonly used across cylindrical locks, it is ideal for both new construction and retrofit applications.
Significantly exceeds ANSI/BHMA A156.2 requirements for Grade 1 cylindrical locks
31 mechanical functions
Nine lever designs, two rose designs
10 available finishes
Supports standard, SFIC and FSIC cylinder formats
Multiple key systems available – open, patented, restricted, geographic exclusive, UL437
Support for 10 non-Schlage cores
Product Specs
Manufacturer |
Schlage |
SKU |
ND10S RHO |
Grade |
Grade 1 |
Installation |
Commercial |
Origin |
Mexico |
Unit of Measure |
Each |
UL Listing Type |
UL/cUL Listed |
ANSI Number |
ANSI A156.2 Series 4000, Grade 1 |
BAA Qualified |
Yes |
Limited Warranty |
10 Years |
Fire Rated |
3 Hours {A} |
ADA Compliance |
Yes |
Technical Specs
Function |
10 Passage Latch |
Function Family |
Passage |
ANSI Function |
F75 - Passage |
Lever/Knob Design |
RHO Rhodes Lever |
Lever/Knob Design Family |
Straight Return Lever |
Rose/Escutcheon Design |
3-7/16" Rose Diameter |
Rose/Escutcheon Dimensions |
3-7/16" |
Cylinder Type |
Non-Keyed |
Handing |
Non-handed |
Door Thickness |
1-5/8 In. to 2-1/8 In. |
Std. Latch Number |
13-248 |
Std. Latch Type |
Springlatch |
Std. Latch Backset Dim |
2-3/4 In. |
Latch Bore Diameter |
1 In. |
Lock Face Size |
1-1/8 In. x 2-1/4 In. |
Bolt Projection |
1/2 In. |
Bore Hole Diameter |
2-1/8 In. |
Std. Strike Number |
10-025 |
Std. Strike Type |
ANSI Strike |
Std. Strike Height |
4-7/8 In. |
Std. Strike Width |
1-1/4 In. |
Screws |
Wood/Machine Screws |
Product Type |
Cylindrical Lock |
