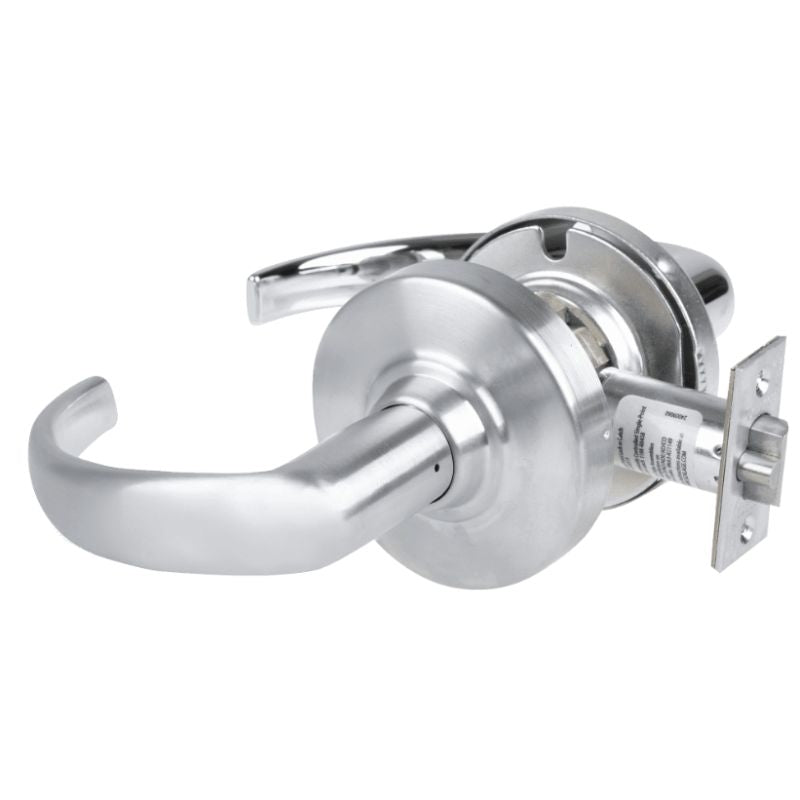

Schlage ND12DEL-SPA-626-RX Electrified Cylindrical Lock, Exit Function, Sparta Lever, Request to Exit, 12-24V DC, Fail Safe, 2-3/4‟ Backset, No Cylinder Override, Grade 1, Satin Chrome Finish

Schlage ND12DEL-626 Electrified Cylindrical Lock features an exit function, a satin chrome finish, and a Fail Safe mechanism. It operates on 12-24V DC and has a 2-3/4‟ backset. The levers adds both style and functionality, making this lock a Grade 1 product recommended for its superior performance.

• Lever both sides; deadlatch

• Powered state: outside lever continuously locked (when in EL mode)

• When power is removed (via switch or power failure), in EL mode either lever will retract latch
• Inside lever always free for immediate egress

Note: Auto detects 12 or 24V DC. Chassis mounted switch allows field selectable EL/EU setting.
Ordering: Unless EL or EU is specified, order will default to an EU setting. Optional RX function can be ordered configured by specifying RX under special options or add later using kit part N123-062.

ND Series Electrified Lever Locks

Electrified Schlage cylindrical locks offer superior energy efficiency and flexibility in wired electrified applications.

The electrified ND is ideally used in:

• High-traffic areas, where line power ensures continuous operation
• New construction, where electrified door prep, hinges, and wiring can easily be incorporated into the building

Key Features
All mechanical features plus:

• Auto-detecting 12-24VDC input
• Selectable EL/EU operation
• Low 0.23 amp max current draw that allows multiple locks on a single power supply
• Low 0.010 amp holding current that eliminates "hot levers" in electrically locked applications
• Modular Request to Exit (RX) that can be added at any time
• Inventory friendly–one lock supports 12-24V, EL, or EU, with or without RX
• Six electrified functions for application flexibility
