Technical Specs
| Function |
170 Single Dummy
|
| Function Family |
Dummy |
| Lever/Knob Design |
SPA Sparta Lever
|
| Lever/Knob Design Family |
Curved Return Lever |
| Rose/Escutcheon Design |
3-7/16" Rose Diameter
|
| Rose/Escutcheon Dimensions |
3-7/16" |
| Cylinder Type |
Non-Keyed
|
| Handing |
Non-handed |
| Door Thickness |
1-5/8 In. to 2-1/8 In. |
| Screws |
Wood/Machine Screws |
| Product Type |
Cylindrical Lock |
Product Specs
| Manufacturer |
Schlage |
| SKU |
ND170 SPA |
| Grade |
Grade 1 |
| Installation |
Commercial |
| Origin |
Mexico |
| Unit of Measure |
Each |
| UL Listing Type |
UL/cUL Listed |
| ANSI Number |
ANSI A156.2 Series 4000, Grade 1 |
| BAA Qualified |
Yes |
| Limited Warranty |
10 Years |
| Fire Rated |
3 Hours {A} |
| ADA Compliance |
Yes |

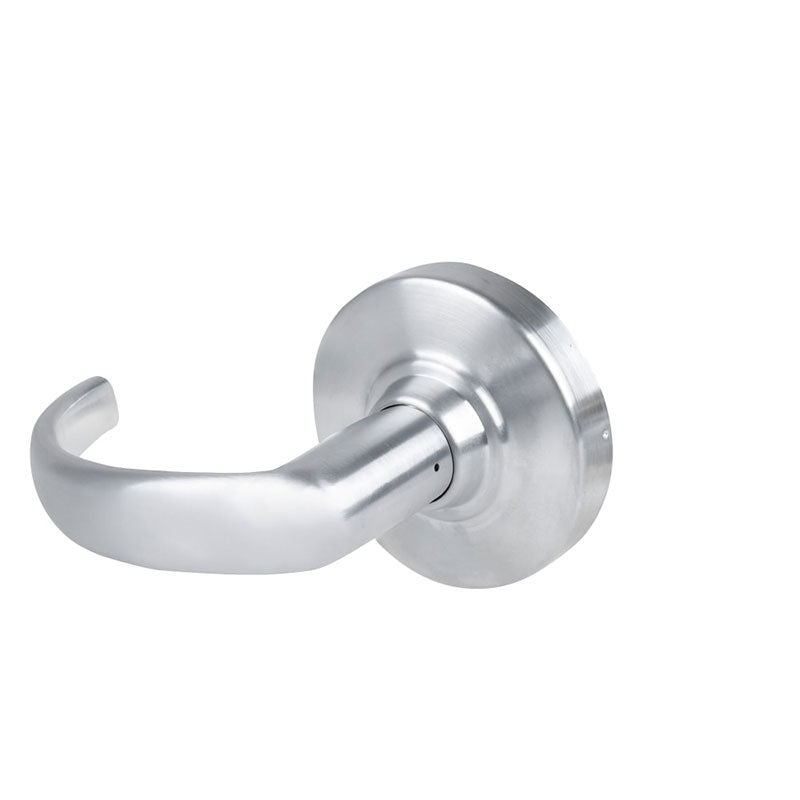

The Schlage ND170-SPA-626 is a Cylindrical Single Dummy Trim, with an Sparta Lever, that is Non-Keyed, is Non-Handed, is Grade 1, and comes in a variety of finishes.
Single Dummy Function- Dummy trim for one side of door. Used for door pull or as matching inactive trim.
ND Mechanical Overview
The Schlage ND is extremely versatile and is regularly used in healthcare, education, government, office, retail and other commercial applications. With 31 mechanical functions, the ND's range spans from the simple (non-locking passage) to complex (double-cylinder security) to specialized (school time-out lock). Because the ND uses an ANSI 161 door prep, commonly used across cylindrical locks, it is ideal for both new construction and retrofit applications.
- Significantly exceeds ANSI/BHMA A156.2 requirements for Grade 1 cylindrical locks
- 31 mechanical functions
- Nine lever designs, two rose designs
- 10 available finishes
- Supports standard, SFIC and FSIC cylinder formats
- Multiple key systems available – open, patented, restricted, geographic exclusive, UL437
- Support for 10 non-Schlage cores
