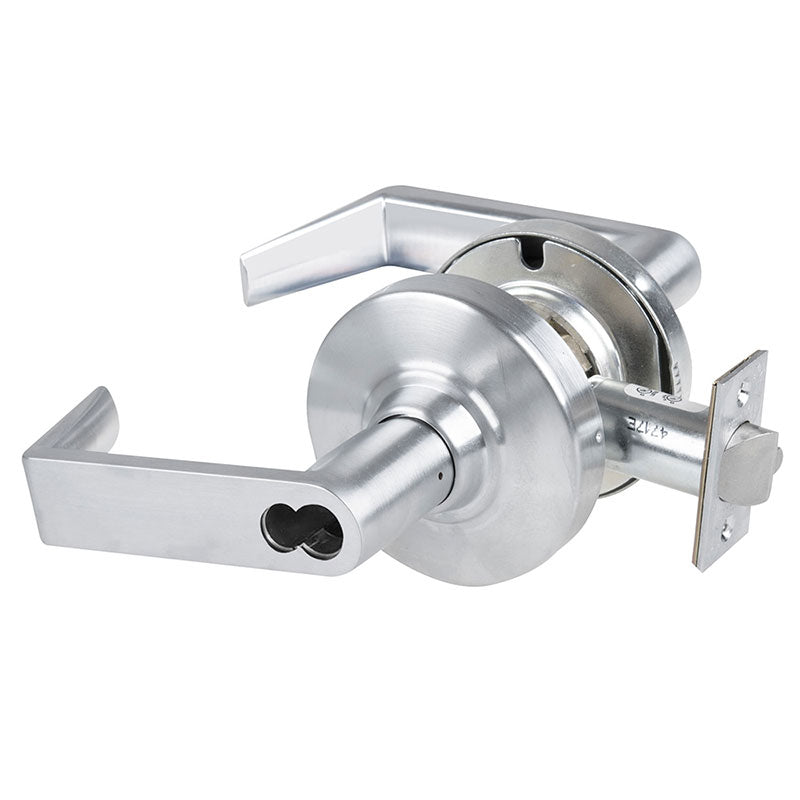

Schlage ND25x80BD RHO 626 XN12-005 Storeroom Exit Lock, Rhodes Lever, SFIC Less Core, Satin Chrome Finish

  • SKU: ND25x80BDRHO626XN12005

Schlage ND25x80BD RHO 626 XN12-005 Storeroom Exit Lock, Rhodes Lever, SFIC Less Core, Satin Chrome Finish

  • SKU: ND25x80BDRHO626XN12005
Sale price$1,202.00/ea
In Stock
In Stock

The Schlage ND25x80BD RHO 626 XN12-005 is a Storeroom Exit Function Lock,  that has a Rhodes Style Lever, is SFIC Prepped, comes Less Core, has a 2 3/4 Backset, with a 4 7/8‟ Strike, and comes in Satin Chrome Finish.

The Schlage ND is extremely versatile and is regularly used in healthcare, education, government, office, retail and other commercial applications. With 31 mechanical functions, the ND's range spans from the simple (non-locking passage) to complex (double-cylinder security) to specialized (school time-out lock). Because the ND uses an ANSI 161 door prep, commonly used across cylindrical locks, it is ideal for both new construction and retrofit applications.

  • Significantly exceeds ANSI/BHMA A156.2 requirements for Grade 1 cylindrical locks
  • 31 mechanical functions
  • Nine lever designs, two rose designs
  • 10 available finishes
  • Supports standard, SFIC and FSIC cylinder formats
  • Multiple key systems available – open, patented, restricted, geographic exclusive, UL437
  • Support for 10 non-Schlage cores
Manufacturer Schlage
SKU ND25x80BD RHO 626 XN12-005
Grade Grade 1
Installation Commercial
Origin Mexico
Unit of Measure Each
UL Listing Type UL/cUL Listed
ANSI Number ANSI A156.2 Series 4000, Grade 1
BAA Qualified Yes
Limited Warranty 10 Years
Fire Rated 3 Hours {A}
ADA Compliance Yes
Finish 626/US26D
Finish Description Satin Chrome
Finish Family Matte Silver





Function 25x80 Storeroom Exit Lock
Function Family Exit
Lever/Knob Design RHO - Rhodes Lever
Lever/Knob Design Family Straight Return Lever
Rose/Escutcheon Design 3 7/16" Rose Diameter
Rose/Escutcheon Dimensions 3 7/16"
Cylinder Type SFIC Prep Less Core
Handing Non-handed
Door Thickness 1 5/8 In. to 2 1/8 In.
Std. Latch Number 13-247
Std. Latch Type Deadlatch
Std. Latch Backset Dim 2 3/4 In.
Latch Bore Diameter 1 In.
Lock Face Size 1 1/8 In. x 2 1/4 In.
Bolt Projection 1/2 In.
Bore Hole Diameter 2 1/8 In.
Std. Strike Number 10-025
Std. Strike Type ANSI Strike
Std. Strike Height 4 7/8 In.
Std. Strike Width 1 1/4 In.
Screws Wood/Machine Screws
Product Type Cylindrical Loc
