Technical Specs
| Function |
25x80-Storeroom Exit Lock |
| Function Family | Exit |
| Lever/Knob Design |
RHO - Rhodes Lever |
| Lever/Knob Design Family | Straight Return Lever |
| Rose/Escutcheon Design |
3-7/16" Rose Diameter |
| Rose/Escutcheon Dimensions | 3-7/16" |
| Cylinder Type |
Cylinder |
| Num Pins | 6 |
| Key(s) | Cut |
| Num of Keys | 2 |
| Handing | Non-handed |
| Door Thickness | 1-5/8" to 2-1/8" |
| Std. Latch Number | 13-247 |
| Std. Latch Type | Deadlatch |
| Std. Latch Backset Dim | 2-3/4" |
| Latch Bore Diameter | 1 In. |
| Lock Face Size | 1-1/8" x 2-1/4" |
| Bolt Projection | 1/2" |
| Bore Hole Diameter | 2-1/8 In. |
| Std. Strike Number | 10-025 |
| Std. Strike Type | ANSI Strike |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Wood/Machine Screws |
| Product Type | Cylindrical Lock |
Product Specs
| Manufacturer | Schlage |
| SKU | ND25x80PD RHO 626 XN12-005 |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | Mexico |
| Unit of Measure | Each |
| UL Listing Type | UL/cUL Listed |
| ANSI Number | ANSI A156.2 Series 4000, Grade 1 |
| BAA Qualified | Yes |
| Limited Warranty | 10 Years |
| Fire Rated | 3 Hours {A} |
| ADA Compliance | Yes |
| Finish | |
| Finish |
626/US26D |
| Finish Description | Satin Chrome |
| Finish Family | Matte Silver |

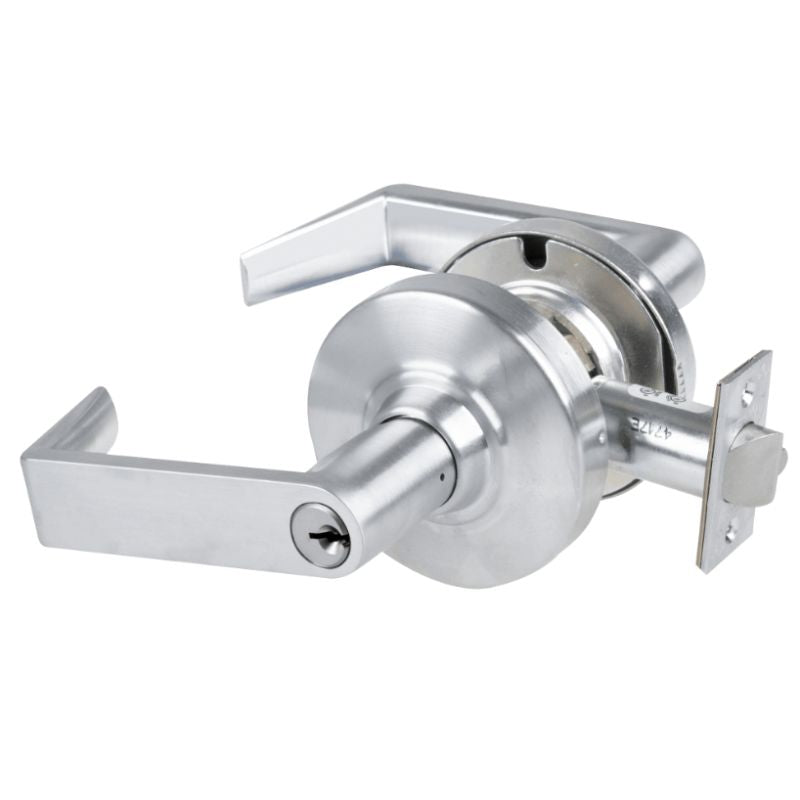

Schlage ND25x80PD RHO 626-KD XN12-005, Storeroom Exit Lock, x Blank Plate, Rhodes Lever, Schlage "C" Keyed Random, [2] Keys, 2 3/4 Backset, 4 7/8" Strike Garde 1, Satin Chrome, Non-handed
The Schlage ND25x80PD RHO 626 XN12-005 is a Storeroom Exit Function Lock, that has a Rhodes Style Lever, Schlage "C" Keyed Random, [2] Keys has a 2 3/4 Backset, with a 4 7/8‟ Strike, and comes in Satin Chrome Finish.
Schlage ND Series
The Schlage ND is extremely versatile and is regularly used in healthcare, education, government, office, retail and other commercial applications. With 31 mechanical functions, the ND's range spans from the simple (non-locking passage) to complex (double-cylinder security) to specialized (school time-out lock). Because the ND uses an ANSI 161 door prep, commonly used across cylindrical locks, it is ideal for both new construction and retrofit applications.
- Significantly exceeds ANSI/BHMA A156.2 requirements for Grade 1 cylindrical locks
- 31 mechanical functions
- Nine lever designs, two rose designs
- 10 available finishes
- Supports standard, SFIC and FSIC cylinder formats
- Multiple key systems available – open, patented, restricted, geographic exclusive, UL437
- Support for 10 non-Schlage cores
Storeroom lock
- Outside lever is fixed.
- Entrance by key only.
- Inside lever always free for immediate egress.
