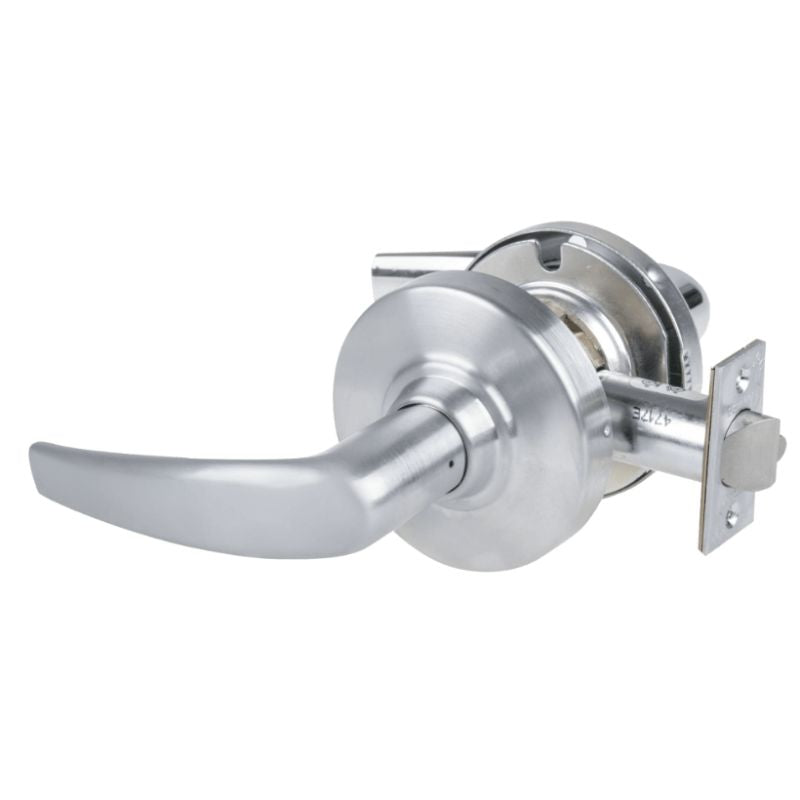

Schlage ND30D-ATH-626 XN12-007 Patio Lock, Non-Keyed, Satin Chrome

Technical Specs

Product Specs

Schlage ND30D-ATH-626 XN12-007 Patio Lock, Athens Lever, Non-Keyed, 2 3/4 Backset, 4 7/8 Strike, Grade 1, Satin Chrome Finish

Schlage ND30D-626 XN12-007 Patio Lock is a non-keyed lock with a 2 3/4 inch backset and a 4 7/8 inch strike. This lock is Grade 1, ensuring its high level of security and reliability. The satin chrome finish adds a sleek and professional touch to any door.

• Lever outside; push button in lever inside; springlatch

• In unlocked state latch is retracted by either lever

• Outside lever is made inoperative by pushing button on inside lever

• Rotating inside lever retracts latch and releases button unlocking outside lever; closing door also unlocks preventing lockout

• Inside lever always free for immediate egress

ND Series Lever Locks

Performance beyond Grade 1

The Schlage® ND family significantly exceeds BHMA Grade 1 requirements for cycle, lever torque, hammer blow, lever pull and other tests. This means confidence that the lock will last—whether the application calls for high abuse resistance or just operation over millions of cycles— without any degradation in performance.

Comprehensive offering for every opening

Mechanical, wired electrified and wireless electronic solutions allow a common aesthetic and consistent user experience throughout the building while lowering the total cost of ownership.

World-class design

A proven, easy to install product with extensive function, keying, trim and finish capabilities that work in nearly any applications.

ND Mechanical Overview

The Schlage ND is extremely versatile and is regularly used in healthcare, education, government, office, retail and other commercial applications. With 31 mechanical functions, the ND's range spans from the simple (non-locking passage) to complex (double-cylinder security) to specialized (school time-out lock). Because the ND uses an ANSI 161 door prep, commonly used across cylindrical locks, it is ideal for both new construction and retrofit applications.

• Significantly exceeds ANSI/BHMA A156.2 requirements for Grade 1 cylindrical locks

• 31 mechanical functions

• Nine lever designs, two rose designs

• 10 available finishes

• Supports standard, SFIC and FSIC cylinder formats

• Multiple key systems available – open, patented, restricted, geographic exclusive, UL437

• Support for 10 non-Schlage cores
