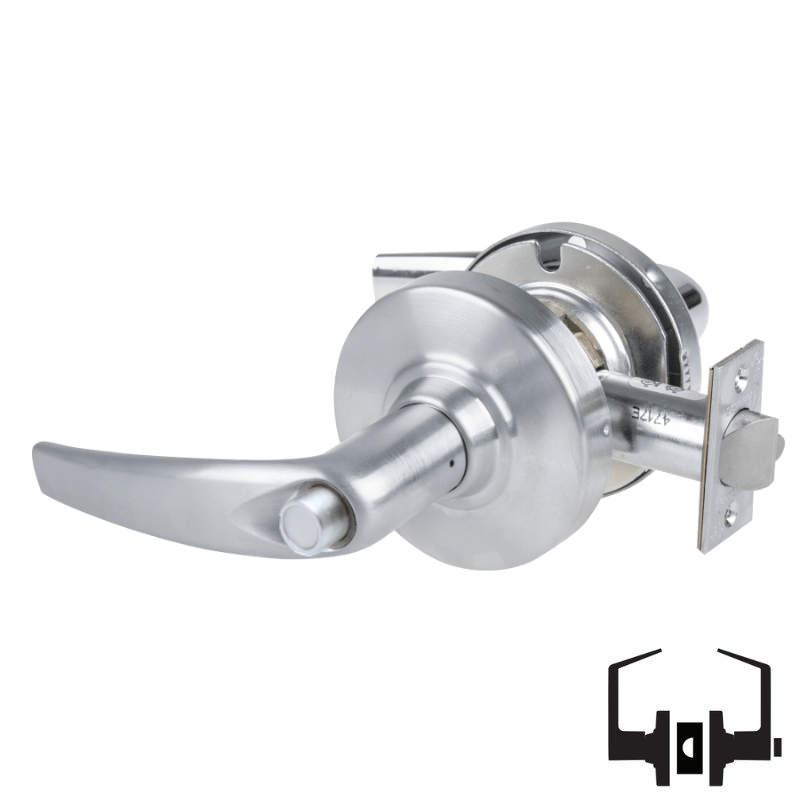

Schlage ND40S-ATH Cylindrical Privacy Lockset, Athens Lever, Non-Keyed, Grade 1

SKU: ND40SATH626

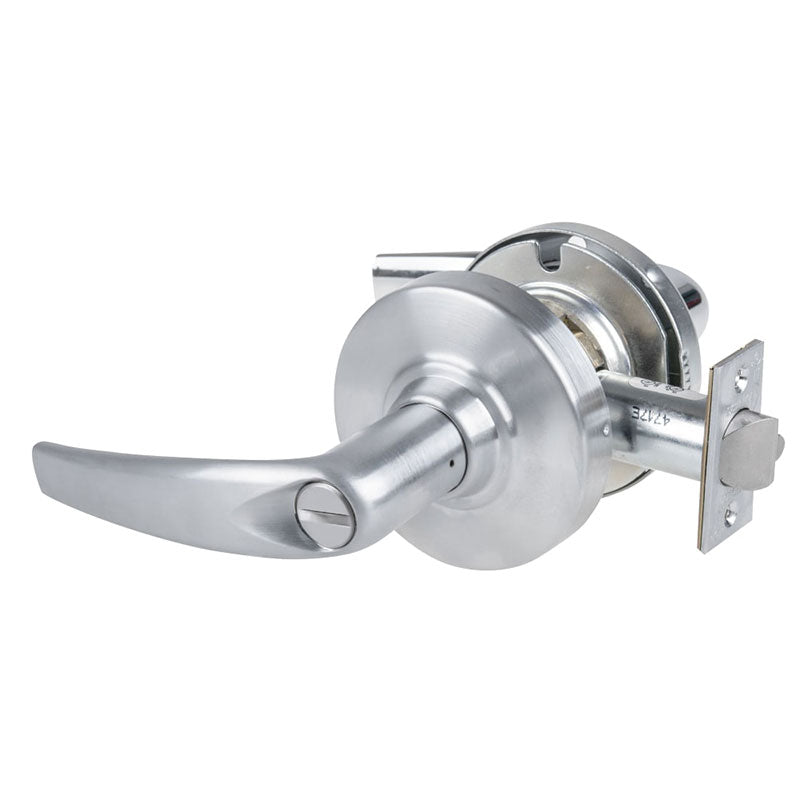

Schlage ND40S-ATH-626 Cylindrical Privacy Lockset

All SCHLAGE Products

Technical Specs

Function	40 - Bed, Bathroom, Privacy Lock
Function Family	Privacy
ANSI Function	F76 - Privacy
Lever/Knob Design	ATH Athens Lever
Lever/Knob Design Family	Curved Lever
Rose/Escutcheon Design	3-7/16" Rose Diameter
Rose/Escutcheon Dimensions	3-7/16"
Cylinder Type	Non-Keyed
Handing	Non-handed
Door Thickness	1-5/8 In. to 2-1/8 In.
Std. Latch Number	13-248
Std. Latch Type	Springlatch
Std. Latch Backset Dim	2-3/4 In.
Latch Bore Diameter	1 In.
Lock Face Size	1-1/8 In. x 2-1/4 In.
Bolt Projection	1/2 In.
Bore Hole Diameter	2-1/8 In.
Std. Strike Number	10-025
Std. Strike Type	ANSI Strike
Std. Strike Height	4-7/8 In.
Std. Strike Width	1-1/4 In.
Screws	Wood/Machine Screws
Product Type	Cylindrical Lock

Product Specs

Manufacturer	Schlage
SKU	ND40S ATH
Grade	Grade 1
Installation	Commercial
Origin	Mexico
Unit of Measure	Each
UL Listing Type	UL/cUL Listed
ANSI Number	ANSI A156.2 Series 4000, Grade 1
BAA Qualified	Yes
Limited Warranty	10 Years
Fire Rated	3 Hours {A}
ADA Compliance	Yes

The Schlage ND40S-ATH is a Cylindrical Privacy Lockset, with an Athens Lever, that is Non-Keyed, is Non-Handed, has a 2-3/4" Backset, a 4-7/8" Strike, is Grade 1 and comes in a variety of finishes.

Privacy Function - Push-button locking. Can be opened from outside with small screwdriver. Turning inside lever or closing door releases button.
Schlage ND40S Function Chart

ND Mechanical Overview

The Schlage ND is extremely versatile and is regularly used in healthcare, education, government, office, retail and other commercial applications. With 31 mechanical functions, the ND's range spans from the simple (non-locking passage) to complex (double-cylinder security) to specialized (school time-out lock). Because the ND uses an ANSI 161 door prep, commonly used across cylindrical locks, it is ideal for both new construction and retrofit applications.

Significantly exceeds ANSI/BHMA A156.2 requirements for Grade 1 cylindrical locks
31 mechanical functions
Nine lever designs, two rose designs
10 available finishes
Supports standard, SFIC and FSIC cylinder formats
Multiple key systems available – open, patented, restricted, geographic exclusive, UL437
Support for 10 non-Schlage cores
