Description

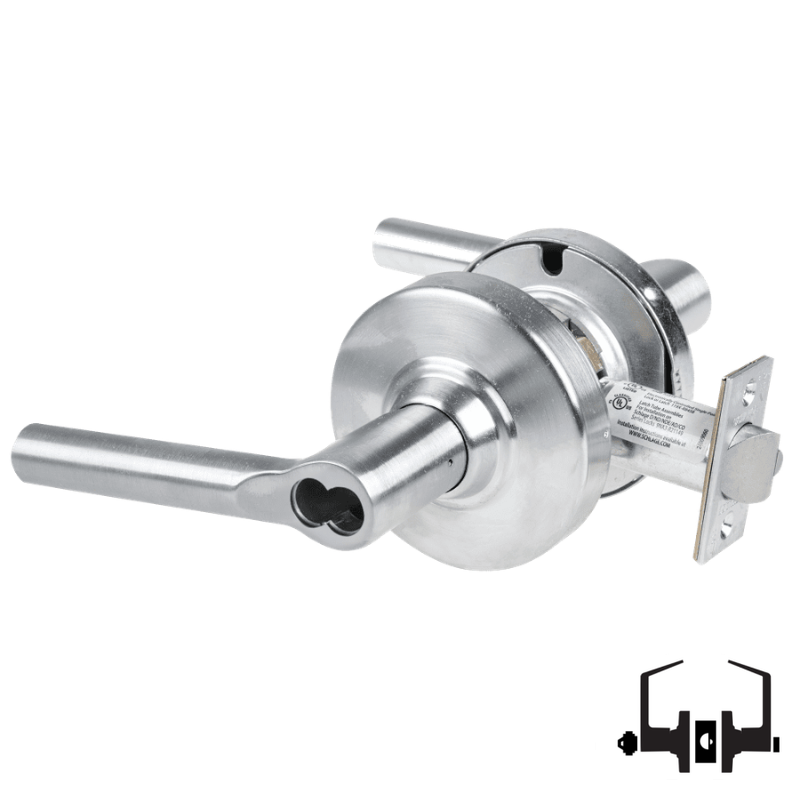

Schlage ND50-BD-BRW Cylindrical Entrance/Office Lock, Broadway Lever, SFIC Prep Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed
The Schlage ND50-BD-BRW Cylindrical Entrance/Office Lock is a heavy-duty Grade 1 cylindrical lock built for high-traffic commercial openings that need dependable security and long service life. This configuration includes the Broadway lever, SFIC prep less core construction, a 2-3/4 inch backset, and a 4-7/8 inch strike for compatible door and frame preparation. Designed as a non handed lock, it supports flexible installation without field handing concerns. The ND50 entrance/office function combines strong mechanical performance with the durability and reliability expected from the Schlage ND Series for schools, offices, healthcare facilities, and other demanding commercial environments.
Features
- ND50-BD-BRW configuration provides a Schlage cylindrical entrance/office lock for commercial applications.
- Broadway lever design offers a clean, modern lever style suited for institutional and office openings.
- SFIC prep less core allows the lock to accept a small format interchangeable core supplied separately.
- 2-3/4 inch backset supports door preparation requiring the longer commercial backset.
- 4-7/8 inch strike is included for the specified frame strike preparation.
- Grade 1 construction meets high-use commercial durability requirements.
- Non handed design allows installation on either right-hand or left-hand doors.
Functional Details
The ND50 entrance/office function is commonly used where exterior or corridor access must be controlled by key while allowing safe and convenient egress from the inside. This function is well suited for offices, main entries, and similar commercial doors that require outside locking capability with inside lever operation.
- Outside lever locked by push button inside. Turning inside lever or closing door releases button. Outside lever unlocked by key. Inside lever always free for immediate egress.
- Auxiliary latch deadlocks latchbolt when door is closed.
Included Components
This Schlage ND50-BD-BRW lock is supplied as a cylindrical lockset with Broadway lever trim, SFIC prep less core configuration, a 2-3/4 inch backset, and a 4-7/8 inch strike. The interchangeable core is not included.
Product Specifications
| Manufacturer | Schlage |
|---|---|
| Series | ND Series |
| Model | ND50-BD-BRW |
| Product Type | Cylindrical Entrance/Office Lock |
| Lever Design | Broadway Lever |
| Cylinder Preparation | SFIC Prep Less Core |
| Handing | Non Handed |
| Backset | 2-3/4 Inch |
| Strike | 4-7/8 Inch Strike |
| Grade | ANSI/BHMA Grade 1 |
| ANSI Number | F109 |
| UL Listing Type | UL listed for 3-hour fire door |
| Unit of Measure | Each |
| Origin | Made in USA of domestic and imported materials |
| BAA Qualified | Yes |
| Limited Warranty | 10 Year Mechanical Warranty and 3 Year Electro Mechanical Warranty |
| SKU | ND50-BD-BRW |
Technical Specifications
| Lock Function | Entrance/Office |
|---|---|
| ANSI Function Number | F109 |
| Grade | Grade 1 |
| Door Thickness Range | 1-3/8 Inch to 2-1/8 Inch |
| Backset | 2-3/4 Inch |
| Strike Size | 4-7/8 Inch |
| Latchbolt Throw | 1/2 Inch |
| Deadlatch | Auxiliary latch deadlocks latchbolt when door is closed |
| Handing | Non Handed |
| Cylinder Type | SFIC Prep Less Core |
| Lever Style | Broadway |
| Fire Rating | 3 Hour |
| Cycle Testing | 3,100,000 cycles |
| Latch Front | 1-1/8 Inch x 2-1/4 Inch |
| Strike Type | ANSI strike |
