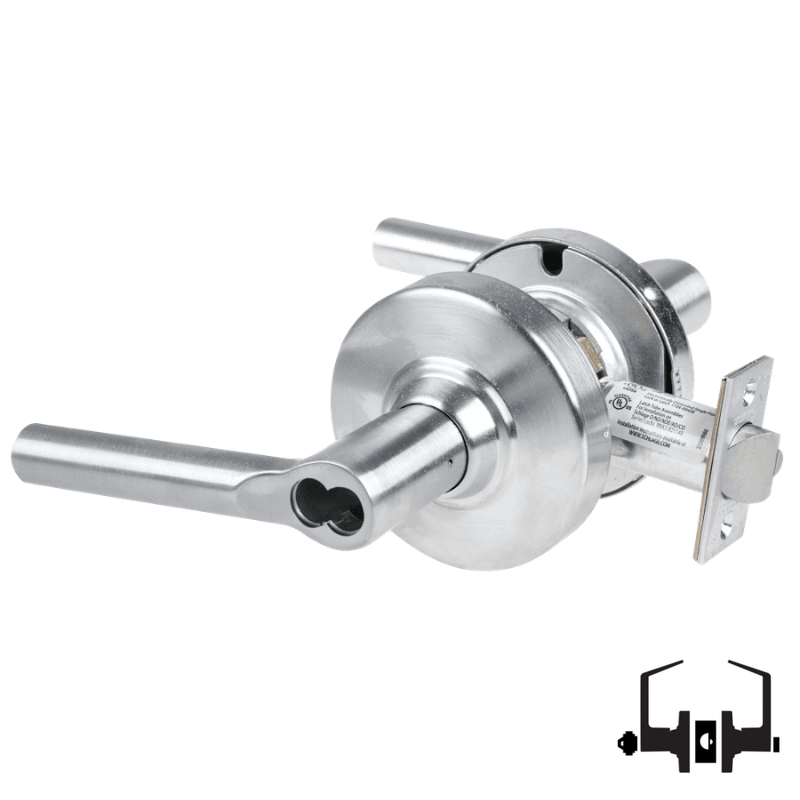

Schlage ND50-JD-BRW Cylindrical Entrance/Office Lock, Broadway Lever, Schlage FSIC Full Sized Interchangeable Core, Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed

The Schlage ND50-JD-BRW Cylindrical Entrance/Office Lock is a heavy-duty Grade 1 lockset built for commercial openings that need dependable entrance and office security. This configuration includes the Broadway lever design, Schlage FSIC full sized interchangeable core prep, and is supplied less core for flexible keying. It is built with a 2-3/4 inch backset and a 4-7/8 inch strike for standard commercial door applications. The ND50-JD-BRW is non handed for easier installation and field flexibility, and as part of the Schlage ND Series, it is designed to deliver strong performance, durability, and consistent operation in demanding institutional, office, and public building environments.

Features

• ND50-JD function provides cylindrical entrance/office lock operation for commercial door openings.
• Broadway lever trim offers a clean, modern lever style used across the Schlage ND Series.
• Prepared for a Schlage FSIC full sized interchangeable core to support flexible key system management.
• Supplied less core so the interchangeable core can be ordered separately to match the facility keying system.
• Configured with a 2-3/4 inch backset for commercial door preparation compatibility.
• Includes a 4-7/8 inch strike for proper frame installation.
• Grade 1 construction meets the highest ANSI/BHMA performance grade for cylindrical locks.
• Non handed design allows installation on either right-hand or left-hand doors.

Functional Details

The ND50 entrance/office function is designed for doors that need key control from the outside while allowing convenient egress from the inside. This makes it a practical choice for offices, main entrances, and similar commercial spaces where security and day-to-day usability are both important.

• Latchbolt retracted by lever from either side unless outside lever is locked by push button inside.
• Outside lever unlocked by key outside or by turning inside lever.
• Inside push button locks outside lever only.
• Inside lever always free for immediate egress.
• Auxiliary latch deadlocks latchbolt when door is closed.

Included Components

This Schlage ND50-JD-BRW lock is supplied less core and is prepared to accept a Schlage FSIC full sized interchangeable core. It is configured with a 2-3/4 inch backset and includes a 4-7/8 inch strike. The non handed chassis supports installation on either door hand without requiring handing changes.
