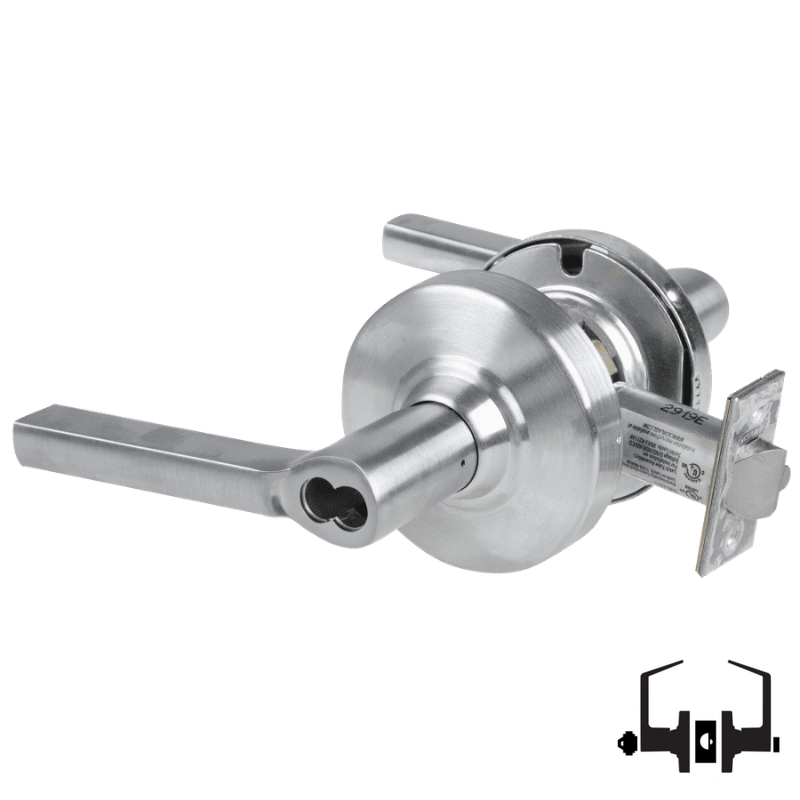

Schlage ND50-JD-LAT Cylindrical Entrance/Office Lock, Latitude Lever, Schlage FSIC Full Sized Interchangeable Core, Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed

The Schlage ND50-JD-LAT Cylindrical Entrance/Office Lock combines heavy-duty Grade 1 performance with the clean look of a Latitude lever for commercial openings that need dependable security and everyday convenience. This cylindrical entrance/office lock is built for a Schlage FSIC full sized interchangeable core and is supplied less core, making it a practical choice for facilities using interchangeable core key systems. It is configured with a 2-3/4 inch backset, a 4-7/8 inch strike, and a non handed design for easier installation across door applications. The ND50-JD-LAT is part of Schlage’s ND Series for high-use commercial environments.

Features

• ND50-JD-LAT entrance/office function lock is designed for commercial cylindrical lock applications.
• Latitude lever trim provides a modern straight lever design.
• Prepared for a Schlage FSIC full sized interchangeable core for flexible key system management.
• Supplied less core so the interchangeable core can be ordered separately to match the facility keying system.
• Includes a 2-3/4 inch backset for compatible door preparation requirements.
• Furnished with a 4-7/8 inch strike for standard commercial frame applications.
• Grade 1 construction supports demanding, high-traffic use.
• Non handed design allows installation on either right-hand or left-hand doors.

Functional Details

The ND50 entrance/office function is intended for openings that need outside key control with free egress from the inside. In typical office use, the outside lever can be locked or unlocked by key, while the inside lever remains free for safe exit at all times. The Schlage FSIC full sized interchangeable core format also helps simplify rekeying and key system maintenance in larger facilities.

• Outside lever locked or unlocked by key from outside.
• Inside lever always unlocked.
• Push button on inside locks outside lever.
• Turning inside lever or closing door releases button.

Included Components

This lock is supplied less core and is prepared to accept a Schlage FSIC full sized interchangeable core. It is configured with a 2-3/4 inch backset and a 4-7/8 inch strike, and includes the Latitude lever trim in a non handed cylindrical lockset design.
