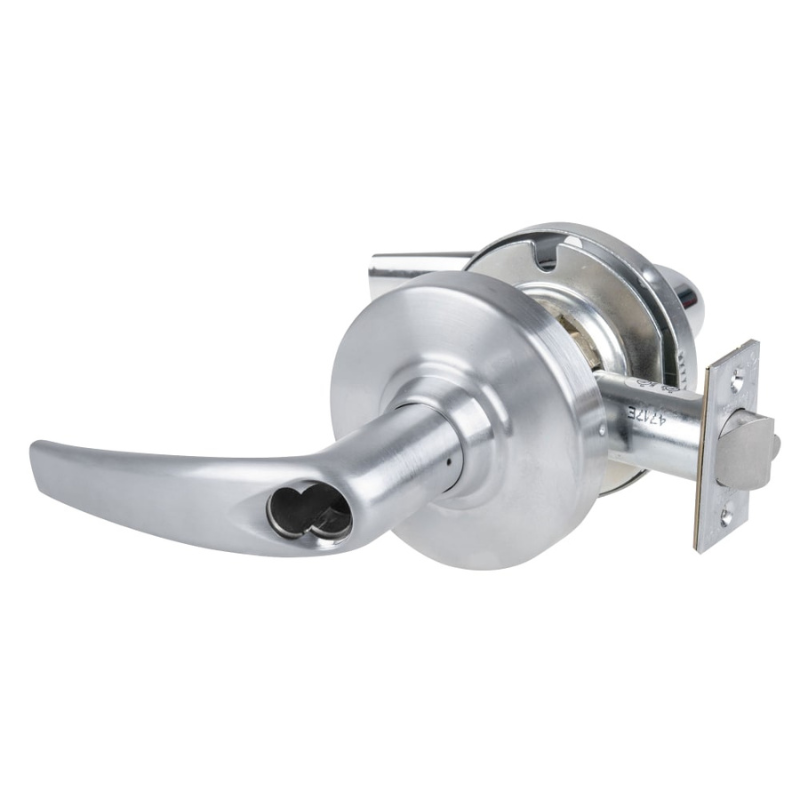

Schlage ND60BD-ATH-626 Cylindrical Vestibule Lockset, Athens Lever, Schlage SFIC Prep, Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, US26D Satin Chrome Finish
The Schlage ND60BD-ATH-626 is a premier, Grade 1 cylindrical vestibule lockset engineered to provide uncompromising security and durability in high-traffic commercial environments. This ANSI F88 function lock ensures consistent exterior protection, as the outside lever remains permanently locked and requires a key for entry, while the interior always allows for free egress. Designed with the elegant and ergonomic Athens (ATH) lever, this model provides a sophisticated, curved profile that is fully ADA compliant and meets all rigorous accessibility and safety codes. The "BD" configuration comes prepped for a Small Format Interchangeable Core (SFIC), enabling facility managers to perform instant rekeying without removing the hardware. Finished in a classic 626 Satin Chrome (US26D), this UL/cUL listed lockset features a 3-hour fire rating, a standard 2-3/4 inch backset, and a 4-7/8 inch strike, making it the ideal choice for dependable life-safety and security.
Features:
- Grade 1 Performance: Built for high-traffic commercial use, exceeding the industry's highest standards for durability and cycle life.
- Constant Exterior Security: The ND60 (F111) function ensures the outside lever is always locked, requiring a key for entry every time.
- Instant Rekeying: Prepped for Small Format Interchangeable Cores (SFIC), allowing for core swaps in seconds without removing the lock.
- ADA Compliant Design: The Athens (ATH) lever features a sophisticated, curved ergonomic design that fully complies with all ADA accessibility and safety codes.
- 3-Hour Fire Rating: UL/cUL listed for use on fire-rated doors, providing maximum life-safety protection in commercial buildings.
| Manufacturer | Schlage |
| SKU | ND60BD-ATH-626 |
| Grade | Grade 1 |
| Unit of Measure | Each |
| BAA Qualified | Yes |
| Installation | Commercial |
| Fire Rating | 3 Hours {A} |
| ADA Compliance | Yes |
| Limited Warranty | 10 Years |
| UL Listing | UL/cUL Listed |
| ANSI | ANSI A156.2 Series 4000, Grade 1 |
| Handing | Non-handed |
| Std. Strike Number |
10-025 |
| Lever/Knob Design |
ATH - Athens Lever |
|
Cylinder Type |
SFIC Prep Less Core |
| Std. Latch Type | Deadlatch |
| Screws | Wood/Machine Screws |
| Lever/Knob Design Family | Curved Lever |
|
Lock Face Size |
2-1/4" x 1-1/8" |
|
Bolt Projection |
1/2 In. |
|
Std. Strike Height |
4-7/8 In. |
| Std. Strike Width | 1-1/4 In. |
| ANSI Function | F88 |
| Std. Strike Type | ANSI Strike |
|
Std. Latch Backset Dim |
2-3/4 In. |
| Std. Latch Number | 13-247 |
| Rose/Escutcheon Design | 3-7/16" Rose Diameter |
| Rose/Escutcheon Dimensions | 3-7/16" |
| Door Thickness | 1-5/8 In. to 2-1/4 In. |
| Latch Bore Diameter | 1 In. |
| Bore Hole Diameter | 2-1/8 In. |
| Function Family | Vestibule |
| Function | 60-Vestibule Lock |
