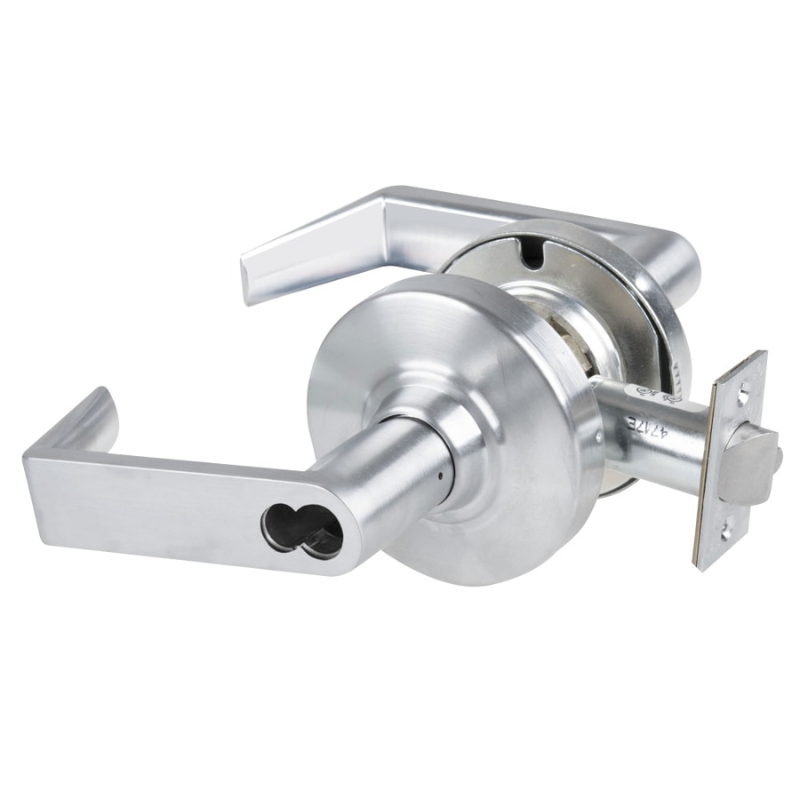

Schlage ND60BD-RHO-626 Cylindrical Vestibule Lockset, Rhodes Lever, Schlage SFIC Prep, Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, US26D Satin Chrome Finish
The Schlage ND60BD-RHO-626 is a heavy-duty, Grade 1 cylindrical vestibule lockset designed to provide maximum security and durability in high-traffic commercial environments. Engineered for reliability, this ANSI F88 function lock ensures the outside Rhodes (RHO) lever remains fixed, requiring key access for entry at all times while allowing for free egress from the interior. Featuring a sleek 626 Satin Chrome (US26D) finish, this lockset is prepped for a Small Format Interchangeable Core (SFIC) for seamless integration into existing master key systems. With a 3-hour fire rating, a standard 2-3/4 inch backset, and a 4-7/8 inch strike, the Schlage ND Series remains the industry benchmark for facility managers and contractors seeking a robust, ADA-compliant hardware solution that stands the test of time.
Features:
- Grade 1 Performance: Built for high-traffic commercial use, exceeding the industry's highest standards for durability and cycle life.
- Constant Exterior Security: The ND60 (F111) function ensures the outside lever is always locked, requiring a key for entry every time.
- Instant Rekeying: Prepped for Small Format Interchangeable Cores (SFIC), allowing for core swaps in seconds without removing the lock.
- ADA Compliant Design: The Rhodes (RHO) lever features an ergonomic, straight-return design that meets all accessibility and safety codes.
- 3-Hour Fire Rating: UL/cUL listed for use on fire-rated doors, providing maximum life-safety protection in commercial buildings.
| Manufacturer | Schlage |
| SKU | ND60-BD-RHO-626 |
| Grade | Grade 1 |
| Unit of Measure | Each |
| BAA Qualified | Yes |
| Installation | Commercial |
| Fire Rating | 3 Hours {A} |
| ADA Compliance | Yes |
| Limited Warranty | 10 Years |
| UL Listing | UL/cUL Listed |
| ANSI | ANSI A156.2 Series 4000, Grade 1 |
| Handing | Non-handed |
| Std. Strike Number |
10-025 |
| Lever/Knob Design |
RHO - Rhodes Lever |
|
Cylinder Type |
SFIC Prep Less Core |
| Std. Latch Type | Deadlatch |
| Screws | Wood/Machine Screws |
| Lever/Knob Design Family | Straight Return Lever |
|
Lock Face Size |
2-1/4" x 1-1/8" |
|
Bolt Projection |
1/2 In. |
|
Std. Strike Height |
4-7/8 In. |
| Std. Strike Width | 1-1/4 In. |
| ANSI Function | F88 |
| Std. Strike Type | ANSI Strike |
|
Std. Latch Backset Dim |
2-3/4 In. |
| Std. Latch Number | 13-247 |
| Rose/Escutcheon Design | 3-7/16" Rose Diameter |
| Rose/Escutcheon Dimensions | 3-7/16" |
| Door Thickness | 1-5/8 In. to 2-1/8 In. |
| Latch Bore Diameter | 1 In. |
| Bore Hole Diameter | 2-1/8 In. |
| Function Family | Vestibule |
| Function | 60-Vestibule Lock |
