Description

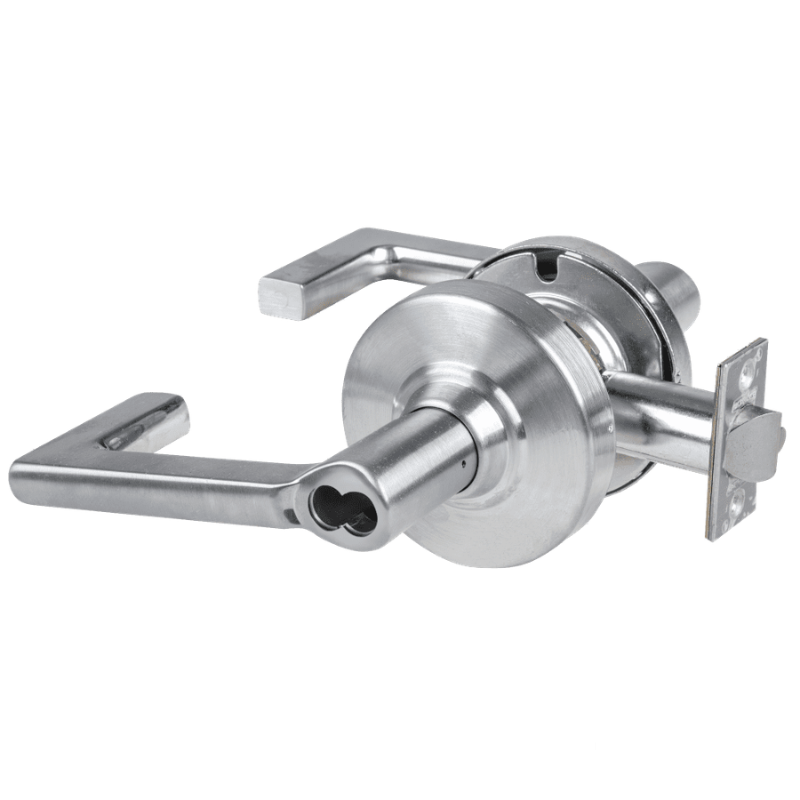

Schlage ND70BD-LON Cylindrical Classroom Lock, Longitude Lever, SFIC Prep Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed
The Schlage ND70BD-LON Cylindrical Classroom Lock with Longitude Lever is a heavy-duty Grade 1 lock built for demanding commercial openings. This cylindrical classroom lock is supplied in SFIC prep less core configuration, making it ready for a small format interchangeable core supplied separately. It is specified with a 2-3/4 inch backset and a 4-7/8 inch strike for standard commercial door preparations. The non handed design simplifies installation and stocking, while the ND Series construction delivers the strength, durability, and consistent performance expected from Schlage in schools, offices, and institutional applications.
Features
- ND70BD-LON is a Schlage cylindrical classroom lock designed for commercial-duty applications.
- Longitude lever trim provides a modern lever design within the Schlage ND Series.
- SFIC prep less core configuration is prepared for a small format interchangeable core that is not included.
- 2-3/4 inch backset supports common commercial door and frame preparations.
- 4-7/8 inch strike is included for compatible frame installations.
- Grade 1 construction meets high-performance commercial lock requirements.
- Non handed design allows installation on either right-hand or left-hand doors.
Functional Details
This classroom function allows the outside lever to be locked or unlocked by key while the inside lever remains free for immediate egress at all times. It is a common choice for classrooms and other spaces where controlled exterior access and safe interior exit are both required.
- Latchbolt operated by lever from either side except when outside lever is locked by key from inside or outside.
- Inside lever always free for immediate egress.
- Inside push button disengages outside lever until unlocked by key or by turning inside lever.
Included Components
This lock is supplied as a Schlage ND70BD-LON cylindrical lockset with Longitude lever trim, SFIC prep less core chassis, 2-3/4 inch backset, and 4-7/8 inch strike. The small format interchangeable core is not included.
Product Specifications
| Manufacturer | Schlage |
| Series | ND Series |
| Model | ND70BD-LON |
| Product Type | Cylindrical Classroom Lock |
| Lever Design | Longitude Lever |
| Core Preparation | SFIC Prep Less Core |
| Handing | Non Handed |
| Grade | Grade 1 |
| ANSI Number | F109 |
| UL Listing Type | UL listed for 3-hour fire door |
| Unit of Measure | Each |
| Origin | Made in U.S.A. |
| BAA Qualified | Yes |
| Limited Warranty | 10 Year Mechanical Warranty, 3 Year Electro Mechanical Warranty |
| Strike | 4-7/8 Inch Strike |
| Backset | 2-3/4 Inch Backset |
Technical Specifications
| Backset | 2-3/4 in |
| Strike Length | 4-7/8 in |
| Door Thickness | 1-3/8 in to 2 in |
| Cross Bore | 2-1/8 in |
| Edge Bore | 1 in |
| Latch Front | 1-1/8 in x 2-1/4 in |
| Strike Dimensions | 1-1/4 in x 4-7/8 in |
| Latch Throw | 1/2 in |
| Cylinder Type | SFIC prep less core |
| Function | ND70BD classroom security |
| Handing | Non handed |
| Grade | ANSI/BHMA A156.2 Series 4000, Grade 1 |
| Fire Rating | 3 hour |
| Cycle Testing | 3,100,000 cycles |
| Lever Style | Longitude (LON) |
