Description

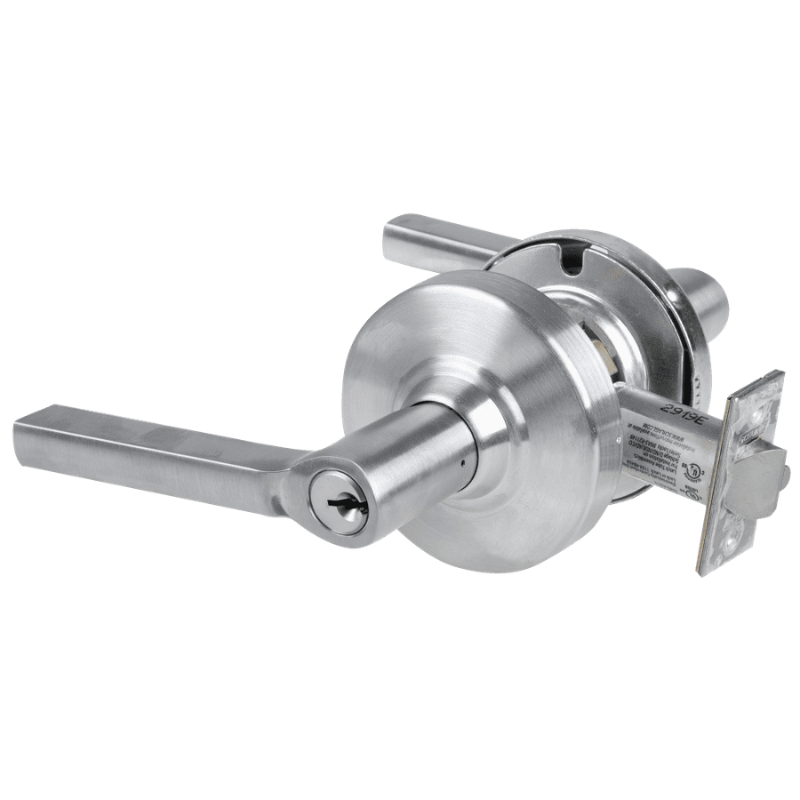

Schlage ND70PD-LAT Cylindrical Classroom Lock, Latitude Lever, Schlage "C", Keyed Different, [2] Change Keys, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed
The Schlage ND70PD-LAT Cylindrical Classroom Lock with Latitude Lever is a heavy-duty Grade 1 cylindrical lock built for high-traffic commercial openings that require dependable classroom security and long service life. This Schlage "C" keyway configuration is keyed different and includes [2] change keys for individual keying convenience. The lock is supplied with a 2-3/4 inch backset and a 4-7/8 inch strike, and its non handed design helps simplify installation and field preparation. As part of the Schlage ND Series, the ND70PD-LAT combines strong mechanical performance, classroom function control, and the clean modern look of the Latitude lever.
Features
- ND70PD-LAT cylindrical classroom lock function is designed for classroom and institutional openings where outside access must be controlled by key.
- Latitude lever trim provides a modern straight-lever design suited for commercial applications.
- Schlage "C" keyway supports standard Schlage cylinder keying requirements.
- Keyed different configuration provides a unique key combination for the lock.
- Includes [2] change keys for immediate operation and key control.
- Supplied with a 2-3/4 inch backset for standard commercial door preparation.
- Includes a 4-7/8 inch strike for compatible frame installation.
- Grade 1 construction meets the highest ANSI/BHMA grade for cylindrical locks.
- Non handed design allows installation on either right-hand or left-hand doors.
Functional Details
This classroom function lock allows the outside lever to be locked or unlocked by key while the inside lever remains free for immediate egress at all times. It is commonly used on classroom, faculty, and similar doors where authorized staff need key control from the corridor side without restricting exit from the room.
- Outside lever locked and unlocked by key from outside.
- Inside lever always unlocked for immediate egress.
Included Components
This configuration includes the Schlage ND70PD-LAT cylindrical classroom lock, Latitude lever trim, Schlage "C" keyway cylinder keyed different, [2] change keys, a 2-3/4 inch backset latch arrangement, and a 4-7/8 inch strike.
Product Specifications
| Manufacturer | Schlage |
|---|---|
| Series | ND Series |
| Model | ND70PD-LAT |
| Product Type | Cylindrical Classroom Lock |
| Lever Design | Latitude Lever |
| Keyway | Schlage "C" |
| Keying | Keyed Different |
| Included Keys | [2] Change Keys |
| Handing | Non Handed |
| Grade | Grade 1 |
| ANSI Number | F84 |
| UL Listing Type | UL listed for 3-hour fire door |
| Unit of Measure | Each |
| Origin | Made in USA of domestic and imported materials |
| BAA Qualified | Yes |
| Limited Warranty | 10-year mechanical warranty, 3-year electro-mechanical warranty where applicable, 1-year finish warranty |
Technical Specifications
| Backset | 2-3/4 inch |
|---|---|
| Strike | 4-7/8 inch |
| Latch Front | 1-1/8 inch x 2-1/4 inch |
| Door Thickness | 1-5/8 inch to 2-1/8 inch |
| Cross Bore | 2-1/8 inch |
| Edge Bore | 1 inch |
| Cylinder Type | Conventional cylinder |
| Handing | Non handed |
| Function | Classroom |
| ANSI/BHMA Grade | Grade 1 |
| ANSI Function Number | F84 |
| Fire Rating | 3 hour |
| Cycle Testing | 3,100,000 cycles |
| Latch Throw | 1/2 inch |
| Lever Style | Latitude |
