Description

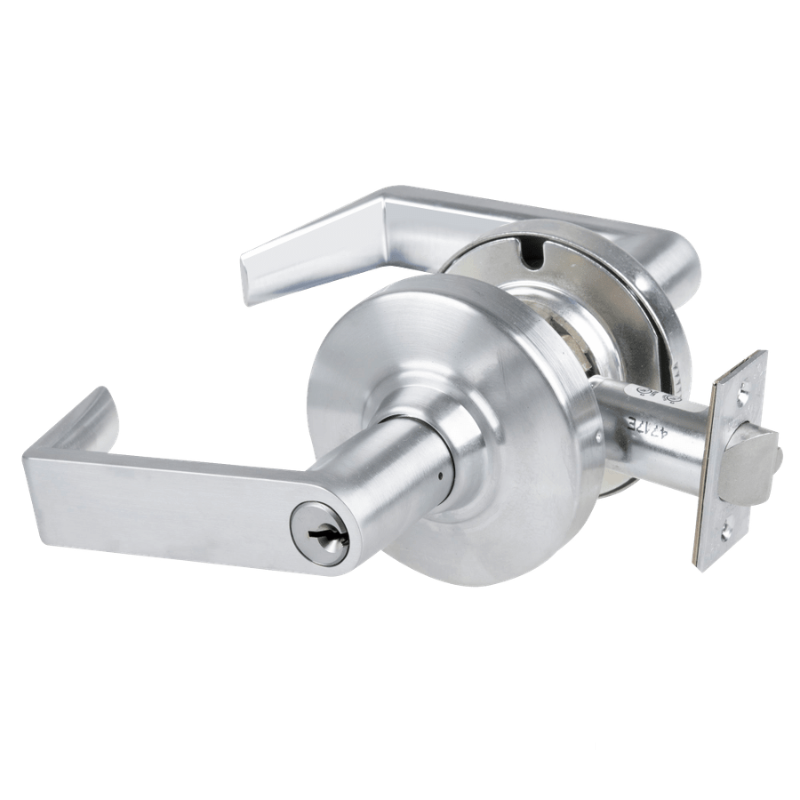

Schlage ND70PD-RHO Cylindrical Classroom Lock, Rhodes Lever, Schlage "C", Keyed Different, [2] Change Keys, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed
The Schlage ND70PD-RHO Cylindrical Classroom Lock with Rhodes lever is a heavy-duty Grade 1 cylindrical lock built for demanding commercial openings. This ND70PD-RHO configuration features the Schlage "C" keyway, keyed different operation, and includes [2] change keys for classroom security and key control. It is supplied with a 2-3/4 inch backset and a 4-7/8 inch strike to fit standard commercial door preparations. Designed as a non handed lock, it simplifies installation while maintaining the strength, durability, and reliable performance expected from the Schlage ND Series in schools, offices, and institutional facilities.
Features
- ND70PD-RHO classroom function cylindrical lock is designed for commercial applications requiring controlled outside access.
- Rhodes lever trim provides a clean, modern lever design within the Schlage ND Series.
- Schlage "C" keyway is supplied keyed different for individual keying security.
- Includes [2] change keys for immediate keying setup and day-to-day operation.
- 2-3/4 inch backset supports standard commercial door preparations.
- 4-7/8 inch strike is included for compatible frame installation.
- Grade 1 construction meets high-performance commercial hardware requirements.
- Non handed design allows installation on either right-hand or left-hand doors.
Functional Details
This classroom lock function allows the outside lever to be locked or unlocked by key, while the inside lever remains free for safe egress at all times. It is commonly used in schools and other institutional settings where staff need the ability to secure the outside lever without restricting exit from inside the room.
- Outside lever locked and unlocked by key. Inside lever always unlocked.
Included Components
This Schlage ND70PD-RHO lock is supplied with the Rhodes lever, Schlage "C" keyway cylinder keyed different, [2] change keys, a 2-3/4 inch backset latch, and a 4-7/8 inch strike. Its non handed design helps streamline field installation.
Product Specifications
| Manufacturer | Schlage |
| Series | ND Series |
| Model | ND70PD-RHO |
| Product Type | Cylindrical Classroom Lock |
| Lever Design | Rhodes Lever |
| Keyway | Schlage "C" |
| Keying | Keyed Different |
| Included Keys | [2] Change Keys |
| Backset | 2-3/4 Inch |
| Strike | 4-7/8 Inch Strike |
| Grade | Grade 1 |
| Handing | Non Handed |
| ANSI Number | F84 |
| UL Listing Type | UL listed for 3-hour fire door |
| Origin | Made in USA or Mexico of U.S. and/or imported parts |
| Unit of Measure | Each |
| BAA Qualified | Yes |
| Limited Warranty | 10 Year Mechanical Warranty, 3 Year Electro Mechanical Warranty |
Technical Specifications
| Function | ND70PD Classroom |
| ANSI Function Number | F84 |
| Grade | ANSI/BHMA A156.2, Series 4000, Grade 1 |
| Backset | 2-3/4 in |
| Strike Size | 4-7/8 in |
| Door Thickness | 1-3/8 in to 2-1/8 in standard |
| Cross Bore | 2-1/8 in |
| Edge Bore | 1 in |
| Latch Front | 1-1/8 in x 2-1/4 in |
| Strike Dimensions | 1-1/4 in x 4-7/8 in |
| Cylinder Type | 6-pin conventional cylinder |
| Keyway | Schlage "C" |
| Handing | Non handed |
| Fire Rating | 3 hour |
| Cycle Testing | 3,100,000 cycles |
