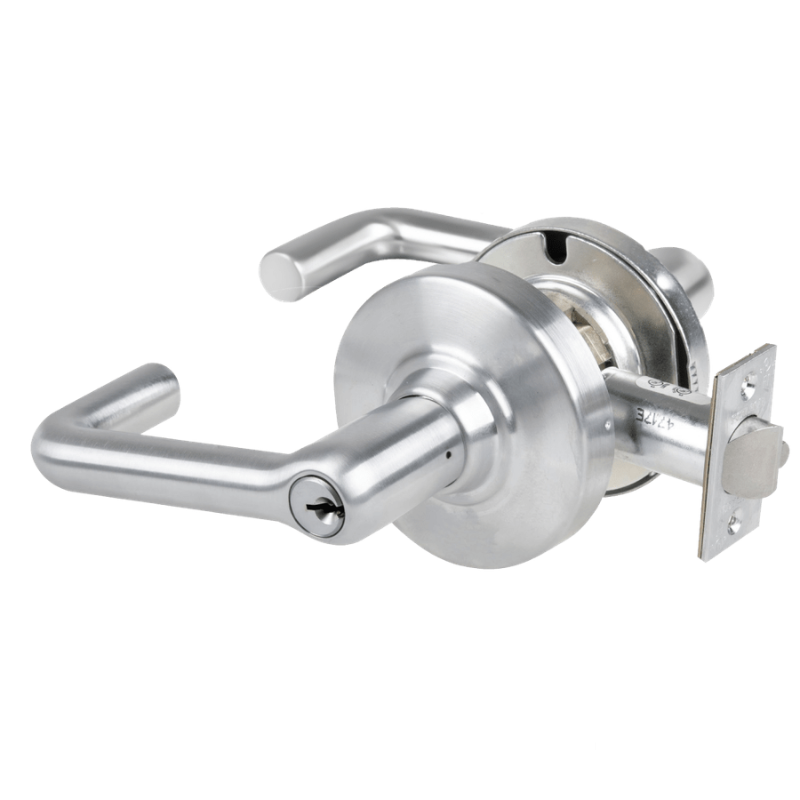

Schlage ND70PD-TLR Cylindrical Classroom Lock, Tubular Lever, Schlage "C", Keyed Different, [2] Change Keys, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed

The Schlage ND70PD-TLR Cylindrical Classroom Lock is a heavy-duty Grade 1 lock built for high-traffic openings that require dependable classroom security and long service life. This lock features the Tubular Lever design, a Schlage "C" keyway, and is supplied Keyed Different with [2] Change Keys for individual keying convenience. It is configured with a 2-3/4 inch backset and a 4-7/8 inch strike, making it suitable for standard commercial door preparations. The ND70PD-TLR is also Non Handed for easier installation and field flexibility, while the ND Series platform is engineered for strength, durability, and consistent performance.

Features

• ND70PD-TLR cylindrical classroom lock function provides controlled classroom access with outside key operation and inside free egress.

• Tubular Lever trim offers a familiar lever design suited for commercial applications.

• Schlage "C" keyway is included for standard Schlage keying compatibility.

• Keyed Different configuration provides a unique key combination for the lock.

• Supplied with [2] Change Keys.

• 2-3/4 inch backset supports the specified latch configuration.

• 4-7/8 inch strike is included for compatible frame preparation.

• Grade 1 construction is designed for demanding commercial use.

• Non Handed design allows installation on either right-hand or left-hand doors.

Functional Details

The ND70PD classroom function is designed for educational and commercial openings where the outside lever must be lockable by key while the inside lever always allows free exit. This function helps maintain security from the corridor side without restricting egress from inside the room.

• Outside lever locked or unlocked by key from outside.

• Inside lever always unlocked.

Included Components

This Schlage ND70PD-TLR Cylindrical Classroom Lock is supplied with a Schlage "C" keyway, keyed different cylinder, [2] change keys, a 2-3/4 inch backset latch, and a 4-7/8 inch strike. Its non handed design helps simplify ordering and installation.
