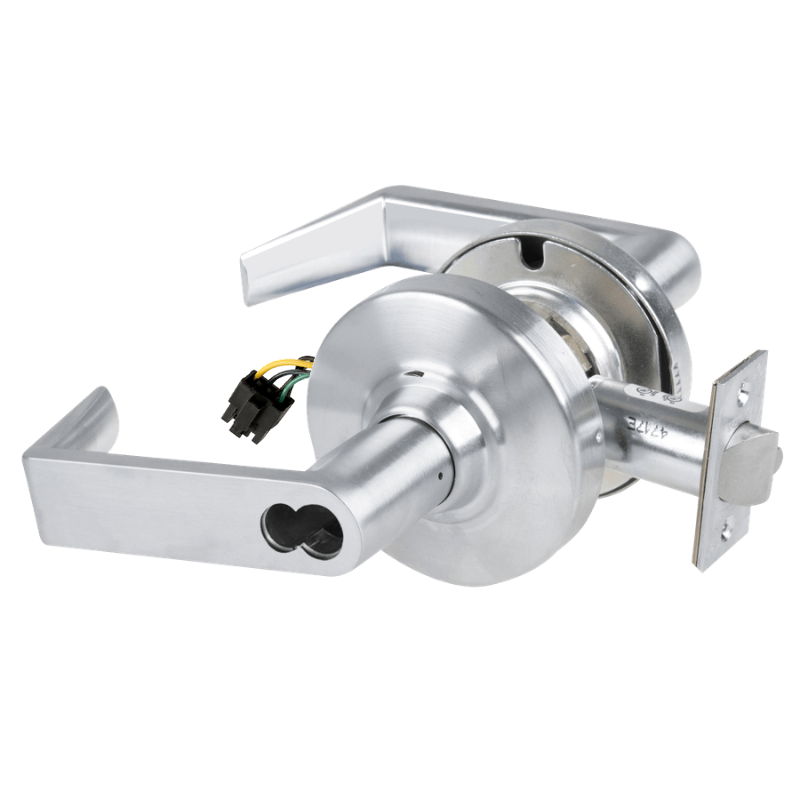

Schlage ND80-BD-EU-RHO-RX Cylindrical ELectrified Storeroom Lock, Rhodes Lever, Request to Exit, 12-24V DC, Fail Secure, SFIC Prep Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed

The Schlage ND80-BD-EU-RHO-RX Cylindrical ELectrified Storeroom Lock is a heavy-duty Grade 1 solution built for commercial openings that require dependable access control and egress monitoring. This configuration includes the Rhodes lever design, Request to Exit capability, 12-24V DC operation, and fail secure functionality for controlled entry. It is supplied in an SFIC prep less core format, with a 2-3/4 inch backset and a 4-7/8 inch strike to support standard commercial door prep. As a non handed lock in the Schlage ND Series, it offers flexible installation, strong durability, and electrified storeroom security for demanding institutional, retail, and office applications.

Features

• ND80-BD-EU-RHO-RX is an electrified storeroom lock designed for controlled access on commercial cylindrical lock applications.
• The Rhodes lever trim provides a clean, modern lever design within the Schlage ND Series platform.
• Request to Exit monitoring supports integration with access control and security systems.
• The lock operates on 12-24V DC power for wiring flexibility in low-voltage electrified openings.
• Fail secure operation keeps the outside lever locked during power loss while maintaining free egress from the inside.
• The SFIC prep less core configuration is prepared for a small format interchangeable core supplied separately.
• A 2-3/4 inch backset supports standard commercial door preparation requirements.
• The 4-7/8 inch strike is included for compatible frame preparation.
• Grade 1 construction provides the highest ANSI/BHMA performance classification for cylindrical locks.
• The non handed design allows installation on either right-hand or left-hand doors.

Functional Details

This electrified storeroom function is designed for openings where the outside lever remains secured and access is controlled electrically, while the inside lever always allows immediate egress. In this fail secure configuration, the lock stays locked from the outside when power is removed. The RX request to exit feature signals system activity when the inside lever is operated, making it useful for monitored access control openings.

• Outside lever locked by toggle or key. Inside lever always unlocked.
• Fail secure.
• RX switch monitors inside lever operation.
• 12 or 24VDC.

Included Components

This Schlage ND80-BD-EU-RHO-RX lock is configured with the Rhodes lever, SFIC prep less core chassis preparation, 2-3/4 inch backset, and 4-7/8 inch strike. The small format interchangeable core is not included.
