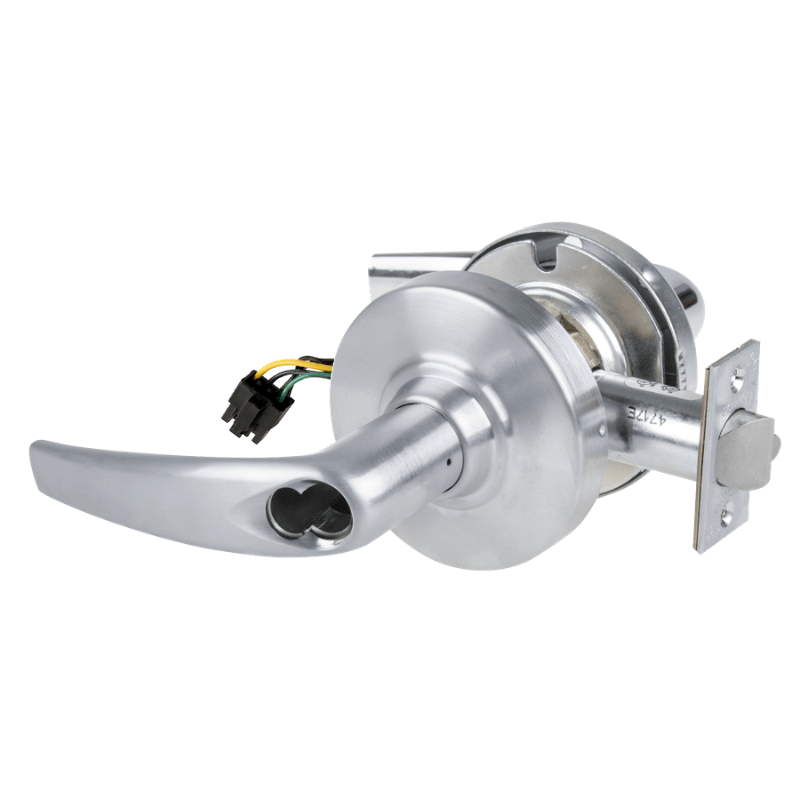

Schlage ND80BD-ATH-RX Cylindrical Storeroom Lock, Athens Lever, Request to Exit, SFIC Prep Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed

The Schlage ND80BD-ATH-RX Cylindrical Storeroom Lock is a heavy-duty Grade 1 lock built for commercial openings that need dependable security and exit monitoring. This configuration features the Athens lever, Request to Exit capability, and SFIC prep less core for small format interchangeable core systems. It is supplied with a 2-3/4 inch backset and a 4-7/8 inch strike, and its non handed design helps simplify installation and field preparation. As part of the Schlage ND Series, the ND80BD-ATH-RX combines proven cylindrical lock performance with the durability and function required for demanding storeroom applications.

Features

• ND80BD storeroom function provides a cylindrical lock configuration suited for secured commercial storeroom openings.
• Athens lever trim offers a clean, modern lever design used across Schlage ND Series applications.
• Request to Exit monitoring adds switch-based signaling for access control and egress integration.
• SFIC prep less core is prepared for a small format interchangeable core and is supplied without the core.
• The 2-3/4 inch backset fits standard commercial door preparations requiring the longer backset option.
• The 4-7/8 inch strike is included for proper frame alignment and latch engagement.
• Grade 1 construction meets the highest ANSI/BHMA grade for cylindrical locks.
• Non handed design allows installation on either right-hand or left-hand doors.

Functional Details

The ND80BD storeroom function keeps the outside lever rigid at all times, with entrance by key only, while the inside lever remains free for immediate egress. In this RX configuration, the lock also provides a Request to Exit signal when the inside lever is operated, making it suitable for monitored doors tied into access control systems.

• Outside lever is fixed.
• Latchbolt operated by key in outside lever or by inside lever.
• Inside lever always unlocked.
• RX - Request-to-exit switch monitors inside lever operation.

Included Components

This Schlage ND80BD-ATH-RX lock includes the cylindrical lock body, Athens lever trim, SFIC prep less core configuration, 2-3/4 inch backset, and 4-7/8 inch strike. The interchangeable core is not included.
