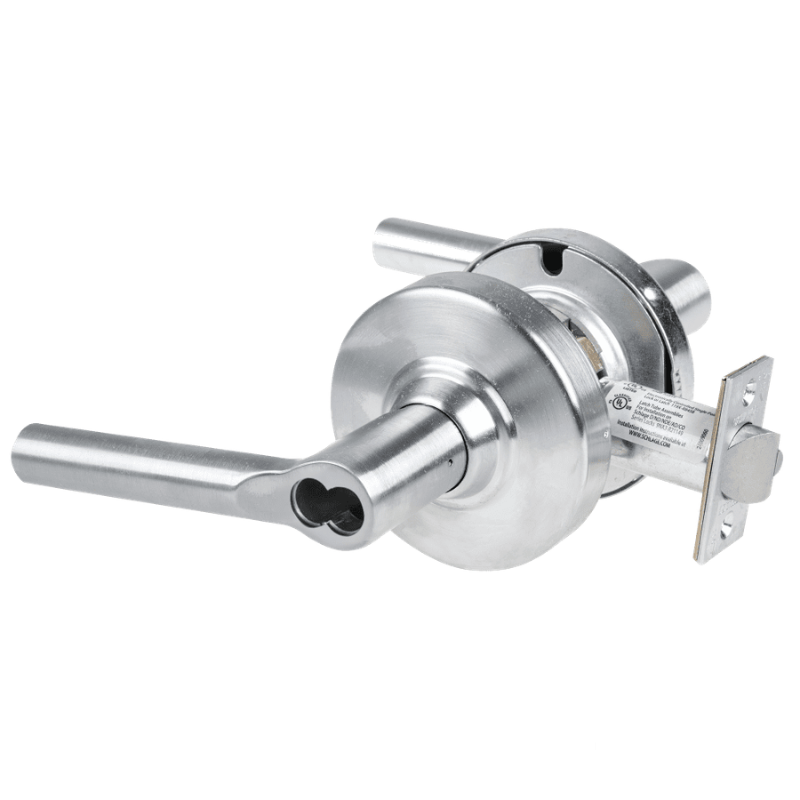

Schlage ND80BD-BRW Cylindrical Storeroom Lock, Broadway Lever, SFIC Prep Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed
The Schlage ND80BD-BRW Cylindrical Storeroom Lock combines heavy-duty Grade 1 performance with the clean look of the Broadway lever for demanding commercial openings. This ND80BD function lock is built as a cylindrical storeroom lock with SFIC prep less core, making it ready for small format interchangeable core applications while allowing core selection separately. It is configured with a 2-3/4 inch backset, a 4-7/8 inch strike, and a non handed design for easier installation across right- or left-hand doors. As part of the Schlage ND Series, it is engineered for strength, durability, and dependable access control in high-traffic environments.
Features
- ND80BD storeroom function provides secure outside access control for commercial openings.
- Broadway lever design offers a modern straight lever style used in the BRW trim configuration.
- SFIC prep less core chassis is prepared for a small format interchangeable core, with the core not included.
- 2-3/4 inch backset fits doors requiring the longer standard commercial latch dimension.
- 4-7/8 inch strike provides the specified frame strike size for this lock configuration.
- Grade 1 construction meets the highest ANSI/BHMA performance grade for cylindrical locks.
- Non handed design allows installation on either right-hand or left-hand doors.
Functional Details
The ND80BD storeroom function keeps the outside lever rigid at all times, requiring a key for entry from the exterior while allowing free egress from the inside. This function is commonly used where security is needed on the outside but occupants must always be able to exit without restriction.
- Outside lever rigid.
- Entrance by key only.
- Inside lever always unlocked.
Included Components
This lock is supplied as an SFIC prep less core cylindrical lockset with Broadway lever trim, a 2-3/4 inch backset latch, and a 4-7/8 inch strike. The interchangeable core is not included.
Product Specifications
| Manufacturer | Schlage |
|---|---|
| Series | ND Series |
| Model | ND80BD-BRW |
| Lock Type | Cylindrical Lock |
| Function | Storeroom |
| Lever Design | Broadway Lever |
| Keying Prep | SFIC Prep Less Core |
| Handing | Non Handed |
| Grade | ANSI/BHMA Grade 1 |
| ANSI Number | F86 |
| UL Listing Type | UL listed for 3-hour fire door |
| Unit of Measure | Each |
| Origin | Made in USA with domestic and foreign content |
| BAA Qualified | Yes |
| Limited Warranty | 10-year limited mechanical warranty, 3-year limited electro mechanical warranty |
Technical Specifications
| Backset | 2-3/4 inch |
|---|---|
| Strike Size | 4-7/8 inch |
| Door Thickness Range | 1-3/8 inch to 2-1/8 inch |
| Crossbore | 2-1/8 inch |
| Edge Bore | 1 inch |
| Latch Front | 1-1/8 inch x 2-1/4 inch |
| Strike Dimension | 1-1/4 inch x 4-7/8 inch |
| Fire Rating | 3 hour |
| Cycle Test | 3,100,000 cycles |
| Lever Projection | 2-13/16 inch |
| Lever Length | 4-7/8 inch |
| Rose Diameter | 3-7/16 inch |
| Non Handed | Yes |
| Cylinder Prep | Small format interchangeable core prep |
