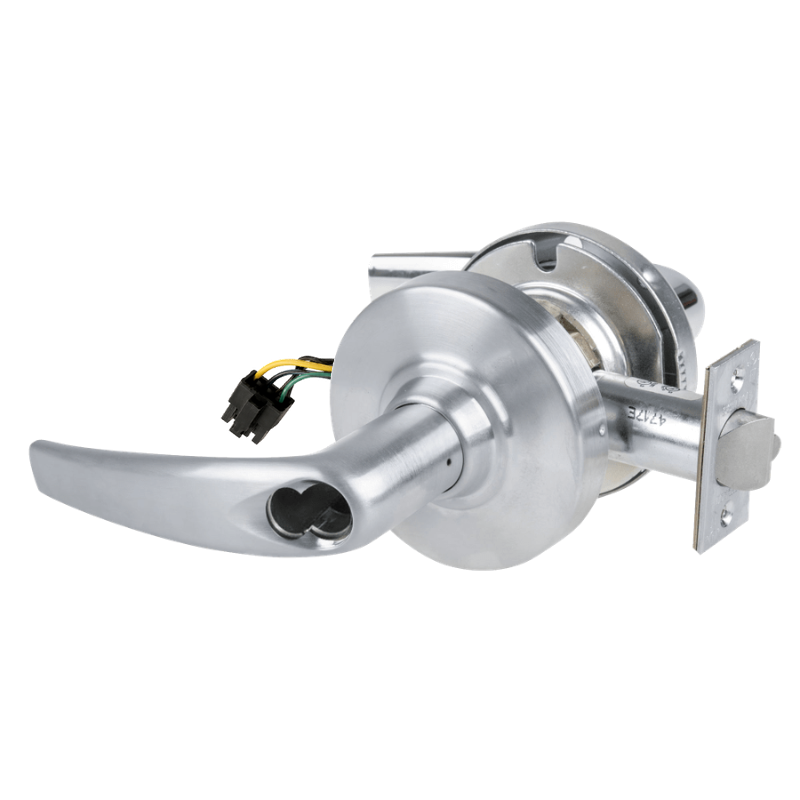

Schlage ND80BD-EL-ATH Cylindrical Electrified Storeroom Lock, Athens Lever, 12-24V VDC, Fail Safe, SFIC Prep Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed

The Schlage ND80BD-EL-ATH Cylindrical Electrified Storeroom Lock combines heavy-duty Grade 1 performance with the convenience of electrified access control in a storeroom function. This lock features the Athens lever design, 12-24V VDC operation, and fail safe functionality for applications that require the lever to unlock when power is applied. Built with SFIC prep less core construction, it is ready to accept a small format interchangeable core supplied separately. The lock includes a 2-3/4 inch backset, a 4-7/8 inch strike, and a non handed design that simplifies installation while delivering the durability and security expected from Schlage ND Series cylindrical locks.

Features

• ND80BD-EL electrified storeroom lock function supports controlled access for secured openings.
• Athens lever trim provides a clean, modern lever style from the Schlage ND Series.
• 12-24V VDC operation offers flexibility for low-voltage electrified door hardware systems.
• Fail safe operation unlocks the lever when power is applied for controlled egress and access applications.
• SFIC prep less core configuration is prepared for a small format interchangeable core, which is supplied separately.
• 2-3/4 inch backset is suited for standard commercial door preparations requiring the longer backset option.
• 4-7/8 inch strike is included for compatible frame preparation.
• Grade 1 construction meets high-use commercial performance requirements.
• Non handed design allows installation on either right-hand or left-hand doors.

Functional Details

The ND80BD-EL electrified storeroom function is designed for access-controlled openings where the outside lever operation is managed electrically. In fail safe mode, the outside lever is locked when power is off and unlocked when power is on, while the inside lever remains free for egress. This makes it well suited for commercial applications that need remote release capability with dependable mechanical security.

• Outside lever is locked until energized.
• Inside lever always free for immediate egress.
• Fail safe.
• Wired through latch.
• Operates on 12 or 24VDC.

Included Components

This lock is supplied with a 2-3/4 inch backset and a 4-7/8 inch strike. The SFIC prep less core configuration is prepared to accept a small format interchangeable core, but the core is not included.
