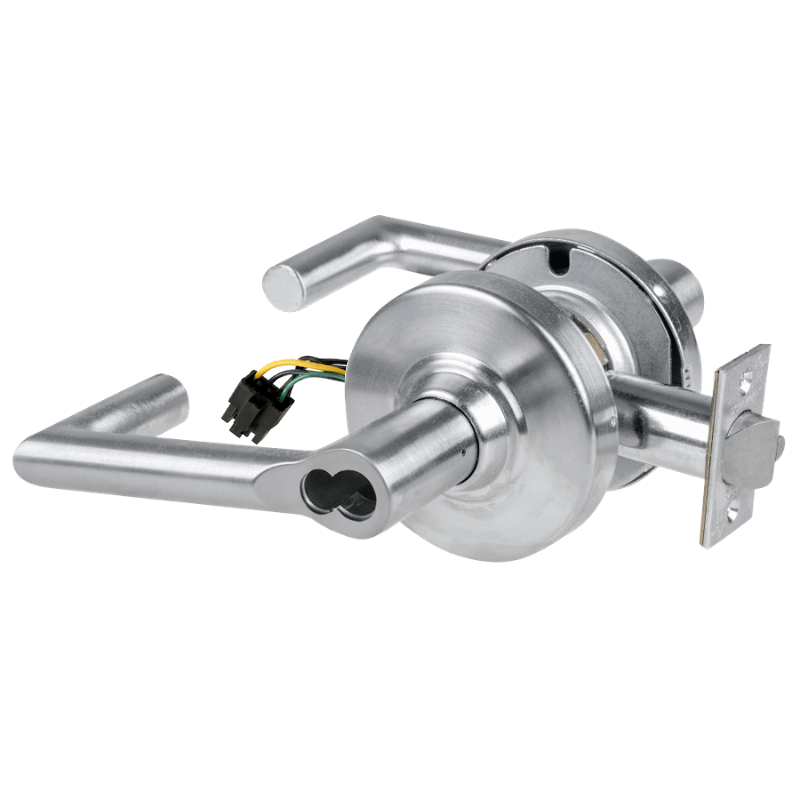

Schlage ND80BD-EL-BRK Cylindrical Electrified Storeroom Lock, Boardwalk Lever, 12-24V VDC, Fail Safe, SFIC Prep Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed

The Schlage ND80BD-EL-BRK Cylindrical Electrified Storeroom Lock is a heavy-duty Grade 1 lockset built for high-traffic commercial openings that require dependable access control. This configuration features the Boardwalk lever, 12-24V VDC operation, and fail safe functionality for electrified locking applications. It is supplied with SFIC prep less core construction for use with a small format interchangeable core, along with a 2-3/4 inch backset and 4-7/8 inch strike. The non handed design helps simplify installation and field preparation, while Schlage ND Series construction delivers the strength and durability expected for demanding institutional, retail, and commercial environments.

Features

• ND80BD-EL function provides a cylindrical electrified storeroom lock for controlled commercial access applications.
• Boardwalk lever trim offers a modern lever design used within the Schlage ND Series.
• 12-24V VDC operation supports low-voltage electrified hardware installations.
• Fail safe operation unlocks when power is interrupted for applications requiring free access upon power loss.
• SFIC prep less core configuration is prepared for a small format interchangeable core and is supplied less core.
• The 2-3/4 inch backset fits doors requiring the longer standard commercial backset.
• A 4-7/8 inch strike is included for compatible frame preparation.
• Grade 1 construction meets the highest ANSI/BHMA residential and commercial performance classification listed for this series.
• Non handed design allows installation on either right-hand or left-hand doors.

Functional Details

The ND80BD-EL electrified storeroom function is designed for access-controlled openings where the outside lever is electrically controlled and the inside lever allows free egress. In fail safe mode, the outside lever is unlocked when power is removed, making it suitable for openings that must permit access during a power loss.

• Outside lever is normally locked.
• Inside lever always allows immediate egress.
• Fail safe: outside lever is unlocked when power is off.
• Latchbolt operated by lever from either side when outside lever is electrically unlocked.

Included Components

This Schlage ND80BD-EL-BRK lock is supplied with the Boardwalk lever trim, SFIC prep less core chassis, 2-3/4 inch backset, and 4-7/8 inch strike. The cylinder core is not included.
