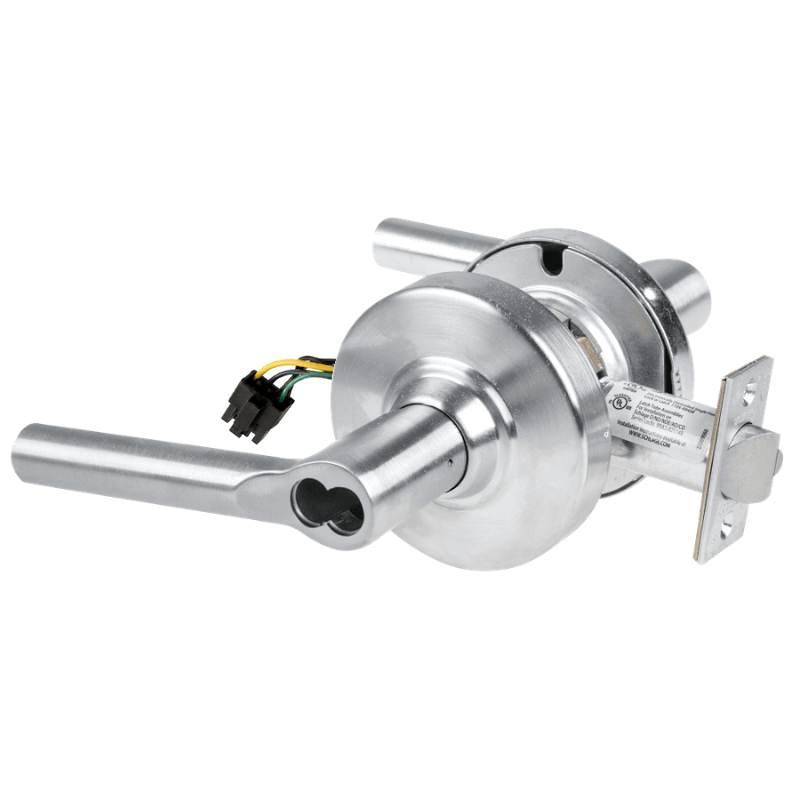

Schlage ND80BD-EL-BRW Cylindrical Electrified Storeroom Lock, Broadway Lever, 12-24V VDC, Fail Safe, SFIC Prep Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed

The Schlage ND80BD-EL-BRW Cylindrical Electrified Storeroom Lock is a heavy-duty Grade 1 cylindrical lock built for high-traffic commercial openings that require dependable access control. This electrified storeroom function features the Broadway lever design, operates on 12-24V VDC, and is configured fail safe for controlled egress and entry applications. It is supplied with SFIC prep less core construction for small format interchangeable core compatibility, along with a 2-3/4 inch backset and 4-7/8 inch strike. The non handed design simplifies installation, while Schlage ND Series construction delivers the strength, security, and durability expected in demanding institutional, retail, and commercial environments.

Features

• ND80BD-EL electrified storeroom lock function supports access control applications with fail safe operation.
• Broadway lever trim provides a clean, modern lever design for commercial door openings.
• 12-24V VDC input offers flexible low-voltage compatibility.
• SFIC prep less core configuration is prepared for a small format interchangeable core, with no core included.
• 2-3/4 inch backset fits standard commercial door preparations requiring the extended backset option.
• 4-7/8 inch strike is included for proper frame engagement.
• Grade 1 construction meets ANSI/BHMA standards for heavy-duty commercial performance.
• Non handed design allows installation on either right-hand or left-hand doors.
• Cylindrical chassis design supports durability and serviceability in high-use applications.

Functional Details

This electrified storeroom lock is designed for controlled access doors where remote unlocking is needed. In the fail safe configuration, power is required to keep the outside lever locked, and loss of power releases the outside lever for access. The inside lever remains free for egress, consistent with storeroom-style operation.

• Outside lever is locked and unlocked by key. Inside lever always unlocked.
• Fail safe.
• 12 or 24 VDC.
• Open lever momentary switch available.
• Request-to-exit switch available.

Included Components

This lock is supplied as a Schlage ND Series cylindrical electrified lockset with Broadway lever trim, SFIC prep less core configuration, 2-3/4 inch backset, and 4-7/8 inch strike. The interchangeable core is not included.
