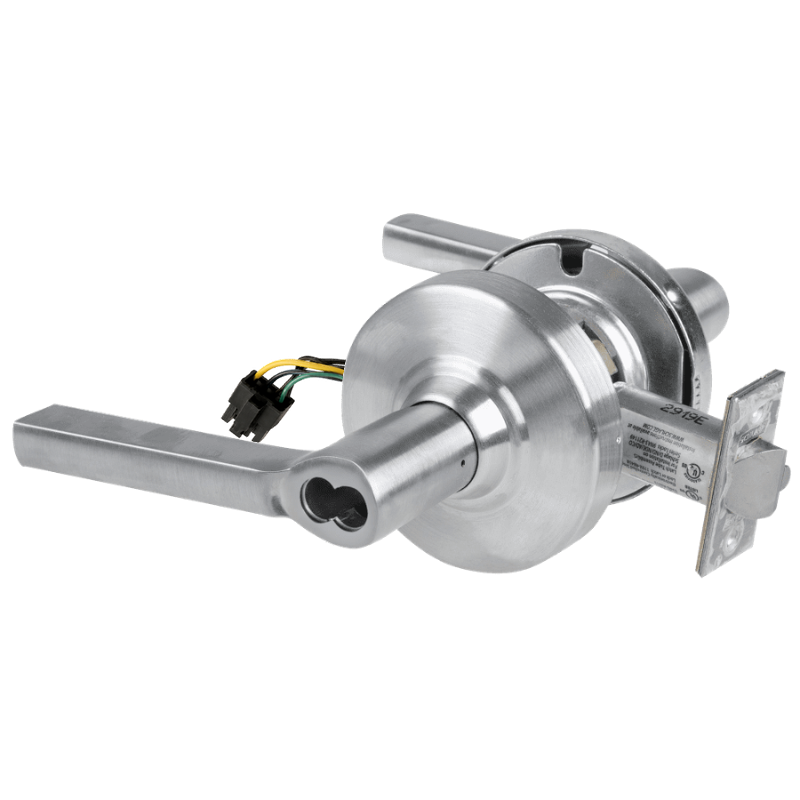

Schlage ND80BD-EL-LAT Cylindrical Electrified Storeroom Lock, Latitude Lever, 12-24V VDC, Fail Safe, SFIC Prep Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed

The Schlage ND80BD-EL-LAT Cylindrical Electrified Storeroom Lock combines heavy-duty Grade 1 performance with electric access control flexibility for commercial openings. This lock features the Latitude lever design, 12-24V VDC operation, and a fail safe electrified storeroom function for controlled entry applications. It is supplied with SFIC prep less core construction, a 2-3/4 inch backset, and a 4-7/8 inch strike to support standard commercial door prep requirements. Built as a non handed lock, the ND80BD-EL-LAT offers installation convenience while delivering the strength, durability, and security expected from the Schlage ND Series cylindrical lock platform.

Features

• ND80BD-EL-LAT electrified cylindrical storeroom lock supports access control applications with fail safe operation.
• Latitude lever trim provides a modern lever design on the Schlage ND Series platform.
• Operates on 12-24V VDC power for low-voltage electrified locking applications.
• Fail safe function unlocks when power is removed for life-safety sensitive openings.
• SFIC prep less core configuration is prepared for a small format interchangeable core supplied separately.
• Includes a 2-3/4 inch backset for standard commercial door preparation.
• Supplied with a 4-7/8 inch strike for compatible frame installation.
• Grade 1 construction is built for high-use commercial and institutional environments.
• Non handed design allows field installation on either right-hand or left-hand doors.

Functional Details

The ND80BD-EL-LAT uses an electrified storeroom function designed for controlled access openings that require remote release capability. In fail safe mode, the outside lever remains locked during normal powered operation and releases when power is interrupted, making it suitable for applications where the door must unlock upon loss of power. The non handed chassis also simplifies installation and field coordination.

• Electrically unlocks outside lever.
• Fail safe.
• 12 or 24 VDC.
• Outside lever is normally locked until electrically unlocked.
• Inside lever always free for immediate egress.
• Non-handed.

Included Components

This Schlage ND80BD-EL-LAT lock is furnished as an SFIC prep less core cylindrical lock with a Latitude lever, 2-3/4 inch backset, and 4-7/8 inch strike. The small format interchangeable core is not included.
