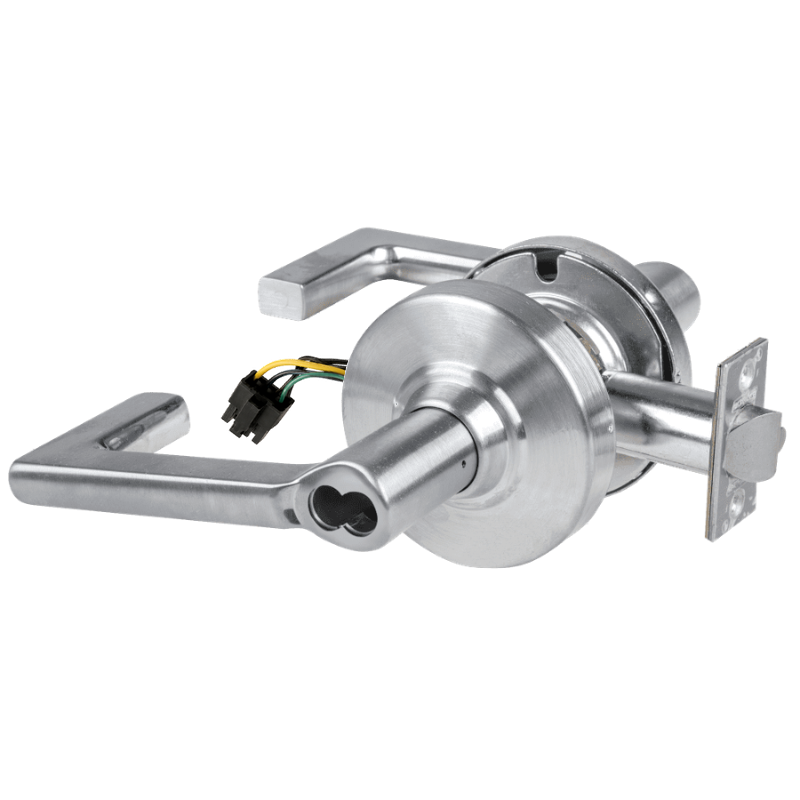

Schlage ND80BD-EL-LON Cylindrical Electrified Storeroom Lock, Longitude Lever, 12-24V VDC, Fail Safe, SFIC Prep Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed

The Schlage ND80BD-EL-LON Cylindrical Electrified Storeroom Lock is a heavy-duty Grade 1 bored lock built for demanding commercial openings that require dependable access control and durability. This configuration includes the Longitude lever, 12-24V VDC electrified operation, and fail safe functionality for controlled egress and entry integration. It is supplied as SFIC prep less core, making it ready for small format interchangeable core systems, and it is configured with a 2-3/4 inch backset and 4-7/8 inch strike for standard commercial door prep. The non handed design simplifies installation while preserving the strength and performance expected from the Schlage ND Series.

Features

• ND80BD-EL is an electrified cylindrical storeroom lock designed for commercial applications requiring remote access control.
• The Longitude lever provides a modern lever design within the Schlage ND Series platform.
• 12-24V VDC operation supports low-voltage electrified hardware installations.
• Fail safe function unlocks upon loss of power for applications where free access is required during power interruption.
• SFIC prep less core accommodates a small format interchangeable core system while allowing the core to be supplied separately.
• The 2-3/4 inch backset is suited to common commercial door preparations.
• The 4-7/8 inch strike is included for compatible frame preparation.
• Grade 1 construction meets the highest ANSI/BHMA performance grade for cylindrical locks.
• The non handed design allows installation on either right-hand or left-hand doors.

Functional Details

This electrified storeroom function is intended for openings that need outside access controlled by key and electricity while maintaining free egress from the inside. In fail safe mode, the outside lever unlocks when power is interrupted, making it suitable for applications tied to life-safety or access control requirements.

• Outside lever is normally locked by spring-loaded outer spindle.
• Latchbolt retracted by key in outside lever or by inside lever/inside thumbturn.
• Inside lever always free for immediate egress.
• Fail safe: outside lever is unlocked when power is off.

Included Components

This lock is supplied as SFIC prep less core and is prepared to accept a small format interchangeable core that is furnished separately. The listed configuration also includes a 2-3/4 inch backset and 4-7/8 inch strike.
