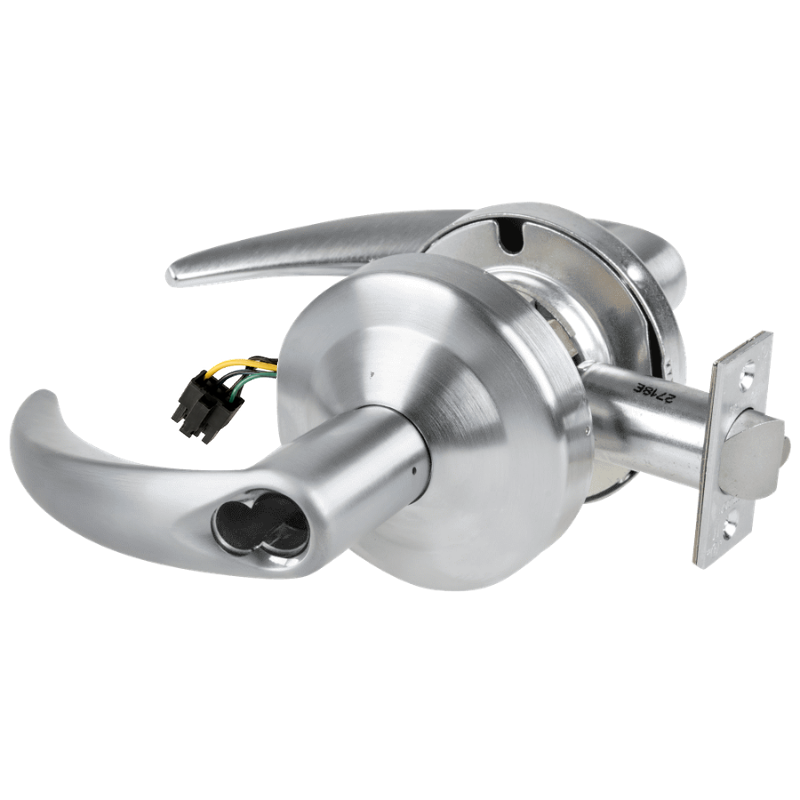

Schlage ND80BD-EL-OME Cylindrical Electrified Storeroom Lock, Omega Lever, 12-24V VDC, Fail Safe, SFIC Prep Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed

The Schlage ND80BD-EL-OME Cylindrical Electrified Storeroom Lock is a heavy-duty Grade 1 bored lock built for demanding commercial openings that require dependable access control and durability. This configuration includes the Omega lever, 12-24V VDC operation, fail safe function, and SFIC prep less core construction for small format interchangeable core compatibility. It is supplied with a 2-3/4 inch backset and a 4-7/8 inch strike, and the non handed design helps simplify installation and field preparation. As part of the Schlage ND Series, the ND80BD-EL-OME combines electrified storeroom security with proven cylindrical lock performance for institutional, retail, and commercial applications.

Features

• ND80BD-EL-OME is a cylindrical electrified storeroom lock designed for commercial access control applications.
• The Omega lever trim provides a clean, familiar lever design for high-traffic openings.
• 12-24V VDC operation supports low-voltage electrified hardware installations.
• The fail safe function unlocks when power is applied according to the electrified storeroom configuration in the ND Series catalog.
• SFIC prep less core construction is prepared for a small format interchangeable core and is supplied less core.
• The 2-3/4 inch backset is suited for standard commercial door preparations requiring the longer backset.
• The 4-7/8 inch strike is included for proper frame alignment and latch engagement.
• Grade 1 construction meets the highest ANSI/BHMA performance grade for cylindrical locks.
• The non handed design allows installation on either right-hand or left-hand doors.

Functional Details

The ND80BD-EL electrified storeroom function is intended for openings where the outside lever trim is controlled electrically while the inside lever remains free for safe egress. In this fail safe configuration, the lock responds to power conditions to manage entry while maintaining the storeroom-style security behavior expected in commercial buildings.

• Outside lever retracts latch by key or by electrical release.
• Inside lever always retracts latch.
• Fail safe.
• 12 or 24VDC.

Included Components

This configuration includes the lock prepared for SFIC less core, the Omega lever trim, a 2-3/4 inch backset, and a 4-7/8 inch strike. Cylinder core is not included.
