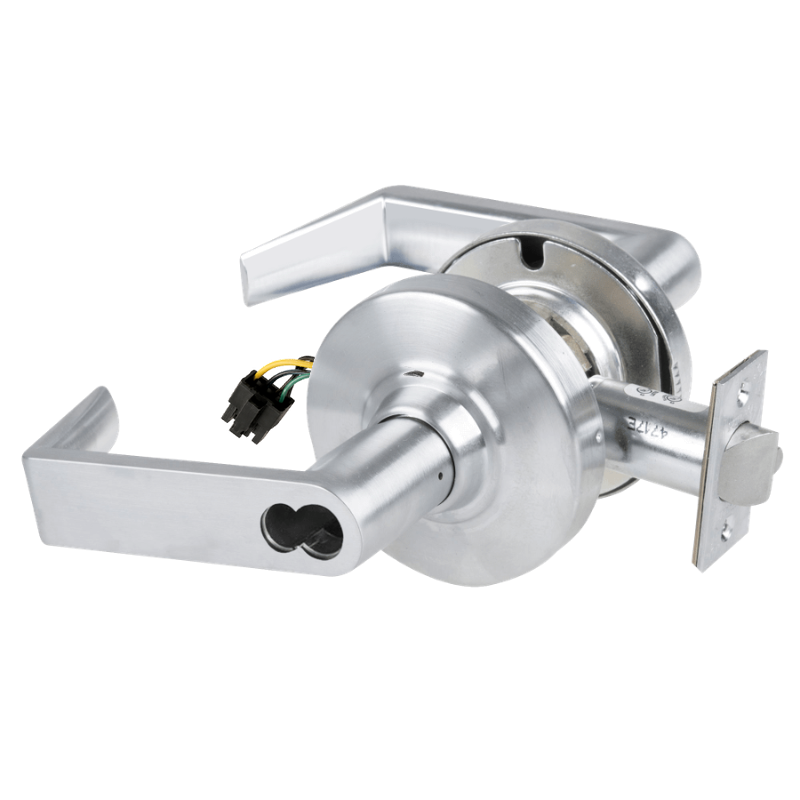

Schlage ND80BD-EL-RHO Cylindrical Electrified Storeroom Lock, Rhodes Lever, 12-24V VDC, Fail Safe, SFIC Prep Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed

The Schlage ND80BD-EL-RHO Cylindrical Electrified Storeroom Lock combines heavy-duty ND Series performance with electrified access control convenience for commercial openings. This Grade 1, non handed lock features the Rhodes lever design, 12-24V VDC operation, and fail safe functionality for controlled egress and entry applications. Built as an ND80BD-EL storeroom function lock, it is supplied with SFIC prep less core construction for small format interchangeable core compatibility, along with a 2-3/4 inch backset and 4-7/8 inch strike. Designed for strength, durability, and reliable operation, this cylindrical lock is well suited for demanding institutional, educational, and commercial environments.

Features

• ND80BD-EL electrified storeroom lock function supports controlled access in commercial applications.
• Rhodes lever trim provides a clean, durable lever design used across Schlage ND Series locks.
• Operates on 12-24V VDC power for electrified opening integration.
• Fail safe operation unlocks upon loss of power for applications requiring this security behavior.
• SFIC prep less core configuration is prepared for a small format interchangeable core and ships without the core.
• Includes a 2-3/4 inch backset for standard commercial door preparation requirements.
• Supplied with a 4-7/8 inch strike for compatible frame installation.
• Grade 1 construction meets high-use commercial durability requirements.
• Non handed design allows installation on either right-hand or left-hand doors.
• Cylindrical chassis construction supports strength, serviceability, and dependable performance.

Functional Details

The ND80BD-EL electrified storeroom function is designed for access control applications where the outside lever is electrically controlled while the inside lever remains free for egress. In fail safe mode, the outside lever is unlocked when power is removed, making it suitable for openings that must release upon power loss. The SFIC prep less core format allows the lock to be used with a small format interchangeable core system once the core is supplied separately.

• Outside lever locked until electrically unlocked.
• Inside lever always free for immediate egress.
• Fail safe: outside lever unlocked when power is off.
• 12 or 24 VDC.

Included Components

This lock is supplied as a cylindrical electrified lockset with Rhodes lever trim, SFIC prep less core preparation, a 2-3/4 inch backset, and a 4-7/8 inch strike. The interchangeable core is not included.
