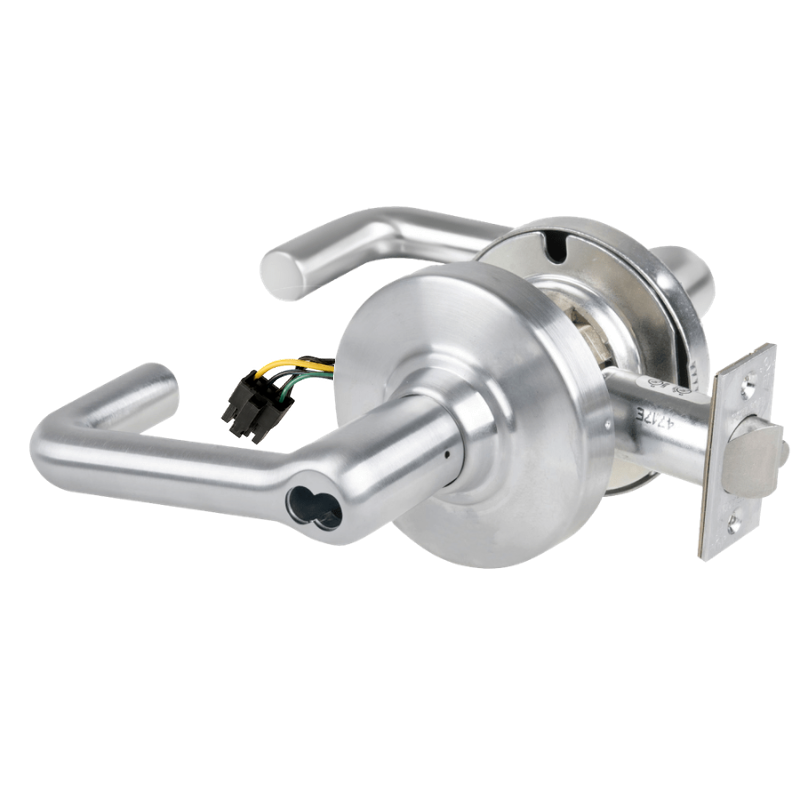

Schlage ND80BD-EL-TLR Cylindrical Electrified Storeroom Lock, Tubular Lever, 12-24V VDC, Fail Safe, SFIC Prep Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed
The Schlage ND80BD-EL-TLR Cylindrical Electrified Storeroom Lock is a heavy-duty Grade 1, non handed lock built for high-traffic commercial openings that need dependable access control. This configuration combines the ND80BD-EL electrified storeroom function with a tubular lever design, 12-24V VDC fail safe operation, and SFIC prep less core construction for small format interchangeable core compatibility. It is supplied with a 2-3/4 inch backset and a 4-7/8 inch strike, making it a practical choice for institutional, retail, and commercial applications where remote release, durability, and consistent performance are required.
Features
- ND80BD-EL electrified storeroom lock function supports controlled access in commercial applications.
- Tubular lever trim provides a familiar cylindrical lockset design for standard door prep.
- 12-24V VDC operation offers wiring flexibility for access control systems.
- Fail safe function unlocks upon power loss for applications requiring egress or safety-based release.
- SFIC prep less core configuration is prepared for a small format interchangeable core and ships without a core.
- 2-3/4 inch backset fits common commercial door preparations.
- 4-7/8 inch strike is included for the specified frame preparation.
- Grade 1 construction meets the highest ANSI/BHMA performance grade for cylindrical locks.
- Non handed design allows installation on either right hand or left hand doors.
Functional Details
The ND80BD-EL electrified storeroom function is designed for access-controlled openings where the outside lever remains secured until electrical power changes the state of the lock. In this fail safe configuration, the outside lever unlocks when power is interrupted, while the inside lever allows free egress at all times. The SFIC prep less core body is ready to accept a compatible small format interchangeable core provided separately.
- Outside lever is normally locked.
- Inside lever always unlocked.
- Outside lever is unlocked by electric power.
- Fail safe locks are unlocked when not energized.
Included Components
This Schlage ND80BD-EL-TLR cylindrical electrified storeroom lock is supplied with a 2-3/4 inch backset latch and a 4-7/8 inch strike. The lock is SFIC prep less core, so the small format interchangeable core is not included.
Product Specifications
| Manufacturer | Schlage |
|---|---|
| Series | ND Series |
| Model | ND80BD-EL-TLR |
| Product Type | Cylindrical Electrified Storeroom Lock |
| Lever Design | Tubular Lever |
| Function | Electrified Storeroom |
| Electrical Input | 12-24V VDC |
| Operation | Fail Safe |
| Core Type | SFIC Prep Less Core |
| Backset | 2-3/4 Inch |
| Strike | 4-7/8 Inch Strike |
| Handing | Non Handed |
| Grade | ANSI/BHMA Grade 1 |
| ANSI Number | F80BD |
| UL Listing Type | UL listed for 3-hour fire door |
| Unit of Measure | Each |
| Origin | Made in Mexico, assembled in the USA |
| BAA Qualified | No |
| Limited Warranty | 10 year mechanical and 3 year electro-mechanical limited warranty |
| SKU | ND-80BD-EL-TLR |
Technical Specifications
| Voltage | 12 or 24 VDC |
|---|---|
| Current Draw | 200 mA at 12 VDC, 100 mA at 24 VDC |
| Function Number | 80BD-EL |
| ANSI Function | F80BD |
| Backset Dimension | 2-3/4 Inch |
| Strike Size | 4-7/8 Inch |
| Door Thickness | 1-3/8 Inch to 2-1/8 Inch |
| Cross Bore | 2-1/8 Inch |
| Edge Bore | 1 Inch |
| Latch Front | 1-1/8 Inch x 2-1/4 Inch |
| Fire Rating | 3 Hour |
| Cycle Testing | 3,100,000 cycles |
| Handing | Non Handed |
| Lever Style | TLR Tubular Lever |
| Core Preparation | SFIC Prep Less Core |
| Lock Chassis | Cylindrical |
| Latch Type | Deadlocking latch |
