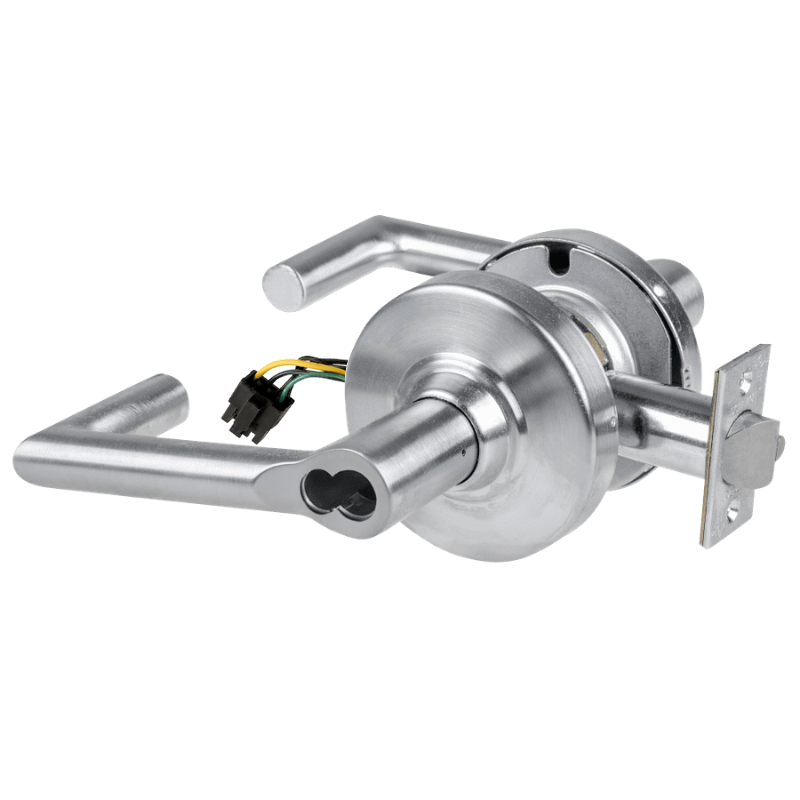

Schlage ND80BD-EU-BRK Cylindrical Electrified Storeroom Lock, Boardwalk Lever, 12-24V VDC, Fail Secure, SFIC Prep Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed

The Schlage ND80BD-EU-BRK Cylindrical Electrified Storeroom Lock combines heavy-duty Grade 1 performance with electric access control convenience for demanding commercial openings. This lock features the Boardwalk lever design, 12-24V VDC operation, and fail secure functionality for controlled entry applications. Built with SFIC prep less core construction, it is prepared for a small format interchangeable core while shipped without the core installed. The lock includes a 2-3/4 inch backset and a 4-7/8 inch strike, and its non handed design helps simplify installation across a range of door configurations. The ND80BD-EU-BRK is part of Schlage’s ND Series cylindrical lock line for high-traffic institutional and commercial use.

Features

• ND80BD-EU-BRK is a Schlage cylindrical electrified storeroom lock designed for commercial access control openings.
• The Boardwalk lever provides the specified lever style for this ND Series configuration.
• 12-24V VDC operation supports low-voltage electrified locking applications.
• Fail secure function keeps the outside lever locked when power is removed.
• SFIC prep less core construction is prepared for a small format interchangeable core and ships without a core.
• A 2-3/4 inch backset is included for the listed door preparation.
• The 4-7/8 inch strike is included for frame installation.
• Grade 1 construction meets heavy-duty commercial performance requirements.
• The non handed design allows the lock to be installed on either right-hand or left-hand doors.

Functional Details

This electrified storeroom function is designed for doors that require remote access control while maintaining secure exterior locking. In fail secure mode, the outside lever remains locked during power loss, while authorized electrical activation unlocks the outside lever for entry. The inside lever remains free for safe egress at all times.

• Outside lever locked by outside key or by rotating inside thumbturn.
• Inside lever always unlocked.
• Outside lever is momentarily unlocked by depressing inside push button or by electrical remote release.
• Inside push button stays depressed only when inside lever is locked by key or thumbturn.

Included Components

This configuration includes the lock prepared for SFIC less core, a 2-3/4 inch backset, and a 4-7/8 inch strike. The interchangeable core is not included.
