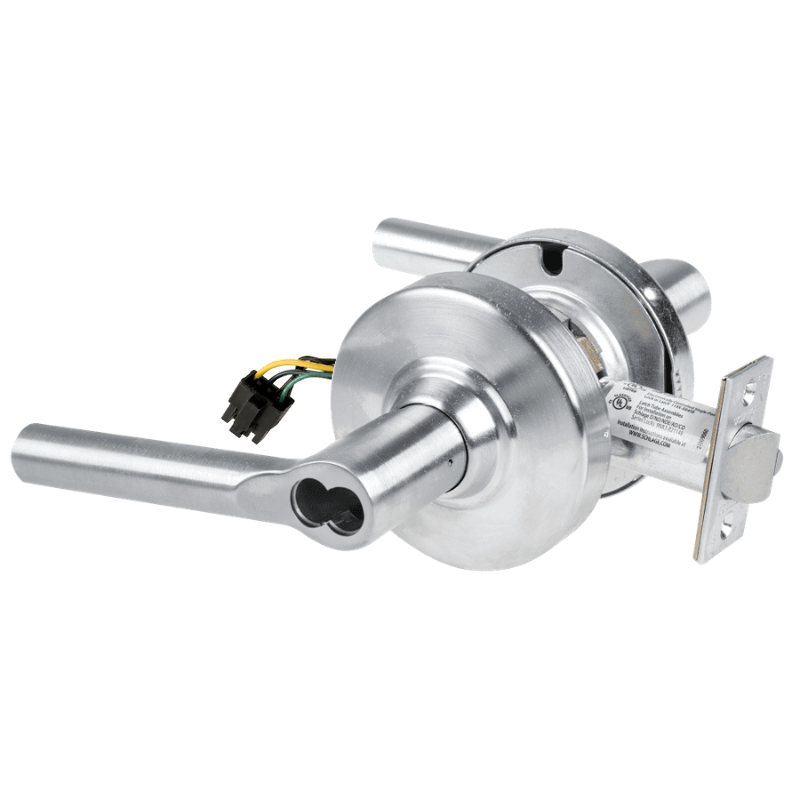

Schlage ND80BD-EU-BRW Cylindrical Electrified Storeroom Lock, Broadway Lever, 12-24V VDC, Fail Secure, SFIC Prep Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed

The Schlage ND80BD-EU-BRW Cylindrical Electrified Storeroom Lock combines Grade 1 durability with electric access control for demanding commercial openings. This cylindrical electrified storeroom lock features the Broadway lever design, operates on 12-24V VDC, and is configured fail secure to keep the outside lever locked during power loss. It is supplied with SFIC prep less core for small format interchangeable core compatibility, along with a 2-3/4 inch backset and 4-7/8 inch strike for proper fit at the door frame. Built as a non handed lock, the Schlage ND80BD-EU-BRW offers flexible installation and dependable performance in high-traffic applications.

Features

• ND80BD-EU is an electrified storeroom function lock designed for controlled access on commercial doors.
• The Broadway lever provides a clean, modern lever style within the Schlage ND Series platform.
• Fail secure operation keeps the outside lever locked when power is removed.
• 12-24V VDC input supports common low-voltage electrified hardware systems.
• SFIC prep less core allows the lock to accept a small format interchangeable core supplied separately.
• The 2-3/4 inch backset fits standard commercial door preparations requiring that dimension.
• A 4-7/8 inch strike is included for frame alignment and latch engagement.
• Grade 1 construction meets heavy-duty performance requirements for institutional and commercial use.
• Non handed design allows installation on either right-hand or left-hand doors.

Functional Details

This electrified storeroom function is designed for doors that need controlled entry from the outside while maintaining free egress from the inside. In fail secure mode, the outside lever remains locked when power is off and is unlocked by electrical activation, while the inside lever stays free for safe exit at all times.

• Outside lever is locked and unlocks by key or by rotating inside lever.
• Inside lever always unlocked.
• Outside lever unlocked by electrical input.
• Outside lever remains locked during power failure.

Included Components

This Schlage ND80BD-EU-BRW lock is provided with SFIC prep less core preparation, a 2-3/4 inch backset, and a 4-7/8 inch strike. The cylinder core is not included and must be supplied separately to complete the SFIC configuration.
