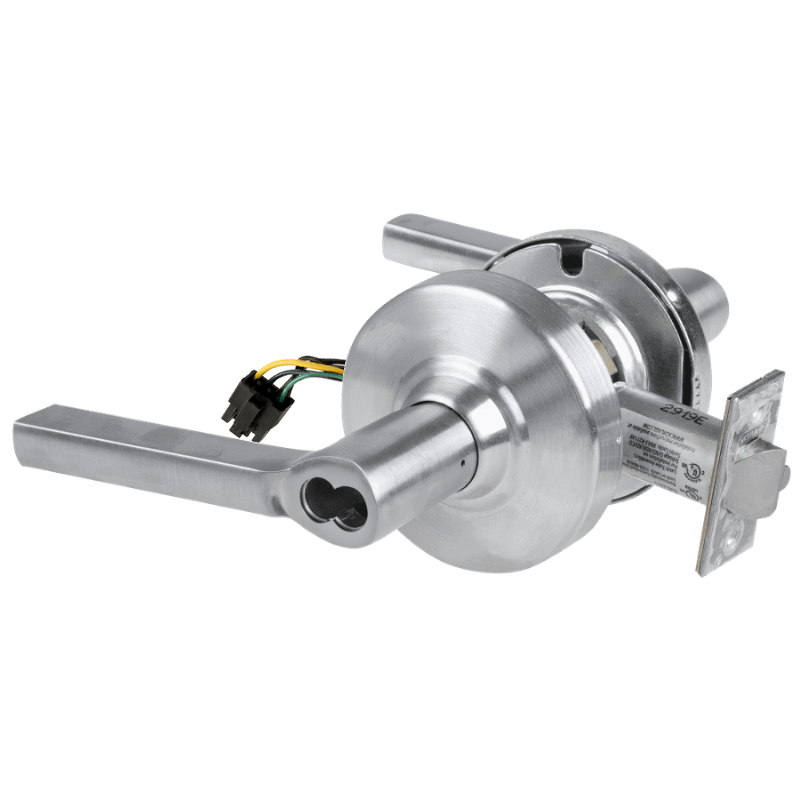

Schlage ND80BD-EU-LAT Cylindrical Electrified Storeroom Lock, Latitude Lever, 12-24V VDC, Fail Secure, SFIC Prep Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed

The Schlage ND80BD-EU-LAT Cylindrical Electrified Storeroom Lock is a heavy-duty Grade 1 solution designed for applications that need dependable access control with mechanical key override. This electrified storeroom lock features the Latitude lever, 12-24V VDC operation, and fail secure functionality so the outside lever remains locked when power is removed. It is supplied as SFIC prep less core for small format interchangeable core compatibility, and includes a 2-3/4 inch backset with a 4-7/8 inch strike for proper door preparation. Built as a non handed lock, the ND80BD-EU-LAT offers installation flexibility with the durability expected from Schlage ND Series cylindrical locks.

Features

• ND80BD-EU-LAT is a Schlage ND Series cylindrical electrified storeroom lock built for controlled access openings.
• The storeroom function provides a secure outside lever with inside free egress.
• Electrified operation supports 12-24V VDC power requirements.
• Fail secure function keeps the outside lever locked when power is off.
• The lock is supplied with a Latitude lever design.
• SFIC prep less core configuration allows use with a small format interchangeable core supplied separately.
• A 2-3/4 inch backset is included for compatible door preparation.
• The package includes a 4-7/8 inch strike.
• Grade 1 construction meets heavy-duty commercial performance requirements.
• Non handed design simplifies installation and field application.

Functional Details

This electrified storeroom function is designed for openings that require remote control of the outside lever while maintaining immediate egress from the inside. In fail secure mode, the outside lever remains locked during a power loss, and electrical power is used to momentarily unlock the lever for authorized entry. The keyed cylinder still provides mechanical control of the outside lever as required.

• Electrically unlocks outside lever.
• Inside lever always unlocked.
• Outside lever locked when power is off.
• Key outside retracts latchbolt.
• Auxiliary latch deadlocks latchbolt.

Included Components

This configuration includes the Schlage ND80BD-EU-LAT lock chassis with Latitude lever trim, SFIC prep less core preparation, a 2-3/4 inch backset, and a 4-7/8 inch strike. The interchangeable core is not included.
