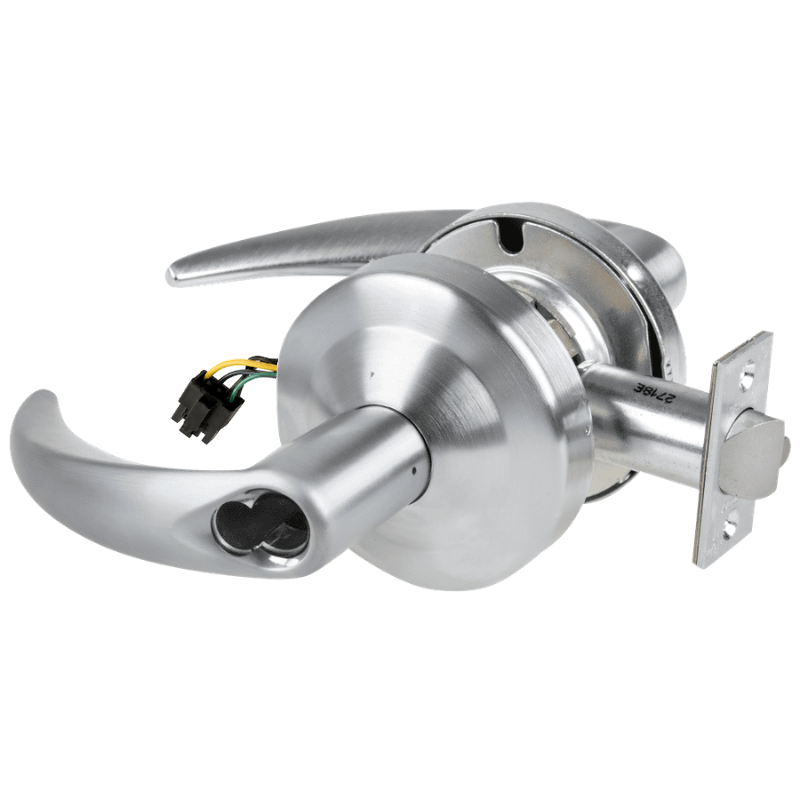

Schlage ND80BD-EU-OME Cylindrical Electrified Storeroom Lock, Omega Lever, 12-24V VDC, Fail Secure, SFIC Prep Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed

The Schlage ND80BD-EU-OME Cylindrical Electrified Storeroom Lock is a heavy-duty Grade 1 lock designed for demanding commercial openings that require controlled access and dependable performance. This electrified storeroom function features the Omega lever, operates on 12-24V VDC, and is configured fail secure for secure remote access control integration. It is supplied with SFIC prep less core construction, a 2-3/4 inch backset, and a 4-7/8 inch strike for standard commercial door prep compatibility. The ND80BD-EU-OME is non handed for easier installation and built on Schlage’s ND Series platform for strength, durability, and consistent operation in high-traffic applications.

Features

• ND80BD-EU-OME electrified storeroom lock function supports access control while maintaining Schlage ND Series cylindrical lock durability.
• Omega lever design provides a commercial-grade lever trim style used across institutional and commercial openings.
• 12-24V VDC operation offers flexible low-voltage compatibility for electrified door hardware systems.
• Fail secure configuration keeps the outside lever locked during power loss for maintained security.
• SFIC prep less core construction is prepared to accept a small format interchangeable core supplied separately.
• 2-3/4 inch backset fits common commercial door preparations requiring the longer backset option.
• 4-7/8 inch strike is included for proper frame alignment and latch engagement.
• Grade 1 construction meets the highest ANSI/BHMA grade for cylindrical locks.
• Non handed design allows installation on either right-hand or left-hand doors.

Functional Details

This electrified storeroom function is intended for openings that need remote release from the secured side while keeping the outside lever rigid when locked. In fail secure mode, the outside lever remains locked if power is interrupted, while authorized electrical input allows access. The inside lever remains free for egress, making this function suitable for security-sensitive commercial applications.

• Outside lever locked and unlocked by key. Inside lever always unlocked.
• Outside lever is unlocked by electric power. Key override standard.
• Fail secure.

Included Components

This lock is supplied with SFIC prep less core preparation, a 2-3/4 inch backset, and a 4-7/8 inch strike. The cylinder core is not included.
